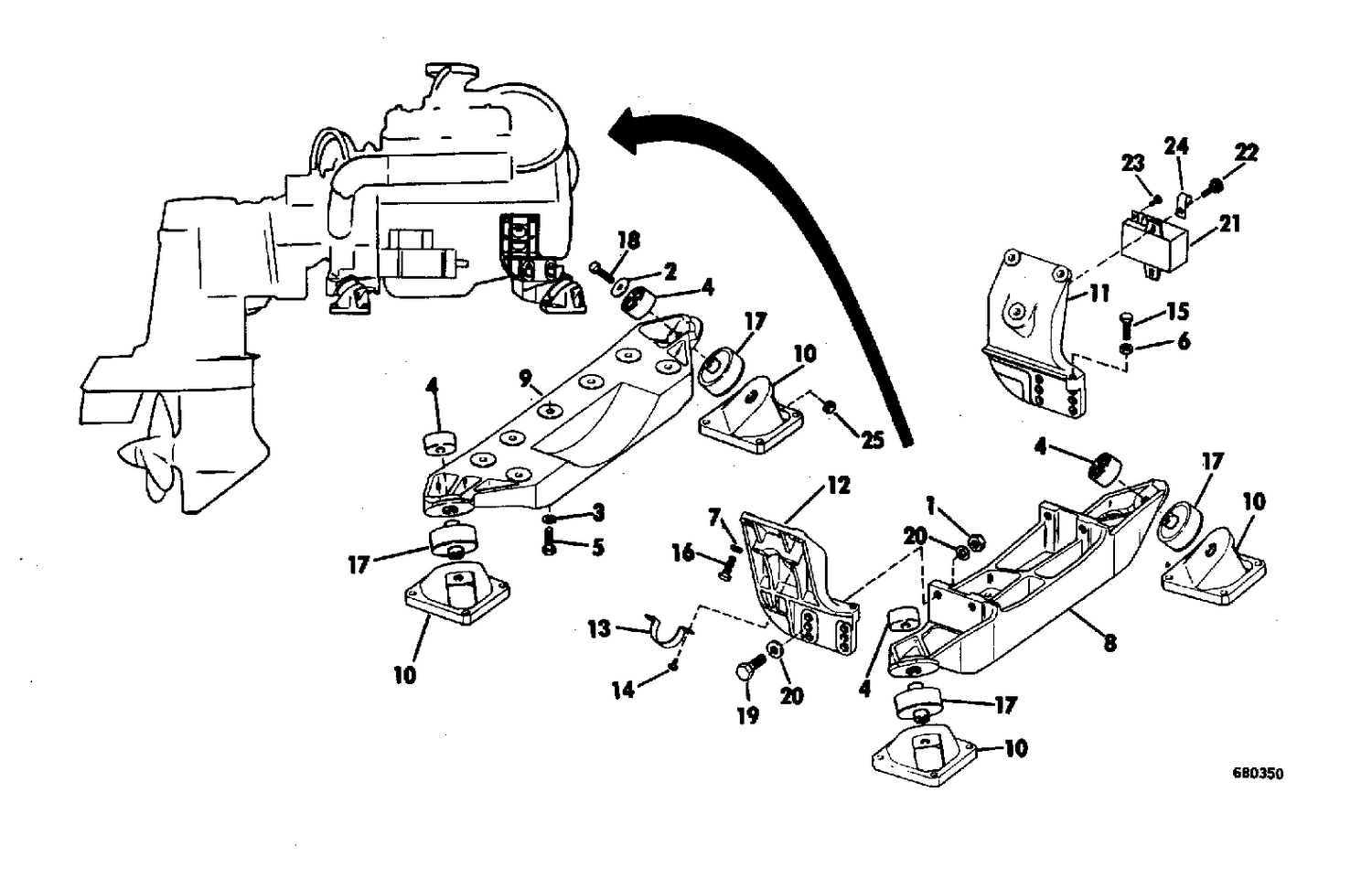

| Ref | Part Number | Description |
|---|
| 1 |
0313650 |
NUT |
| 2 |
0313641 |
WASHER, Rubber mount |
| 3 |
0120177 |
L'WASHER, Alternator to brkt |
| 4 |
0382511 |
RUBBER MOUNT, Top |
| 6 |
0309602 |
LOCK NUT, Steering handle |
| 7 |
0309336 |
L'WASHER, Alternator to bracket |
| 8 |
0313658 |
MOUNT SUPPORT, Lateral, front |
| 9 |
0313657 |
MOUNT SUPPORT, Lateral, rear |
| 10 |
0313649 |
BRACKET |
| 11 |
0313663 |
BRACKET, Port |
| 12 |
0313664 |
BRACKET, Starboard |
| 13 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 14 |
0313311 |
GEAR, Reverse |
| 15 |
0312178 |
SCREW |
| 16 |
0310896 |
SCREW |
| 17 |
0382510 |
RUBBER MOUNT ASSEMBLY |
| 19 |
0313640 |
SCREW, Bracket to mount support |
| 20 |
0312177 |
WASHER, Bracket to mount support |
| 21 |
0379779 |
VOLTAGE REGULATOR |
| 22 |
0307920 |
SCREW |
| 23 |
0303791 |
SCREW |
| 24 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
