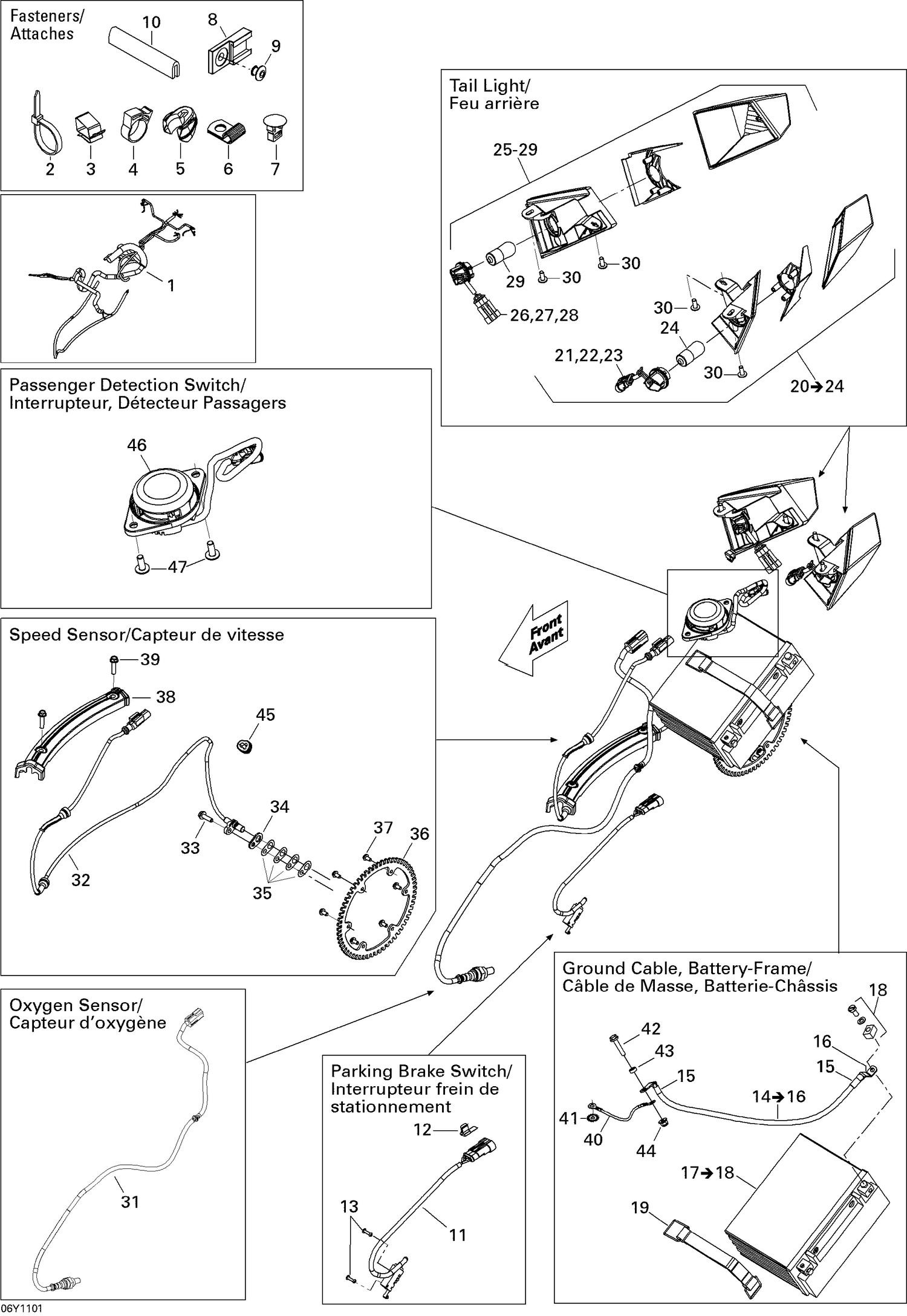

10- Electrical Accessories, Rear SE5
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293750008 | Tie Wrap 368 mm |
| 2 | 414115200 | Tie-Rap 180 mm |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 293650082 | Clamp |
| 5 | 710001452 | WIRE BRACKET - Call your local BRP dealership |
| 6 | 415052400 | Bracket |
| 7 | 293750044 | Tie Rap Mount |
| 8 | 270000141 | Clip |
| 9 | 390402400 | Pop Rivet 3/16" |
| 10 | 219704354 | Trim 1000Mm Long |
| 11 | 710001379 | Brake Pressure Switch Ass'y |
| 12 | 710001343 | Clip |
| 13 | 293150150 | Pop Rivet |
| 15 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 16 | 710000518 | Open Barrel |
| 18 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 19 | 515176044 | Battery Strap |
| 21 | 710000568 | Housing |
| 22 | 409012900 | Male Terminal |
| 23 | 278001013 | Wire Seal |
| 24 | 520000758 | Bulb |
| 26 | 710000568 | Housing |
| 27 | 409012900 | Male Terminal |
| 28 | 278001013 | Wire Seal |
| 29 | 520000758 | Bulb |
| 30 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 31 | 707600557 | Oxygen Sensor |
| 32 | 706202361 | Speed Sensor This part replaces 706200560. |
| 33 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 34 | 710002024 | Shim |
| 35 | 710002023 | Shim |
| 36 | 705600573 | TONE WHEEL - Call your local BRP dealership |
| 37 | 207551034 | SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership |
| 38 | 710001035 | PROTECTOR - Call your local BRP dealership |
| 39 | 250000843 | Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 40 | 710001165 | GROUND HARNESS - Call your local BRP dealership |
| 41 | 250200041 | Lock Washer Serrated M6 |
| 42 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 43 | 293900054 | BUSHING - Call your local BRP dealership |
| 44 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 45 | 293720084 | Grommet |
| 46 | 710008103 | Passenger Detection Switch This part replaces 710001346. |
