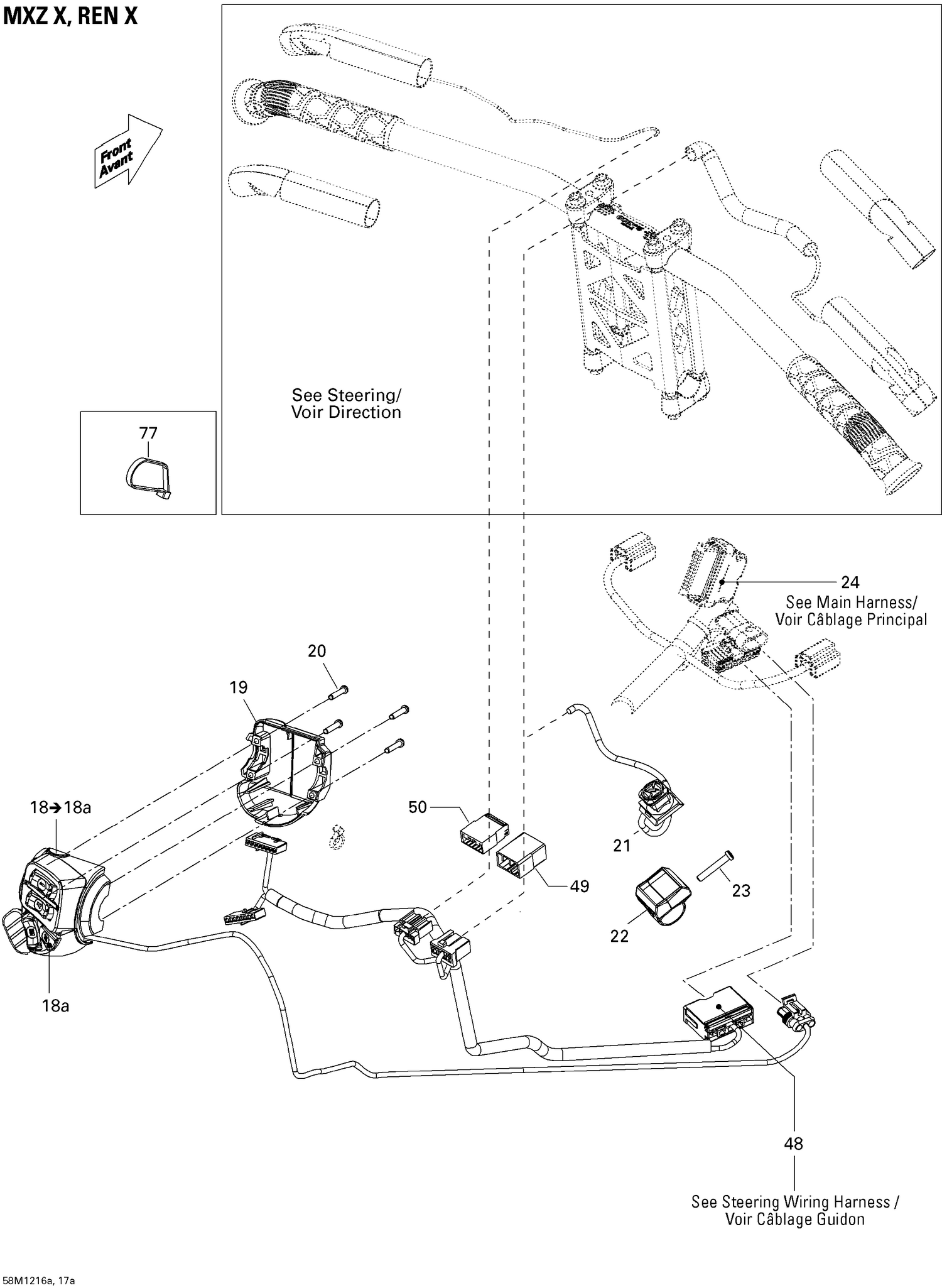

| Ref | Part Number | Description |
|---|
| 18a |
515176088 |
Start/RER Button |
| 19 |
515175926 |
Switch Housing Plate |
| 20 |
250000263 |
Torx Screw #8-18 |
| 21 |
515177362 |
Emergency Stop Switch This part replaces 515177061. |
| 22 |
515177310 |
Emergency Stop Switch Support This part replaces 515176825. |
| 23 |
250000263 |
Torx Screw #8-18 |
| 24 |
Not |
Available As Spare Part - Main Harness Ass'y |
| 48 |
515176868 |
STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 49 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 50 |
515175846 |
Male Terminal Housing, 4 Circuits |
| 77 |
293750001 |
Tie Wrap 94 mm |
| 77 |
293750002 |
Tie Wrap 142 mm |
| 77 |
293750008 |
Tie Wrap 368 mm |
| 77 |
414115200 |
Tie-Rap 180 mm |
