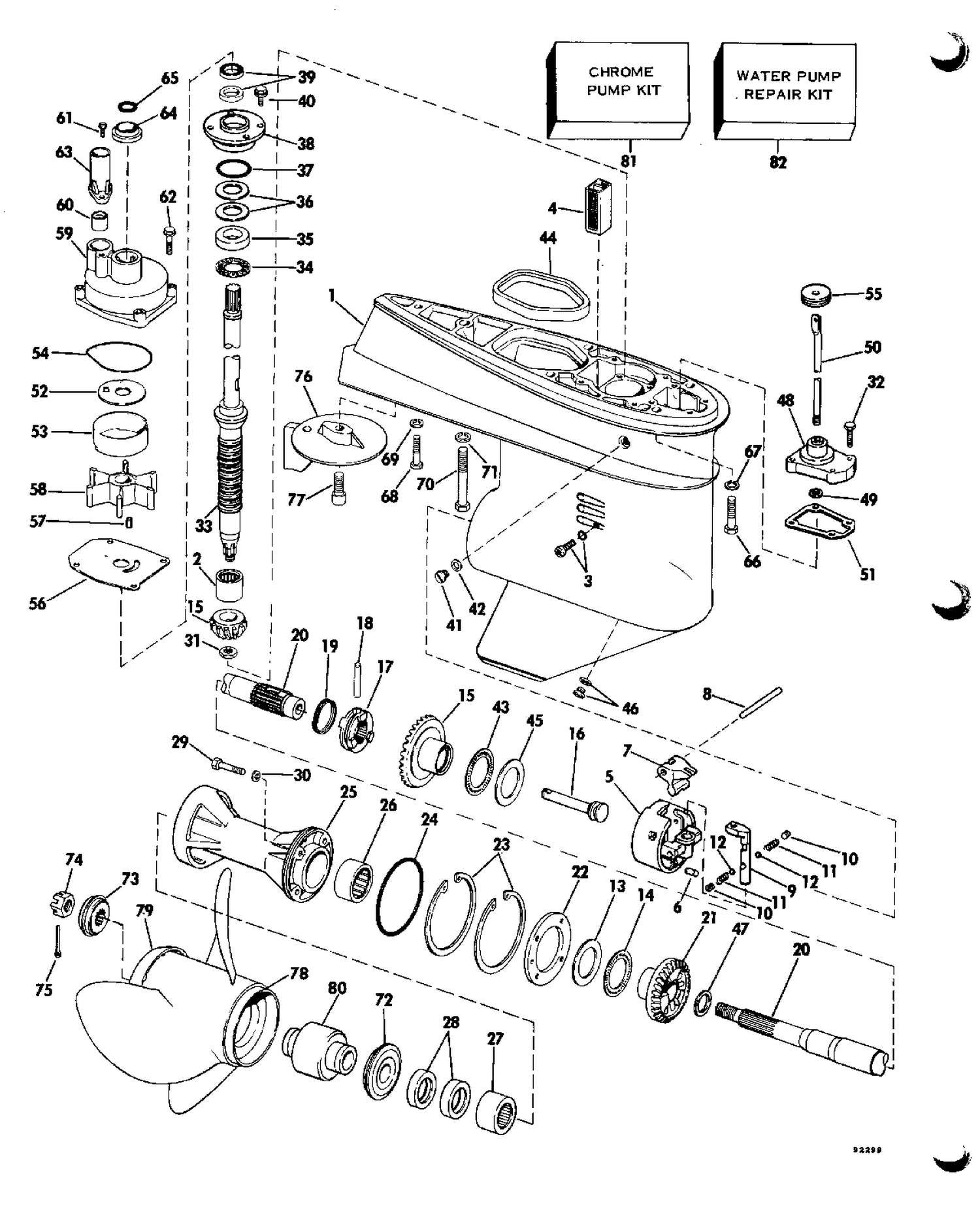

| Ref | Part Number | Description |
|---|
| 1 |
0393752 |
GEARCASE & BEARING ASSY. This part replaces 0385560. |
| 5 |
0387152 |
BEARING HOUSING ASSY |
| 7 |
0317273 |
LEVER, Shift |
| 9 |
0323209 |
DETENT, Shifter |
| 10 |
0317276 |
DETENT, SCREW |
| 16 |
0321934 |
SHAFT, Shift dog |
| 30 |
0317178 |
O RING |
| 32 |
0307151 |
SCREW |
| 33 |
0391378 |
DRIVESHAFT ASSY This part replaces 0389507. |
| 36 |
0317231 |
SHIM, . 002" |
| 37 |
0313754 |
O RING |
| 40 |
0319545 |
VIS, supports de montage supérieurs vers support de direction |
| 45 |
0317165 |
THRUST WASHER, Fwd |
| 50 |
0322893 |
SHIFT ROD, Long |
| 52 |
0321940 |
PLATE |
| 53 |
0324980 |
LINDER, Impeller housing |
| 55 |
0321452 |
GROMMET |
| 57 |
0323950 |
KEY, Drive shaft to impeller |
| 59 |
0432955 |
WATER PUMP REPAIR KIT (includes impeller housing) This part replaces 0390011. |
| 61 |
0319292 |
SCREW, Clamp |
| 67 |
0307708 |
RONDELLE GROWER |
| 68 |
0306503 |
SCREW, Short |
| 70 |
0313697 |
SCR,Grc to hsg.long |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 76 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 77 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0382761 |
PROPELLER ,14 x 11 |
| 78 |
0382765 |
PROPELLER 13 X 19 |
| 78 |
0383160 |
PROPELLER 14 X 19 |
| 78 |
0384136 |
PROPELLER 12-3/4 X 23 |
| 78 |
0388884 |
PROP., 13- 1/2 x 23 - sst-ss |
| 78 |
0389510 |
PROPELLER, 13 * 19 SST |
| 78 |
0389512 |
PRO, 12-3/4 x 21 sst cupped |
| 78 |
0389514 |
PROPELLER 12-3/4 x 23 - SST |
| 78 |
0389788 |
PROPELLER, 12 3/4 x 21 |
| 78 |
0389792 |
PROPELLER 14 x 11 -SST |
| 78 |
0389948 |
PROPELLER, 12-3/4 x 17 - SST |
| 78 |
0389949 |
PROPELLER, 12 3/4 X 15-SST |
| 78 |
0765181 |
PROPELLER This part replaces 0382762. |
| 78 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 78 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 79 |
0314188 |
CONVERGING RING |
| 81 |
0389145 |
CHROME CUP & PLATE KIT |
| 0307853 |
0307853 |
O RING |
| 0389641 |
0396730 |
GEARCASE ASSY. This part replaces 0389641. |
