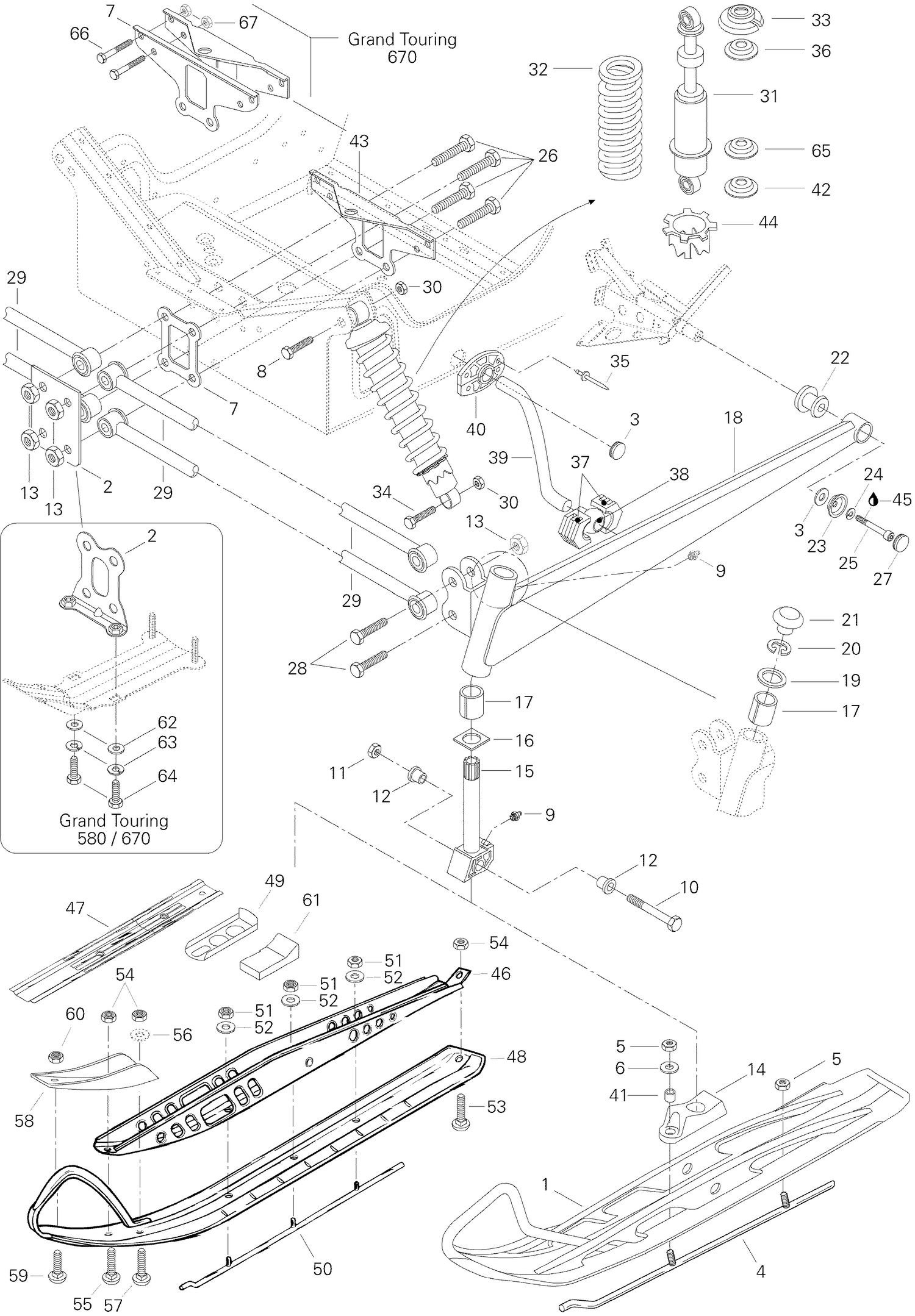

07- Front Suspension And Ski 580

07- Front Suspension And Ski 580

Parts (67)

RefPart NumberDescription
1 XXX Not Available As Spare Parts
2 506122900 Link Plate
3 503146700 WASHER - Call your local BRP dealership
4 XXX Not Available As Spare Parts
5 XXX Not Available As Spare Parts
6 XXX Not Available As Spare Parts
7 506113000 Link Plate
8 207006044 HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065.
9 408200700 Grease Fitting
10 732601176 Hex. Screw M12
11 232521414 NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045.
12 414530600 CUSHION - Call your local BRP dealership
13 232521414 NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045.
14 XXX Not Available As Spare Parts
15 506130900 Ski Leg
16 506081200 Wear Plate
17 572069900 Cushion
18 506127010 RH Swing Arm
18 506127110 LH Swing Arm
19 506080900 Thrust Washer
20 371910400 CIRCLIP - Call your local BRP dealership
21 572079100 CAP - Call your local BRP dealership
22 570062200 DAMPER - Call your local BRP dealership
23 705007171 Cup This part replaces 506115800.
24 234181401 Lock Washer 8 mm This part replaces 224781140.
25 205082544 Socket Head Screw M8 X 25 This part replaces 222982565.
26 222029065 Hex. Screw M12 x 90
27 XXX Not Available As Spare Parts
28 222025075 Hex. Screw M12 x 50
29 580623100 Arm Ass'y
30 233601416 Elastic Locking Nut M10 X 1.5 This part replaces 228501045.
31 414970000 Front Shock
32 414955900 Shock Spring (Green)
33 706200881 Spring Stopper This part replaces 503140600.
34 207005544 Hex. Screw M10 X 55 This part replaces 222005565.
35 390402300 Pop Rivet 3/16"
36 706200785 Cap This part replaces 503141600.
37 572069800 Block Sliding
38 503142200 Ball Joint
39 506112300 Stabilisator Bar
40 572029900 Half-Bushing
41 506117300 BUSHING - Call your local BRP dealership
42 503165100 GUIDE_SPRING - Call your local BRP dealership
43 517254900 Rear Link Plate
44 503169000 Cam
45 293800060 Loctite 243, 10 ml This part replaces 413703000.
46 505062400 Ski Support
47 572077500 Ski Shim
48 572047400 Plastic Ski
49 505065900 Stopper
50 505063620 Carbide Runner
51 233601416 Elastic Locking Nut M10 X 1.5 This part replaces 228501045.
52 224002251 FLAT WASHER - Call your local BRP dealership
53 207782544 Carriage Bolt, M8 X 25 This part replaces 222282565.
54 233281414 Hex. Flange Elastic Nut M8 This part replaces 228781045.
55 207783044 Carriage Bolt M8 X 30 This part replaces 222283065.
56 Not Available As Spare Part - Washer
57 222284065 Carriage Bolt M8 x 40
58 505063700 Ski Reinforcement
59 207762544 Carriage Bolt M6 X 25 This part replaces 222262565.
60 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045.
61 570046800 Ski Stopper
62 234081410 Flat Washer 8 mm This part replaces 224081171.
63 234181401 Lock Washer 8 mm This part replaces 224781140.
64 207182044 Hex. Screw M8 X 20 This part replaces 222082065.
65 XXX Not Available As Spare Parts
66 XXX Not Available As Spare Parts
