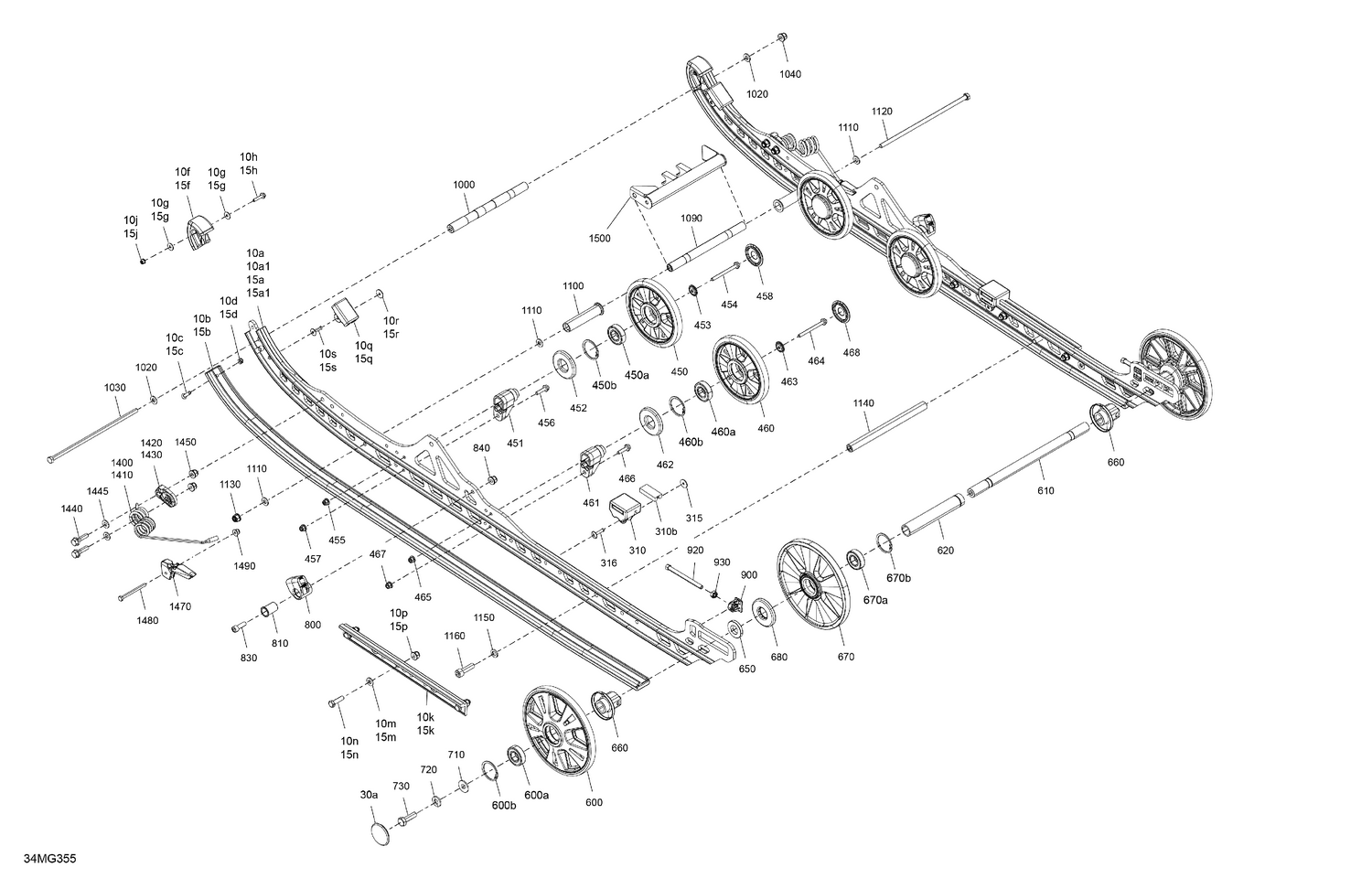

05- Suspension - Rear - Lower Section
Parts (96)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 503198277 | Rail Suspension 146 |
| 10b | 503191499 | Black, Slider 146 |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 10f | 503196872 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 10k | 503195826 | Rail Reinforcement |
| 10m | 503192494 | Washer |
| 10n | 207183054 | Hex. Cap Screw M8 X 30 |
| 10p | 233281466 | Elastic Flange Nut M8 |
| 10q | 503190576 | Rubber Stopper |
| 10r | 503191273 | Washer |
| 10s | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 15a | 503198087 | Hyper Silver, Rail Suspension 146 |
| 15a1 | 503198277 | Rail Suspension 146 |
| 15b | 503191499 | Black, Slider 146 |
| 15c | 208562531 | Phillips Screw M6 X 25 |
| 15d | 232561414 | Elastic Stop Nut M6 |
| 15f | 503196872 | Rail Protector |
| 15g | 250200140 | Washer |
| 15h | 207652544 | Hex. Flange Screw M5 X 25 |
| 15j | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 15k | 503195826 | Rail Reinforcement |
| 15m | 503192494 | Washer |
| 15n | 207183054 | Hex. Cap Screw M8 X 30 |
| 15p | 233281466 | Elastic Flange Nut M8 |
| 15q | 503190576 | Rubber Stopper |
| 15r | 503191273 | Washer |
| 15s | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 310b | 572084800 | Reinforcement Stopper |
| 315 | 503191273 | Washer |
| 316 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 451 | 503193894 | Casted Support |
| 452 | 503190434 | Labyrinth Seal |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flange Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flange Elastic Nut M6 |
| 458 | 503195878 | Black, Wheel Cap |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 461 | 503193894 | Casted Support |
| 462 | 503190434 | Labyrinth Seal |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flange Elastic Nut M6 |
| 466 | 250000945 | Hex. Flange Screw M6 X 25 |
| 467 | 233261466 | Hex. Flange Elastic Nut M6 |
| 468 | 503195878 | Black, Wheel Cap |
| 600a | 503190396 | Ball Bearing |
| 600b | 415129371 | Retaining Ring |
| 610 | 503196754 | Rear Axle |
| 620 | 503196317 | Spacer |
| 650 | 503190432 | Washer |
| 660 | 503196246 | Rear Wheel Support |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 680 | 503190682 | Labyrinth Seal |
| 710 | 503191910 | Washer |
| 720 | 234201474 | Conical Spring Washer 10 mm |
| 730 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 800 | 861805547 | Spring Support Kit |
| 810 | 503196210 | Bushing |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503194266 | Tensioner |
| 920 | 503198273 | Screw Adjustment |
| 930 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1000 | 503196663 | Axle |
| 1020 | 503192494 | Washer |
| 1030 | 503192440 | Bolt M8 X 248mm |
| 1040 | 233281466 | Elastic Flange Nut M8 |
| 1090 | 503195954 | Pivot Axle |
| 1100 | 503195825 | Spacer |
| 1110 | 503192494 | Washer |
| 1120 | 503192440 | Bolt M8 X 248mm |
| 1130 | 233281466 | Elastic Flange Nut M8 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1400 | 503197821 | LH Ice Scratcher |
| 1410 | 503197822 | RH Ice Scratcher |
| 1420 | 503194294 | LH Support |
| 1430 | 503194295 | RH Support |
| 1440 | 207683054 | Hex. Flange Screw M8 X 30 |
| 1445 | 503192494 | Washer |
| 1450 | 233281466 | Elastic Flange Nut M8 |
| 1470 | 503197993 | Ice Scratcher Support |
| 1480 | 207652554 | Hex.Flange Screw M5 X 25 |
| 1490 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1500 | 503198318 | Central Axle Support Weld |
