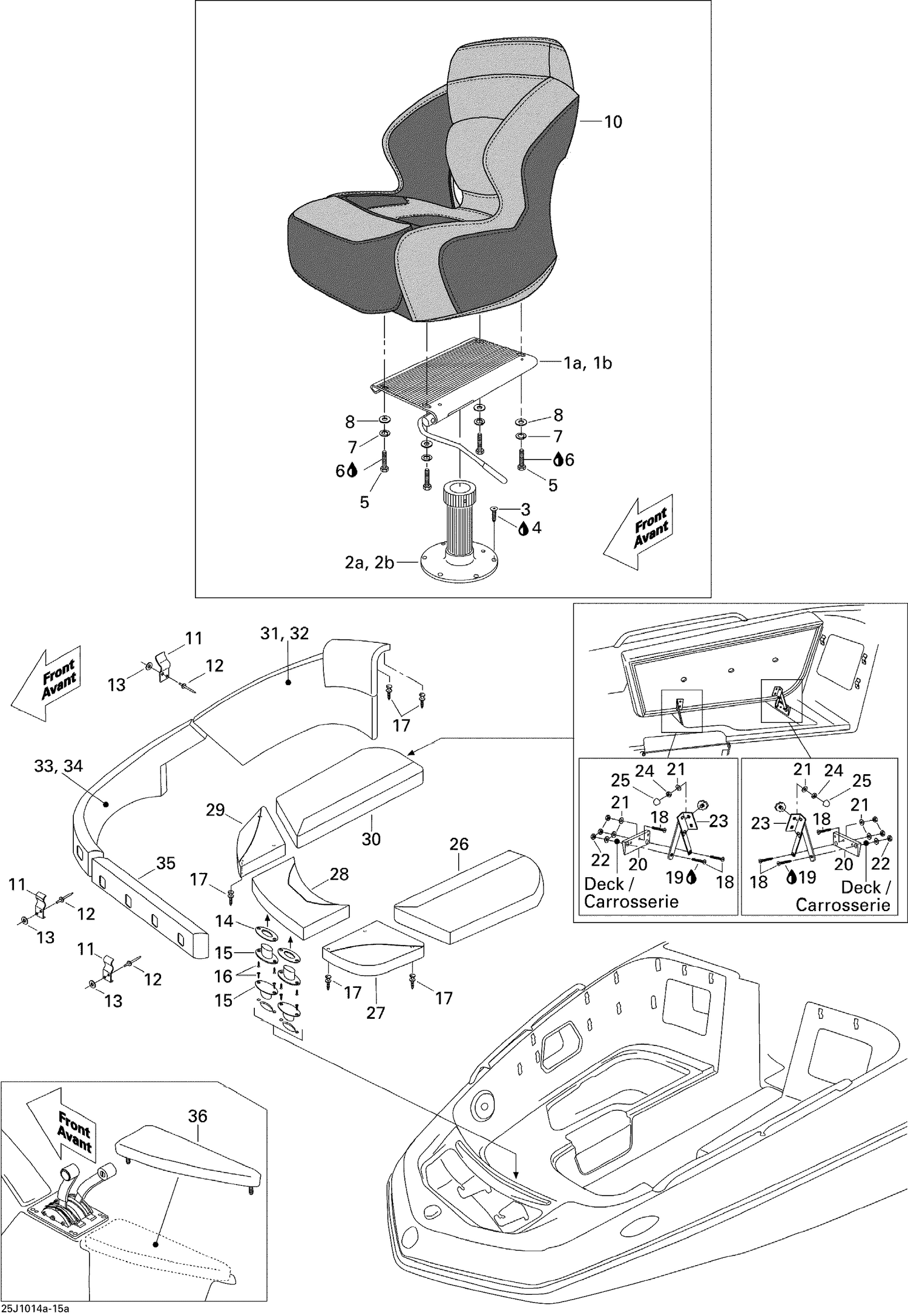

| Ref | Part Number | Description |
|---|
| 3 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
204100134 |
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
211200025 |
Lock Washer 1/4” |
| 8 |
234082600 |
Flat Washer 8 mm, Stainless |
| 10 |
204614447 |
Bucket Seat Ass'y |
| 11 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership |
| 12 |
293150043 |
Pop Rivet 3/16" |
| 13 |
234061600 |
Stainless Flat Washer M6 |
| 14 |
204130219 |
SPACER MAGNET 1/8'' - Call your local BRP dealership |
| 15 |
204614513 |
MAGNETIC CATCH ASS'Y - Call your local BRP dealership |
| 16 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 17 |
204130264 |
Dart 1", White |
| 18 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 20 |
204614766 |
HINGE SHIM - Call your local BRP dealership |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 22 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 23 |
204614745 |
Hinge Set |
| 24 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 25 |
204130008 |
Plastic Cap, White |
| 26 |
269002589 |
CUSHION ASS'Y, BOW PORT SIDE - Call your local BRP dealership This part replaces 204614918. |
| 27 |
269002591 |
CUSHION ASS'Y, BOW-FRONT, PORT SIDE - Call your local BRP dealership This part replaces 204614920. |
| 28 |
269002593 |
CUSHION ASS'Y, BOW-CENTER - Call your local BRP dealership This part replaces 204614922. |
| 29 |
269002592 |
CUSHION ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership This part replaces 204614924. |
| 30 |
269002590 |
CUSHION ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership This part replaces 204614926. |
| 31 |
204614928 |
Bow Backrest, Port |
| 32 |
204614930 |
Bow Backrest, Starboard |
| 33 |
269001957 |
BOW FRONT BACKREST, PORT SIDE - Call your local BRP dealership This part replaces 204614932. |
| 34 |
269001958 |
BOW FRONT BACKREST, STARBOARD SIDE - Call your local BRP dealership This part replaces 204614934. |
| 35 |
204614936 |
BOW CENTER BACKREST - Call your local BRP dealership |
