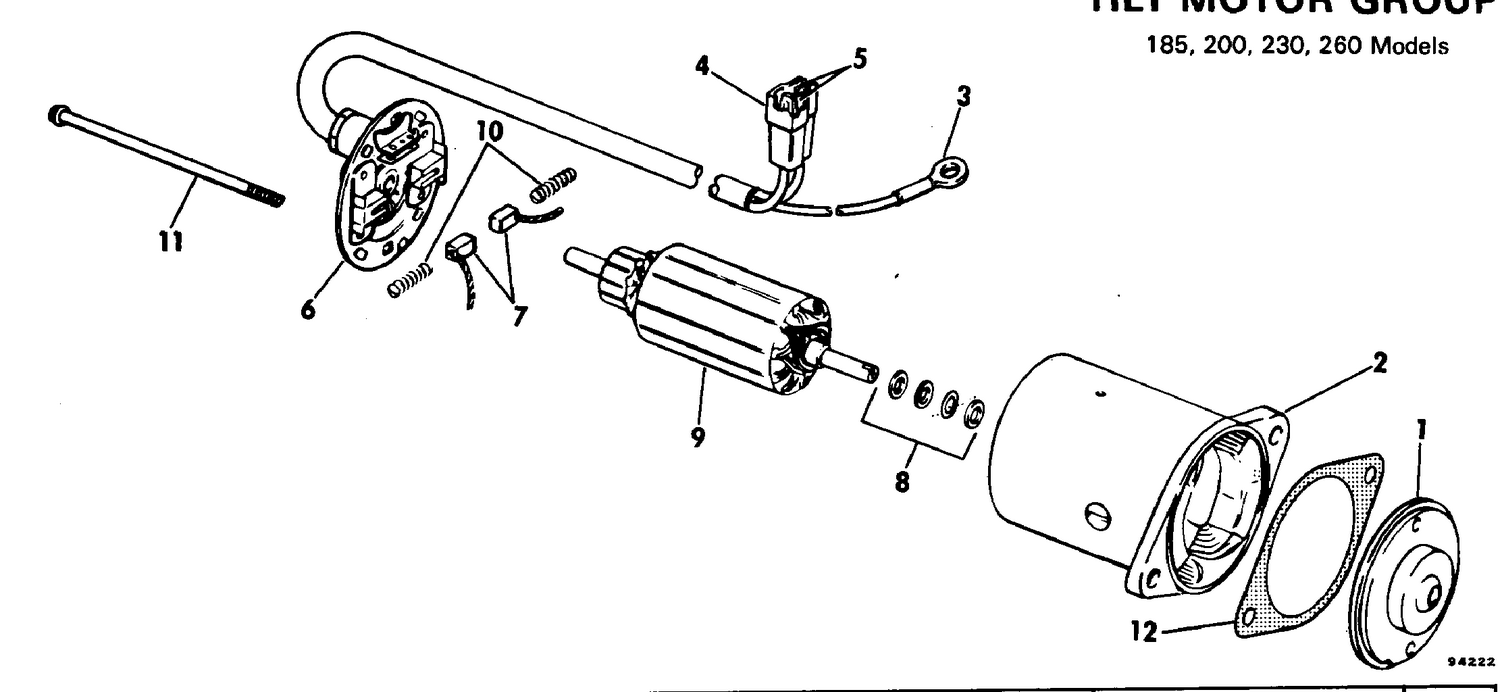

TILT MOTOR GROUP 185,200,230,260 MODELS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0982309 | HEAD ASSEMBLY, Drive end |
| 2 | 0982860 | FRAME & FIELD COIL ASSY This part replaces 0982315. |
| 4 | 0510472 | CONNECTOR |
| 6 | 0982311 | HEAD ASSY, Commutator end |
| 8 | 0380752 | THRUST WASH AND SPACER PKG |
| 9 | 0982314 | ARMATURE ASSEMBLY |
| 11 | 0982308 | THRU BOLT PACKAGE |
| 12 | 0982312 | GASKET |
| 0982058 | 0982706 | TILT MOTOR ASSEMBLY This part replaces 0982058. |
