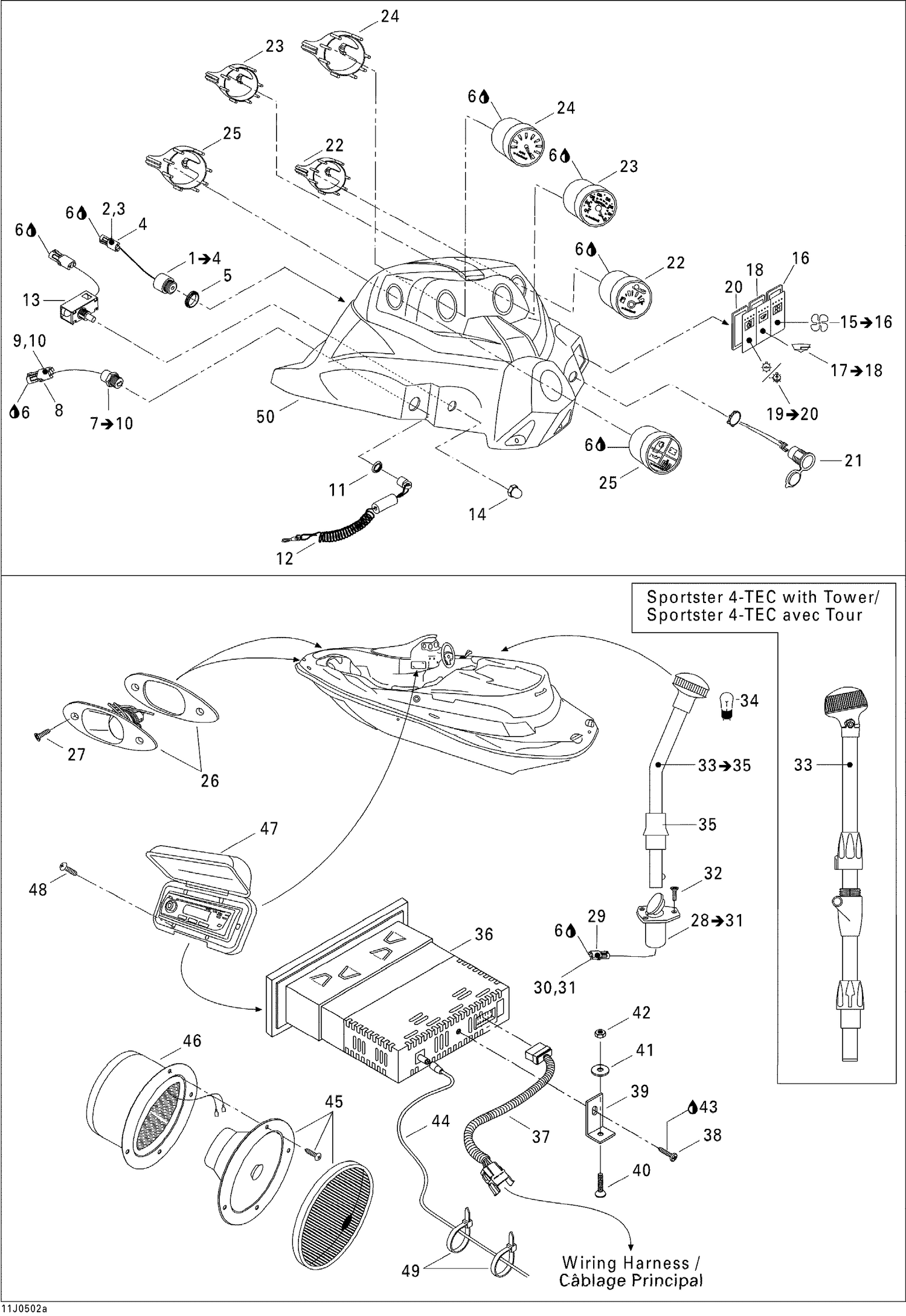

10- Electrical Accessories 1
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278000222 | Male Terminal |
| 3 | 278000218 | Wire Seal |
| 4 | 278000217 | Female Housing, 2 Circuits |
| 5 | 278000707 | Buzzer Nut |
| 6 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 8 | 278000273 | Male Housing, 3 Circuits |
| 9 | 278000218 | Wire Seal |
| 10 | 278000223 | Female Terminal |
| 11 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 12 | 278002199 | Safety Lanyard, Antitheft This part replaces 278001543. |
| 13 | 278000621 | IGNITION SWITCH - Call your local BRP dealership |
| 14 | 278000565 | IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 16 | 204470132 | Gasket |
| 18 | 204470132 | Gasket |
| 20 | 204470132 | Gasket |
| 21 | 710001248 | DC Outlet This part replaces 204470907. |
| 22 | 204470956 | FUEL GAUGE - Call your local BRP dealership |
| 23 | 204470957 | Speed Gauge |
| 24 | 204470958 | TACHOMETER GAUGE - Call your local BRP dealership |
| 25 | 204470959 | ENGINE WARNING GAUGE - Call your local BRP dealership |
| 26 | 204470908 | LATERAL LIGHT KIT - Call your local BRP dealership |
| 27 | 209941960 | PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 29 | 278000217 | Female Housing, 2 Circuits |
| 30 | 278000222 | Male Terminal |
| 31 | 278000218 | Wire Seal |
| 32 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 34 | 204470053 | Bulb |
| 35 | 204470350 | COLLAR - Call your local BRP dealership |
| 36 | 204470946 | Compact Disk Stereo |
| 37 | 204470930 | Stereo Adaptor Harness |
| 38 | 204100148 | Pan Head Screw M5x8 |
| 39 | 204470837 | RADIO SUPPORT - Call your local BRP dealership |
| 40 | 208462060 | PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 41 | 234062600 | Flat Washer M6, Stainless |
| 42 | 232561600 | Hex. Elastic Stop Nut M6 |
| 43 | 293800060 | Loctite 243, 10 ml |
| 44 | 204470931 | Antenna |
| 45 | 204470947 | Black, Speaker |
| 46 | 204470982 | SPEAKER COVER ASS'Y - Call your local BRP dealership |
| 47 | 204470894 | RADIO CD PLAYER COVER - Call your local BRP dealership |
| 48 | 209632560 | Pan Head Tapping Screw M3.5x25 |
| 49 | 293750001 | Tie Wrap 94 mm |
