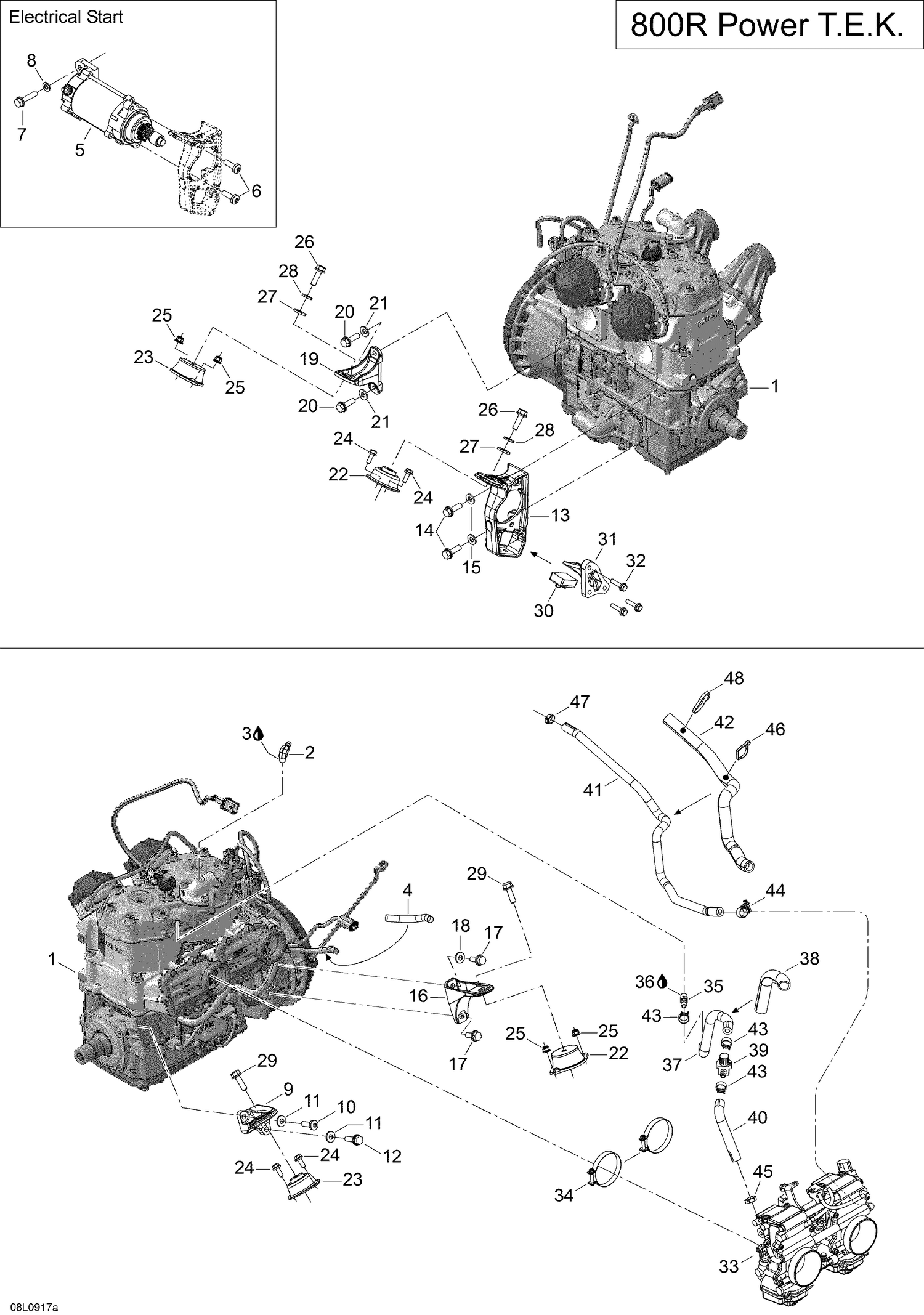

| Ref | Part Number | Description |
|---|
| 1 |
861805566 |
Short Block 797 Ptek This part replaces 400800318. |
| 2 |
293700045 |
ELBOW FITTING 90 - Call your local BRP dealership |
| 3 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
| 4 |
513033556 |
Tubing 10 mm |
| 9 |
512060478 |
Rear Support, PTO |
| 10 |
250000752 |
Pan HD Torx Screw M8 x 25 This part replaces 250000248. |
| 11 |
234281474 |
Conical Spring Washer M8 |
| 12 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 13 |
512060714 |
Front Support PTO This part replaces 512060408. |
| 14 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 15 |
234281474 |
Conical Spring Washer M8 |
| 16 |
512060470 |
REAR MAG SUPPORT - Call your local BRP dealership |
| 17 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 18 |
234281474 |
Conical Spring Washer M8 |
| 19 |
512060469 |
Front MAG Support |
| 20 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 21 |
234281474 |
Conical Spring Washer M8 |
| 22 |
512060729 |
Rubber Mount This part replaces 512060457. |
| 23 |
512061507 |
Damper_Vibration This part replaces 512060387. |
| 24 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
207583086 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 27 |
503183200 |
Yellow, Washer |
| 28 |
234281474 |
Conical Spring Washer M8 |
| 29 |
250000796 |
Hex. Flanged Screw M8 X 25 This part replaces 250000361. |
| 30 |
512060488 |
STOPPER - Call your local BRP dealership |
| 31 |
512060576 |
Stopper Support This part replaces 512060489. |
| 32 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 33 |
403138805 |
CARBURATOR KIT, TM40-B397 - Call your local BRP dealership |
| 34 |
512059835 |
Gemi Clamp |
| 35 |
512060196 |
Male Connector 1/8"-27 NPT |
| 36 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
| 37 |
512060357 |
HOSE FORMED ENGINE OUTLET - Call your local BRP dealership |
| 38 |
513033452 |
Tubing 16 mm |
| 39 |
512059324 |
Valve 5/16” |
| 40 |
512060353 |
Hose Formed Carburator Outlet |
| 41 |
512060347 |
Hose Formed Carburator Outlet |
| 42 |
513033238 |
Tubing 16 mm |
| 43 |
414655700 |
Spring Clamp |
| 44 |
293650084 |
Norma Clamp |
| 45 |
293650125 |
Oetiker Clamp |
| 46 |
414115200 |
Tie-Rap 180 mm |
| 47 |
293650046 |
Oetiker Clamp |
