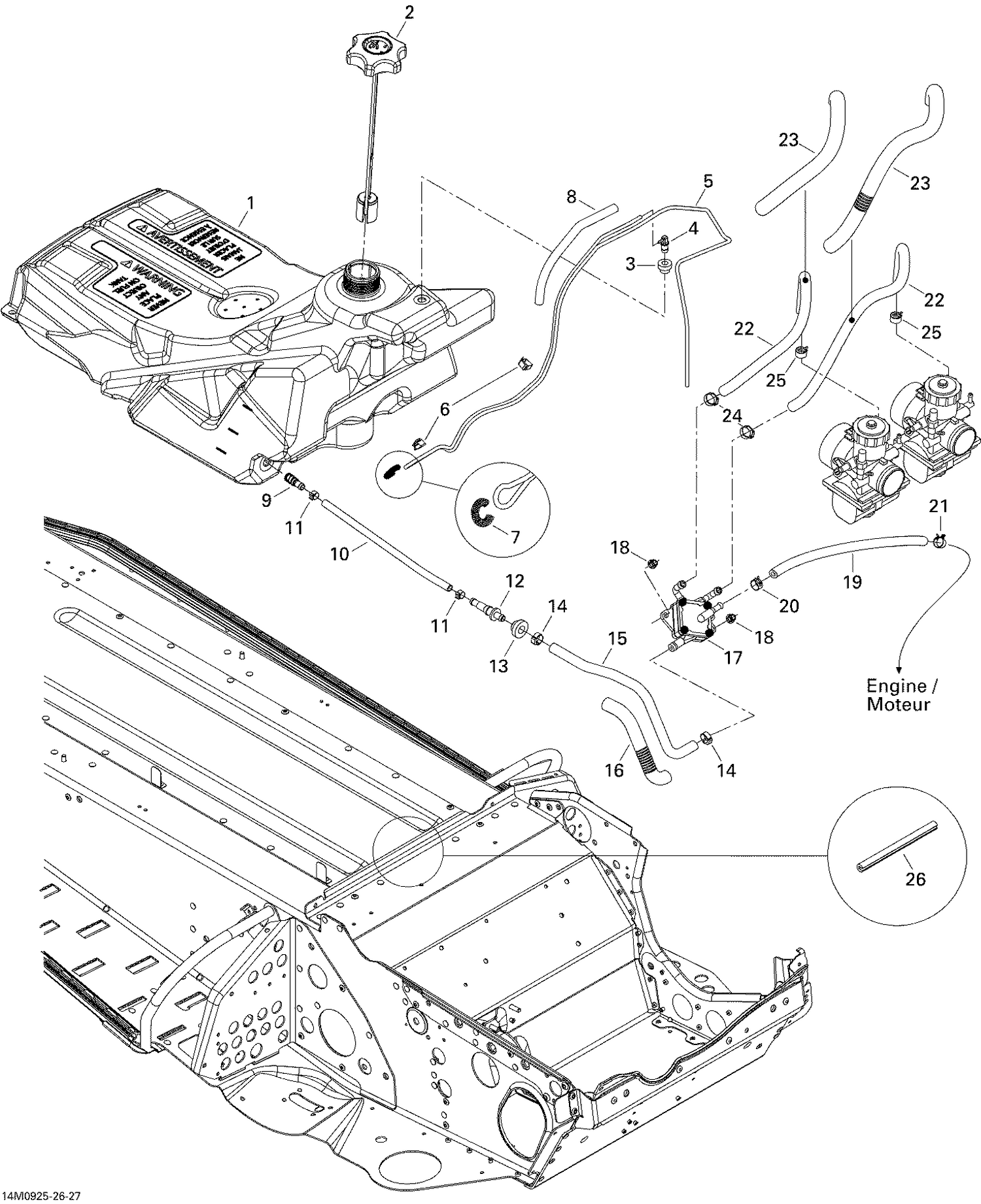

02- Fuel System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033179 | Fuel Tank |
| 2 | 513033361 | Fuel Tank Cap |
| 3 | 513032908 | Grommet |
| 4 | 414814100 | Male Connector |
| 5 | 415080100 | Line |
| 6 | 414227300 | Clip |
| 7 | 414818200 | SPRING - Call your local BRP dealership |
| 8 | 415079900 | Tubing 10 mm |
| 9 | 414872100 | Fuel Filter |
| 10 | 415005700 | Hose |
| 11 | 513033010 | Norma Spring Clamp |
| 12 | 414872700 | Male Connector |
| 13 | 707800347 | Grommet This part replaces 570273900. |
| 14 | 293650053 | Crimp Clamp |
| 15 | 513033374 | Formed Hose |
| 16 | 415080000 | Tubing 16 mm |
| 17 | 403901813 | Fuel Pump |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 513033111 | FORMED HOSE - Call your local BRP dealership |
| 20 | 414415200 | Universal Spring Clamp |
| 21 | 513033029 | Spring Clamp |
| 22 | 513033022 | HOSE 8 MM, METER - Call your local BRP dealership |
| 23 | 415080000 | Tubing 16 mm |
| 24 | 293650047 | Crimp Clamp, 15.3-706R |
| 25 | 513033029 | Spring Clamp |
