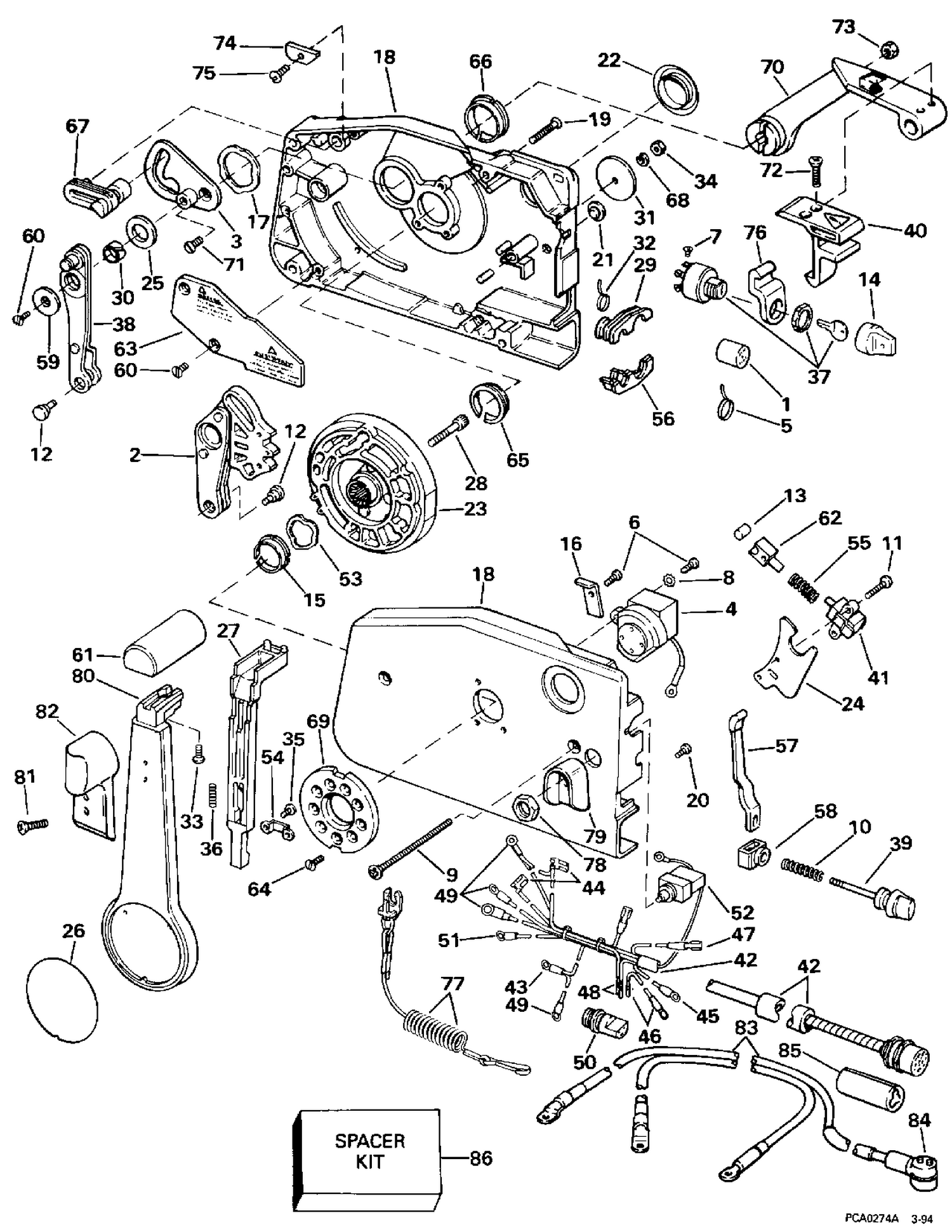

REMOTE CONTROL
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0585992 | HORN This part replaces 0583891. |
| 5 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 18 | 0175946 | HOUSING & COVER ASSY. |
| 20 | 0332200 | CREW,. Ground |
| 22 | 0334762 | PLUG |
| 28 | 0323775 | VIS, collier |
| 29 | 0323762 | GROMMET |
| 42 | 0393129 | CABLE |
| 52 | 0393132 | EMERGECY IGNITION CUT-OFF SWITCH ASSY. |
| 56 | 0323763 | GROMMET |
| 76 | 0331048 | LATCH |
| 79 | 0328170 | GUARD |
| 83 | 0584381 | CÂBLE DE BATTERIE |
| 0175945 | 0175945 | REMOTE CONTROL ASSY. |
