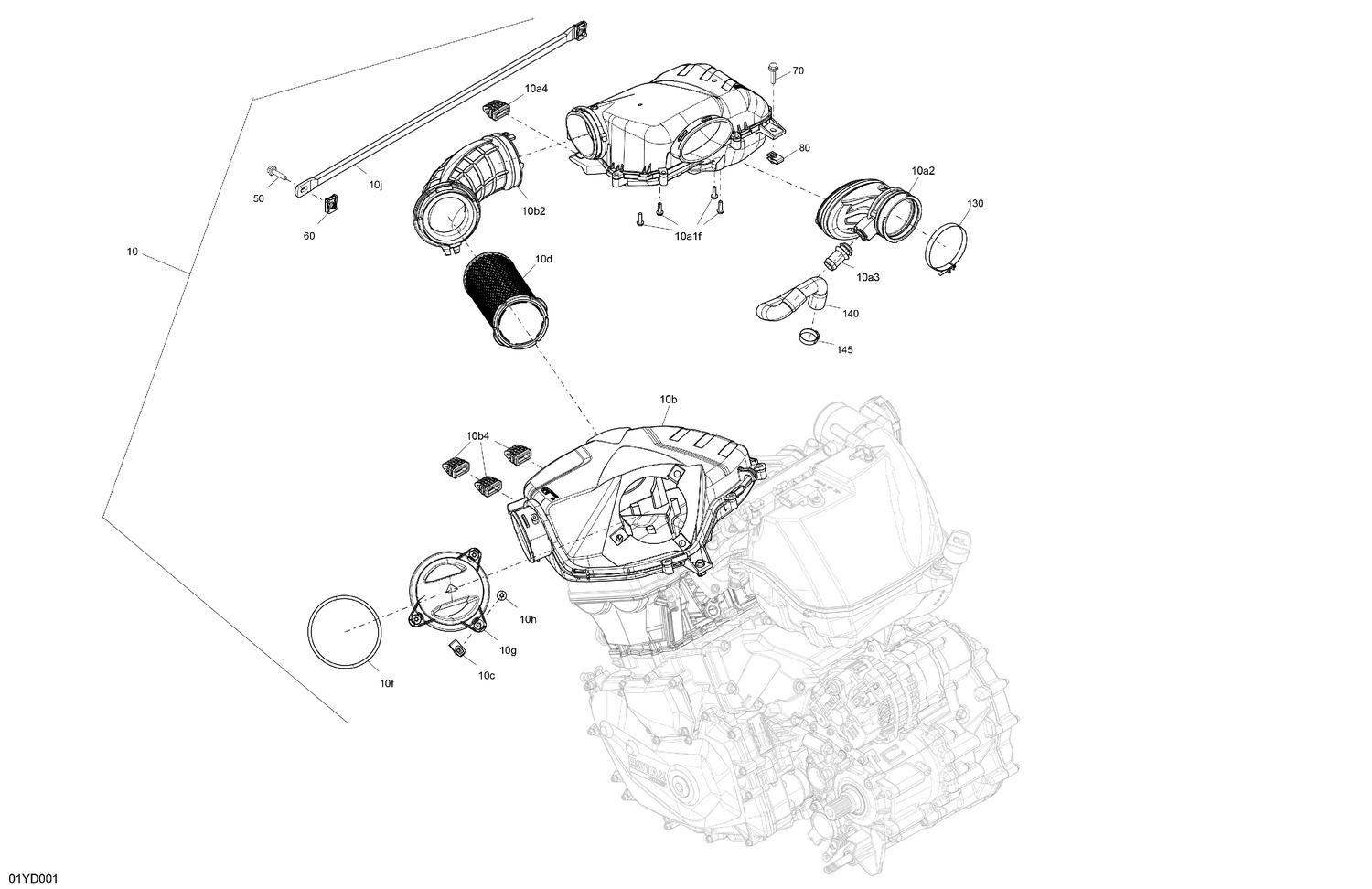

02- Engine - Air Intake
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10a1f | 243141680 | Hex. Screw M4.8 X 1.8 |
| 10a2 | 707800388 | Air Intake Adaptor |
| 10a3 | 273000234 | Breather Valve |
| 10a4 | 707800452 | Rubber Stopper |
| 10b2 | 707800485 | Intake Adaptor |
| 10b4 | 707800452 | Rubber Stopper |
| 10c | 250100198 | Panel Nut M6 X 1.0 |
| 10d | 707800483 | Air Filter |
| 10f | 707800455 | O-ring |
| 10g | 707801121 | Cover |
| 10h | 250000348 | Torx Truss Screw M6 X 16 |
| 10j | 707800432 | Link Rod |
| 50 | 207662544 | Hex. Flange Screw M6 X 25 |
| 60 | 250100208 | Panel Nut M6 X 1.0 |
| 70 | 207662544 | Hex. Flange Screw M6 X 25 |
| 80 | 250100198 | Panel Nut M6 X 1.0 |
| 130 | 508000346 | Gemi Clamp |
| 140 | 707800824 | Formed Hose |
