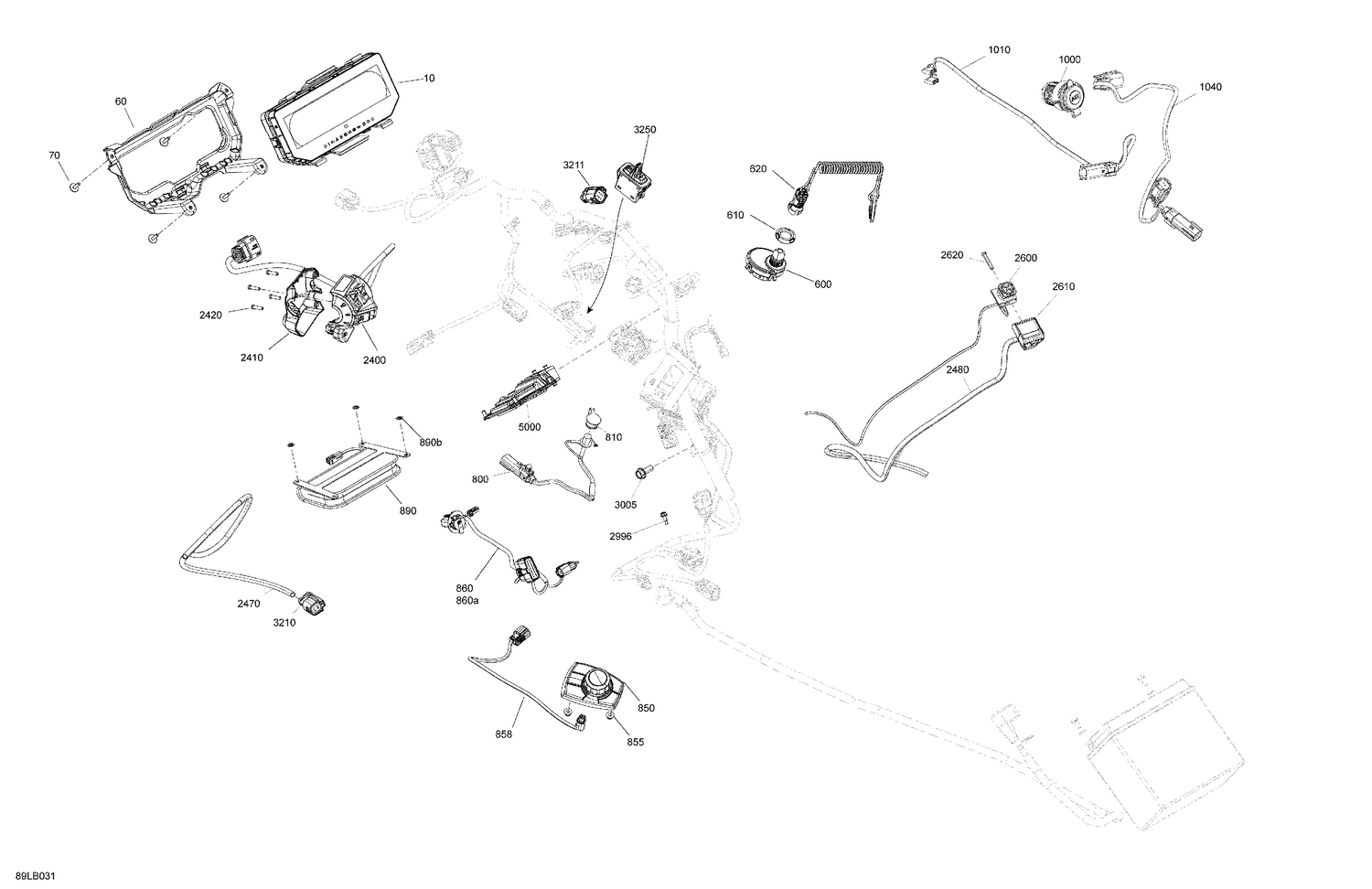

08- Electric - Upper Section
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 710006855 | Ignition Switch |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 850 | 515178325 | Switch |
| 855 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 858 | 515178958 | Adaptor Wiring Harness |
| 860a | 710006405 | USB Connector |
| 890b | 732610072 | Push Nut |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 1040 | 515178153 | Extension Harness |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 2996 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3211 | 515178202 | Connector Coil |
| 3250 | 515178501 | Rocket Switch |
