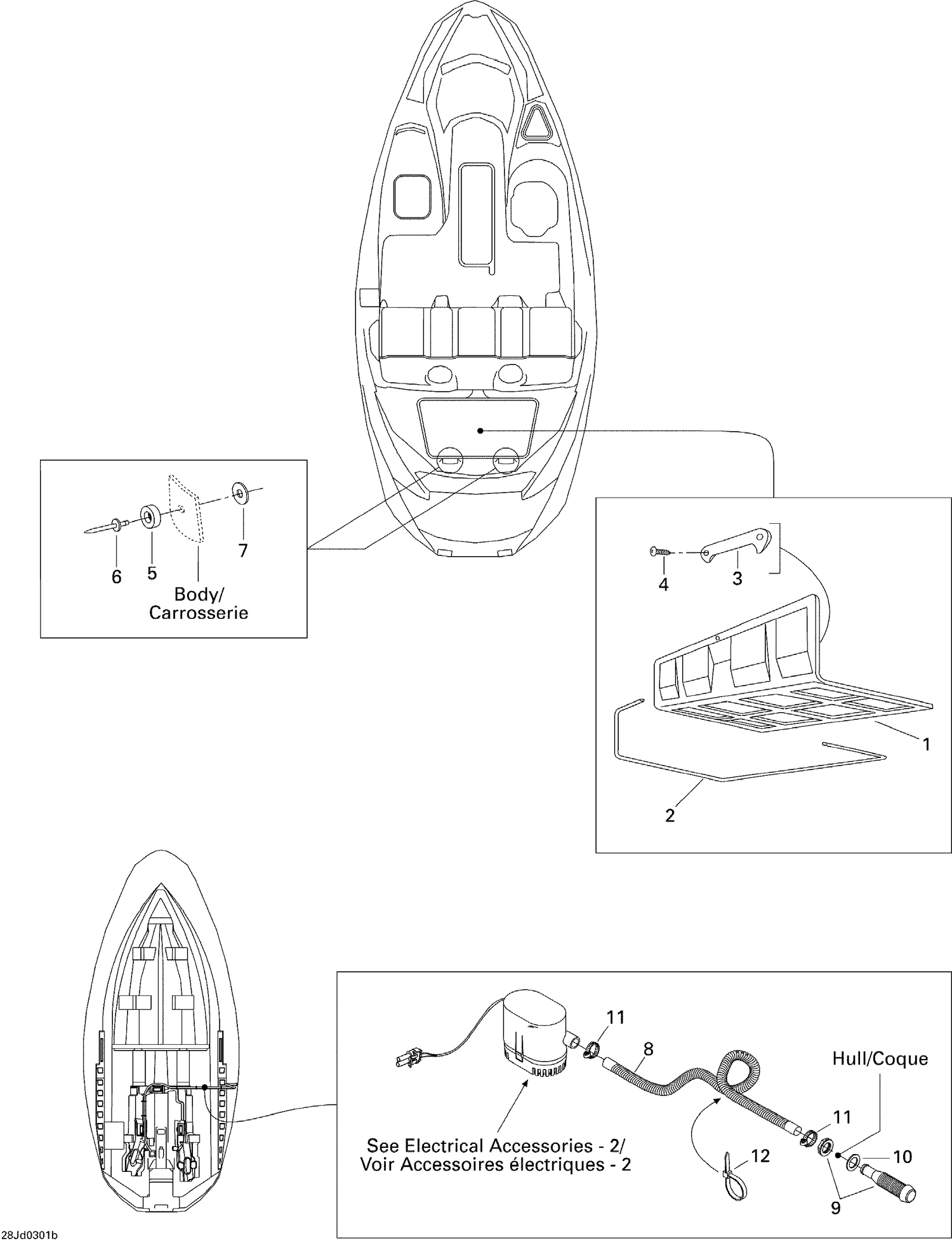

| Ref | Part Number | Description |
|---|
| 1 |
204050519 |
Access Cover |
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
291000608 |
HANDLE, WHITE - Call your local BRP dealership |
| 4 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 5 |
293830043 |
Rubber Stopper |
| 6 |
293150013 |
Pop Rivet 3/16" |
| 7 |
234051600 |
Flat Washer M5, Stainless |
| 8 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership This part replaces 204050299. |
| 9 |
293710162 |
Fitting This part replaces 293710015. |
| 10 |
293250006 |
GASKET - Call your local BRP dealership |
| 11 |
293650080 |
Norma Clamp |
