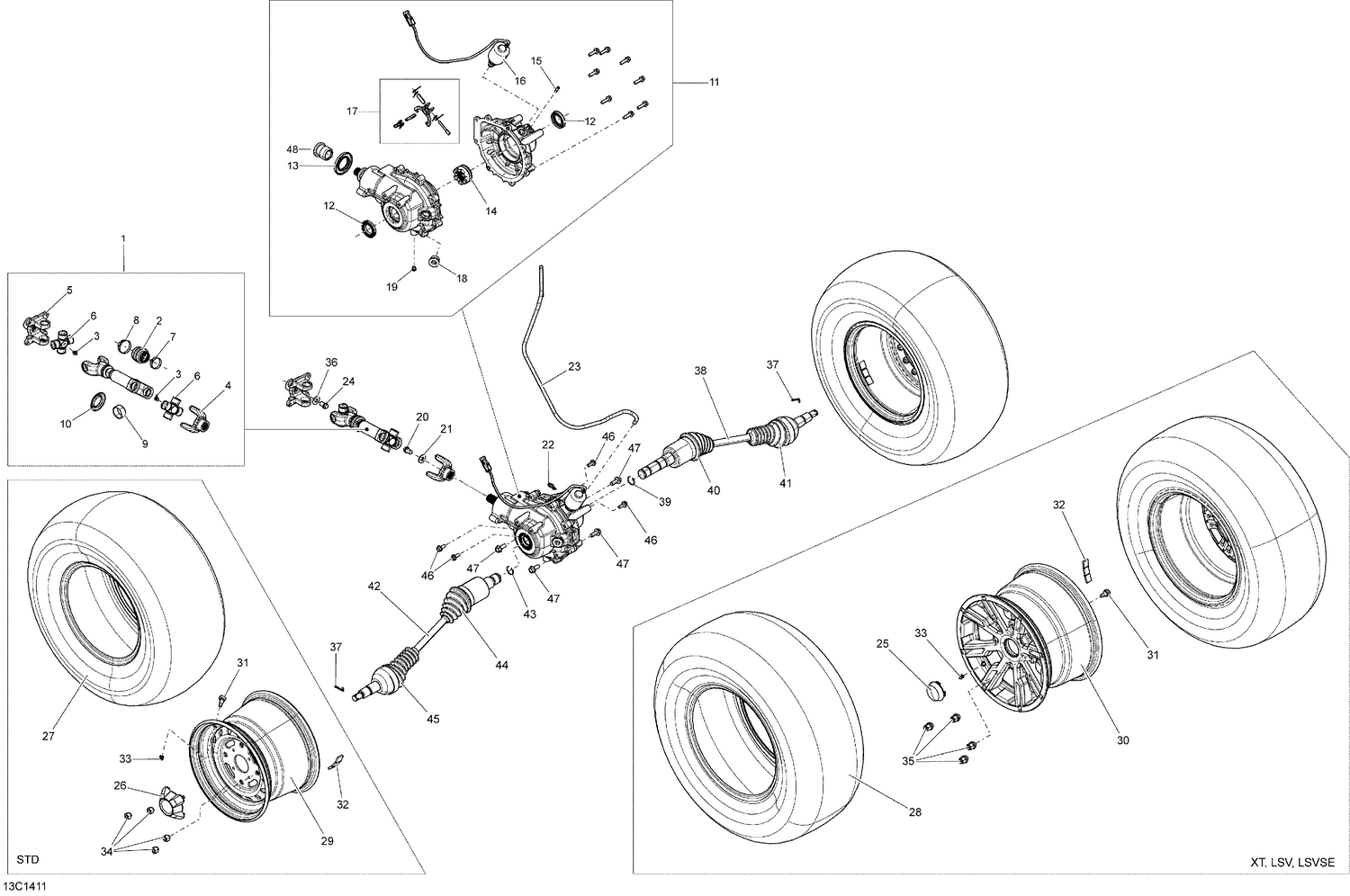

| Ref | Part Number | Description |
|---|
| 2 |
715900118 |
Rubber Boot |
| 3 |
715900184 |
Grease Fitting |
| 4 |
715900101 |
Fixe Yoke |
| 5 |
715900291 |
FLANGE - Call your local BRP dealership This part replaces 715900107. |
| 6 |
715900326 |
Universal Joint This part replaces 715500371. |
| 7 |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 8 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 9 |
705400036 |
Wear Ring |
| 10 |
705501123 |
Protector |
| 12 |
705501824 |
SEAL - Call your local BRP dealership |
| 13 |
705501975 |
SEAL - Call your local BRP dealership |
| 14 |
705501825 |
GEAR - Call your local BRP dealership |
| 15 |
705501826 |
VENT VALVE - Call your local BRP dealership |
| 16 |
710003430 |
SOLENOID - Call your local BRP dealership |
| 17 |
705501829 |
SHIFT YOKE KIT - Call your local BRP dealership |
| 18 |
705501828 |
FILL PLUG - Call your local BRP dealership |
| 19 |
705501827 |
Drain Plug |
| 20 |
250000378 |
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 21 |
250200102 |
Flat Washer M12 |
| 22 |
293750002 |
Tie Wrap 142 mm |
| 23 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 24 |
250001039 |
Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 31 |
705400193 |
Rim Valve With Cap |
| 33 |
293000110 |
Valve Cap |
| 36 |
250200102 |
Flat Washer M12 |
| 37 |
250400036 |
Cotter Pin |
| 39 |
705501832 |
CIRCLIP - Call your local BRP dealership |
| 40 |
705501830 |
BOOT_CV JOINT KIT - Call your local BRP dealership |
| 41 |
705501831 |
BOOT_CV JOINT KIT - Call your local BRP dealership |
| 43 |
705501832 |
CIRCLIP - Call your local BRP dealership |
| 44 |
705501830 |
BOOT_CV JOINT KIT - Call your local BRP dealership |
| 45 |
705501831 |
BOOT_CV JOINT KIT - Call your local BRP dealership |
| 46 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 47 |
207502546 |
Hex. Flange Screw M10 X 25 |
