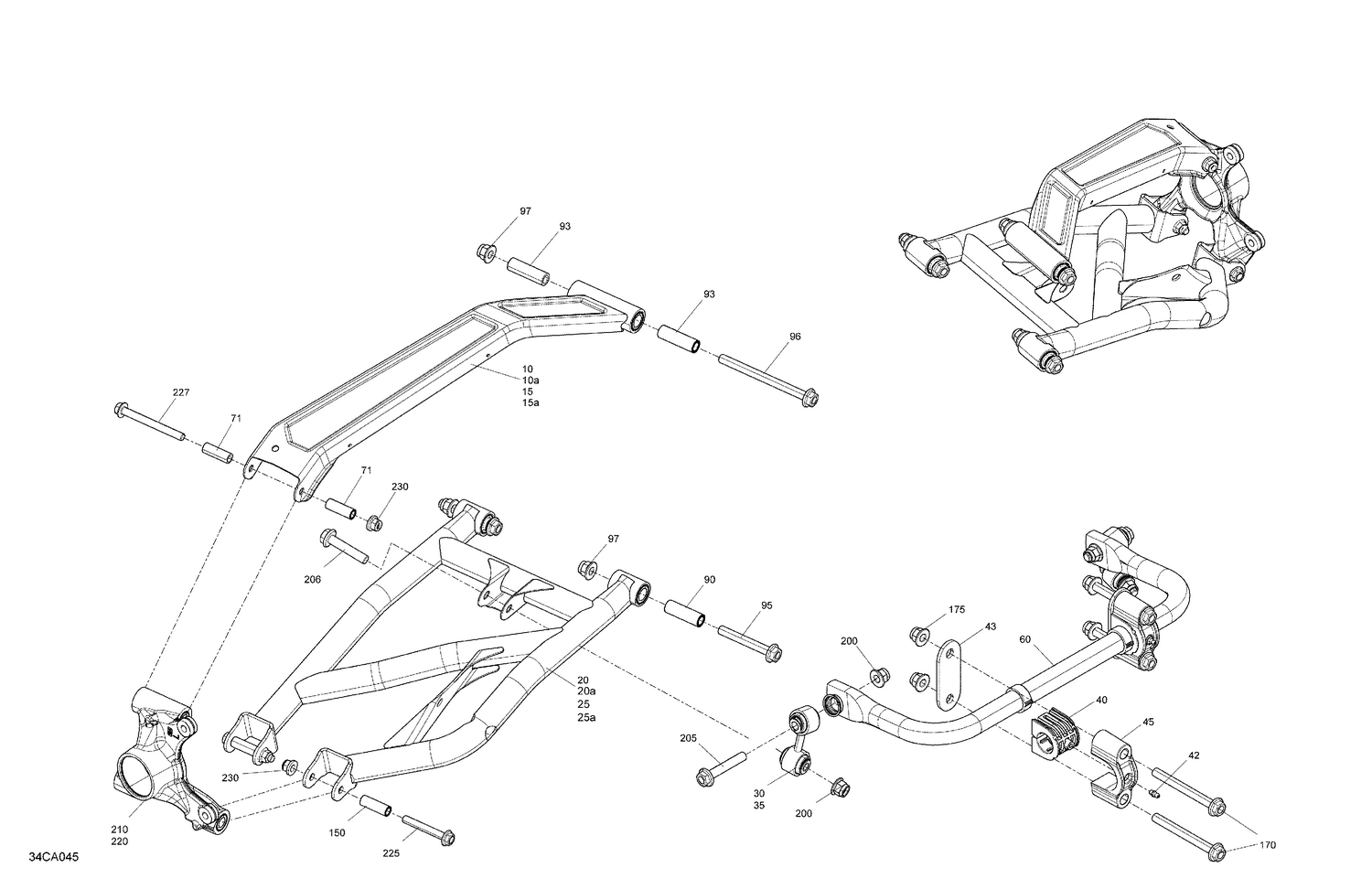

| Ref | Part Number | Description |
|---|
| 10a |
715010684 |
LH Upper Suspension Arm Ass'y With Bushing This part replaces 706003715. |
| 15a |
715010695 |
RH Upper Suspension Arm Ass'y With Bushing This part replaces 706003716. |
| 20a |
715010704 |
LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003727. |
| 25a |
715010711 |
RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003728. |
| 30 |
706003004 |
Sway Bar Double Link |
| 35 |
706003003 |
Sway Bar Double Link |
| 40 |
706004266 |
Stabilizer Bar Bushing |
| 42 |
408200700 |
Grease Fitting |
| 43 |
706002977 |
Plate Support |
| 45 |
706002970 |
Clamp |
| 60 |
706003475 |
Sway Bar Ass'y |
| 90 |
706003528 |
Suspension Arm Bushing |
| 93 |
706004829 |
Suspension Arm Bushing This part replaces 706003709. |
| 95 |
250000859 |
Flange Screw M12 X 85 |
| 96 |
250000861 |
Flange Screw M12 X 145 |
| 97 |
233221466 |
Elastic Flange Nut M12 |
| 170 |
250000860 |
Screw Flange M12 X 115 |
| 175 |
233221466 |
Elastic Flange Nut M12 |
| 200 |
233221466 |
Elastic Flange Nut M12 |
| 205 |
250000858 |
Hex. Flange Screw M12 X 70 |
| 206 |
250000857 |
Flange Screw M12 X 60 |
| 225 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 227 |
230600046 |
Hex Flange Screw DIN.6921 - Call your local BRP dealership |
