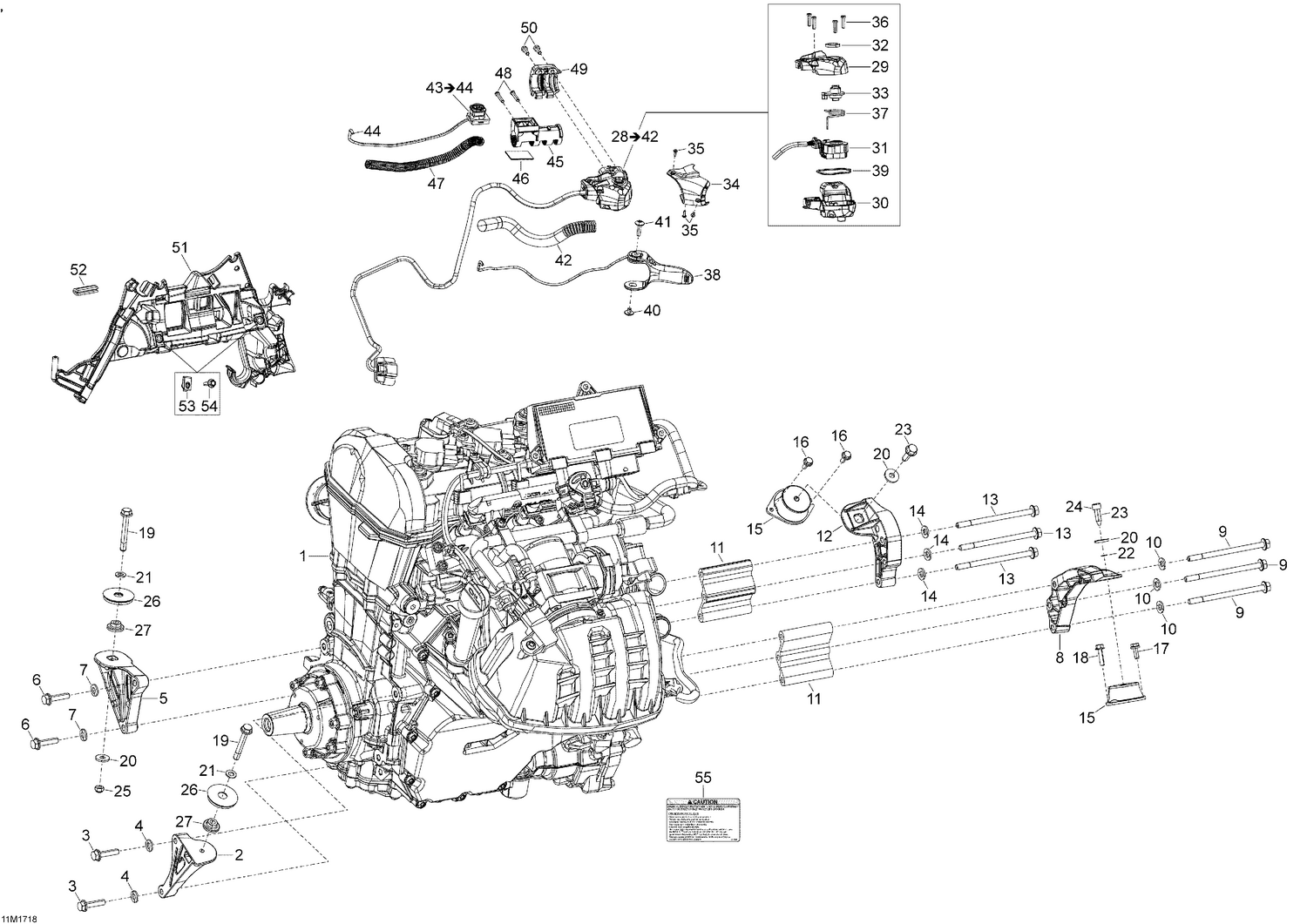

01- Engine And Engine Support
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Engine 600 ACE |
| 2 | 512061139 | Rear Support PTO |
| 4 | 234281474 | Conical Spring Washer M8 |
| 5 | 512061140 | Front Support PTO |
| 7 | 234281474 | Conical Spring Washer M8 |
| 8 | 512061142 | Rear Support MAG |
| 10 | 250200157 | Conical Spring Washer M8 |
| 12 | 512061141 | Front Support MAG |
| 14 | 250200157 | Conical Spring Washer M8 |
| 15 | 512060729 | Rubber Mount |
| 16 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 17 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 18 | 207562534 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 19 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 20 | 503183200 | Yellow, Washer |
| 21 | 250200008 | Flat Washer With Teflon 8 mm |
| 22 | 293300123 | O-Ring |
| 25 | 232581414 | Hex. Elastic Stop Nut M8 |
| 27 | 512060285 | Spacer |
| 29 | Not | Available As Spare Part - Housing |
| 30 | Not | Available As Spare Part - Housing |
| 31 | Not | Available As Spare Part - Sensor |
| 32 | Not | Available As Spare Part - Shaft Seal |
| 33 | Not | Available As Spare Part - Swivel |
| 34 | 512060862 | Cap |
| 35 | 250000623 | Torx Screw M2.9 x 9.5 |
| 36 | 250000671 | Torx Screw |
| 37 | Not | Available As Spare Part - Spring |
| 38 | Not | Available As Spare Part - Handle |
| 39 | Not | Available As Spare Part - O Ring |
| 40 | Not | Available As Spare Part - Screw |
| 41 | 250000528 | Torx Screw M5 X 20 |
| 42 | 515177716 | Protector Tube |
| 44 | 515175232 | Male Terminal |
| 45 | 512061453 | Switch Support This part replaces 512060844. |
| 46 | 294000973 | Friction Tape |
| 47 | 515177946 | Protector Tube |
| 48 | 250000263 | Torx Screw #8-18 |
| 49 | 512060987 | Front Housing |
| 50 | 250000632 | Torx Screw M5 X 14 |
| 51 | 512060994 | Module Support |
| 52 | 219704354 | Trim 1000Mm Long |
| 53 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 54 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
