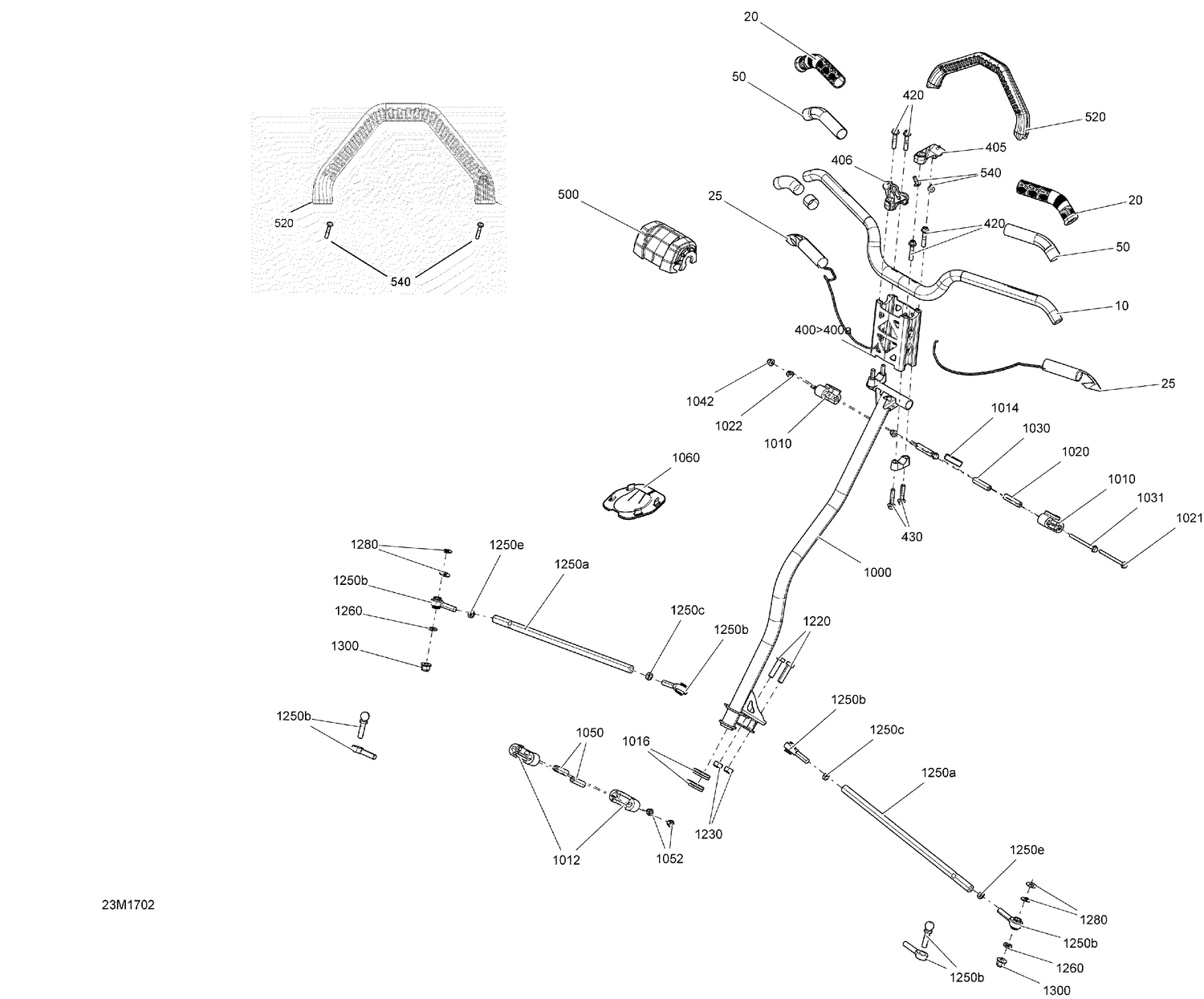

07- Steering - All Models
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506152802 | Manta Green Handle Bar |
| 20 | 506152560 | Grip 148mm |
| 25 | 506152758 | Heating Element 32 Watt 2 Wires |
| 50 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 400a | 250000352 | Hex. Flange Screw M8 X 40 |
| 405 | 506152555 | Steering Support |
| 406 | 506152556 | Steering Support |
| 410a | 506152751 | Steering Support This part replaces 506152750. |
| 420 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 430 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 500 | 506152717 | Steering Pad |
| 520 | 506152460 | Moulding Strap |
| 540 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1000 | 506152962 | Steering Column |
| 1010 | 506152508 | Upper Half-Housing |
| 1012 | 506152588 | Lower Half-Housing |
| 1014 | 506152509 | Upper Anti-Vibration Gasket |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1022 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1042 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1050 | 506152297 | Housing Bushing |
| 1052 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1060 | 506152163 | Plate |
| 1220 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 1230 | 233601466 | Elastic Locking Nut M10 |
| 1250a | 506152498 | Tie-Rod |
| 1250b | 506152081 | LH Thread Ball Joint |
| 1250b | 506152684 | RH Threaded Ball Joint |
| 1250c | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 1250e | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1260 | 503192496 | Washer |
| 1280 | 506152582 | Washer |
