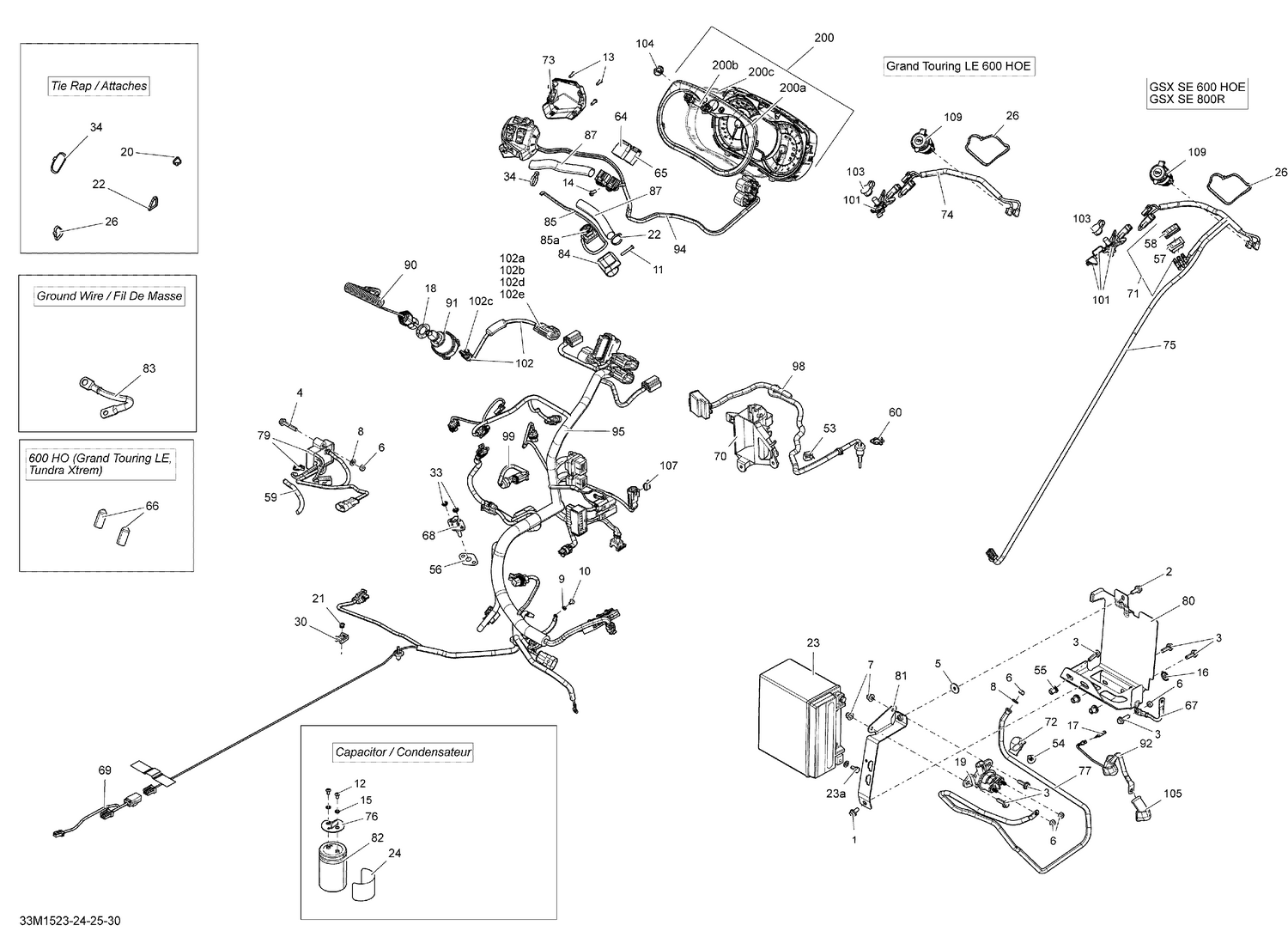

10- Electrical System _33M1524
Parts (79)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661244 | Hex. Flange Screw M6 X 12 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | XXX | Not Available As Spare Parts |
| 5 | 224061201 | Flat Washer |
| 6 | 232561434 | Elastic Stop Nut M6 |
| 7 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 8 | 234061410 | Flat Washer 6 mm |
| 9 | 234141601 | Lock Washer 4 mm |
| 10 | 250000127 | Torx Screw M4 X 8 |
| 11 | 250000263 | Torx Screw #8-18 |
| 12 | 250000462 | Socket Head Screw M10 X 32 |
| 13 | 250000671 | Torx Screw |
| 14 | 250000690 | Pan Screw Forming, 7500C |
| 15 | 250200026 | Lock washer |
| 16 | 250200041 | Lock Washer Serrated M6 |
| 17 | 278001443 | Fuse, 25 Amperes |
| 18 | 278002963 | Safety Nut (DESS Switch) |
| 19 | 278003012 | Starter Relay |
| 20 | 293750001 | Tie Wrap 94 mm |
| 21 | 390909200 | Avex Rivet |
| 22 | 293750002 | Tie Wrap 142 mm |
| 23a | 250000282 | Battery Bolt Kit |
| 24 | 516006206 | Capacitor Decal |
| 26 | 293750008 | Tie Wrap 368 mm |
| 30 | 515176795 | Tie Rap Mount (screwable) |
| 33 | 389804300 | Push Nut |
| 34 | 414115200 | Tie-Rap 180 mm |
| 53 | XXX | Not Available As Spare Parts |
| 54 | 414644300 | Black, Dart |
| 55 | 293450275 | Insert |
| 56 | 508000769 | Seal |
| 57 | XXX | Not Available As Spare Parts |
| 58 | XXX | Not Available As Spare Parts |
| 59 | XXX | Not Available As Spare Parts |
| 60 | XXX | Not Available As Spare Parts |
| 64 | 515175662 | Male Terminal Housing, 6 Circuits |
| 65 | 515175846 | Male Terminal Housing, 4 Circuits |
| 66 | 515176141 | Cap |
| 67 | 515176358 | Ground Wire |
| 68 | 515176366 | Air Temperature Sensor |
| 69 | 515176571 | JUNCTION HARNESS - Call your local BRP dealership |
| 70 | 515176607 | Capacitor Support |
| 71 | XXX | Not Available As Spare Parts |
| 72 | 515177066 | Clip |
| 73 | 515177147 | Housing Plate |
| 74 | 515177188 | Harness Accessories |
| 75 | XXX | Not Available As Spare Parts |
| 76 | 515177193 | Cap |
| 77 | 515177208 | Battery/Starter Wire |
| 79 | XXX | Not Available As Spare Parts |
| 80 | 515177264 | Battery Support |
| 81 | 515177266 | Battery Strip |
| 82 | 515177272 | Capacitor |
| 83 | 515177289 | Ground Wire |
| 84 | 515177310 | Emergency Stop Switch Support |
| 85a | 515175232 | Male Terminal |
| 87 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 90 | 515178286 | Grey, RF Key Ass'y This part replaces 515177457. |
| 91 | 515178840 | Terminal Dess One-Wire This part replaces 515177458. |
| 92 | 515177576 | Fuse Battery Wire |
| 94 | 515178197 | LH Switch Housing This part replaces 515177677. |
| 95 | 515177746 | MAIN HARNESS - Call your local BRP dealership |
| 98 | XXX | Not Available As Spare Parts |
| 99 | 420664509 | Temperature Sensor This part replaces 515177813. |
| 101 | 515177837 | Visor Harness |
| 102a | 710001233 | Seal |
| 102b | 710001224 | Terminal |
| 102c | 710001161 | Housing |
| 102d | 710001163 | Wire Seal |
| 102e | 710001164 | Female Terminal |
| 103 | 572103300 | Cap |
| 104 | 516006224 | BRP Logo 20MM x 2MM This part replaces 704904616. |
| 105 | 710000495 | Protector Cap |
| 107 | 710001038 | Clip |
| 109 | 710001248 | DC Outlet |
| 200 | 515177910 | Speedometer This part replaces 515177761. |
| 200a | 415129355 | Speedometer Button |
| 200b | 415129348 | Gauge Ring |
