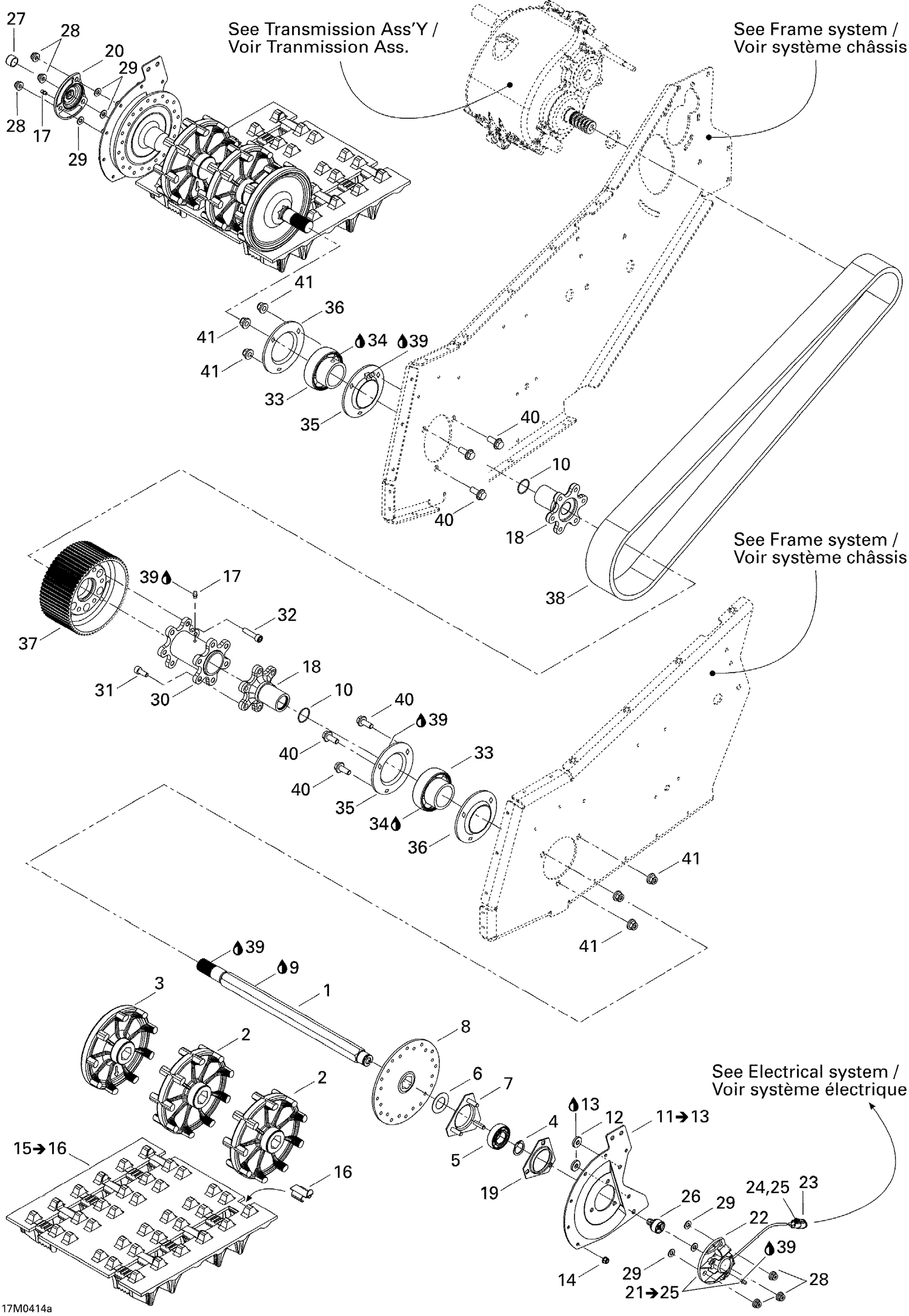

05- Drive System 1
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504152161 | DRIVE AXLE - Call your local BRP dealership |
| 2 | 504151781 | SPROCKET, 9 TEETH - Call your local BRP dealership |
| 3 | 504151782 | HALF SPROCKET, 9 TEETH - Call your local BRP dealership |
| 4 | 371910200 | CIRCLIP - Call your local BRP dealership |
| 5 | 293350060 | Ball Bearing This part replaces 504152009. |
| 6 | 250200037 | Washer |
| 7 | 504151860 | BEARING HOUSING - Call your local BRP dealership |
| 8 | 507032348 | Disc Brake |
| 9 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 10 | 293300078 | O-Ring |
| 12 | 507032396 | Spacer |
| 13 | 413708300 | Glue Tube, Loctite 454, 20 G |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 415129528 | Track Guide This part replaces 500003400. |
| 17 | 408200700 | Grease Fitting |
| 18 | 504152164 | Hub |
| 19 | 501025000 | FLANGE - Call your local BRP dealership |
| 20 | 504152208 | Speed Flange Cap |
| 22 | 504152345 | Rotation Sensor This part replaces 504152167. |
| 23 | 515175671 | FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 24 | 278000632 | Female Terminal |
| 25 | 515175676 | Female Lock, 3 Circuits |
| 26 | 504152040 | MAGNETIC ADAPTOR - Call your local BRP dealership |
| 27 | 504151825 | Cap |
| 28 | 233281414 | Hex. Flange Elastic Nut M8 |
| 29 | 234081410 | Flat Washer 8 mm |
| 30 | 504152155 | Junction Axle |
| 31 | 205582044 | Scotch Grip Socket Screw M8 X 20 |
| 32 | 205583544 | Socket Head Screw M8 X 35, Scotch Grip |
| 33 | 504152346 | BALL BEARING - Call your local BRP dealership |
| 34 | 293800005 | Loctite 271, 10 ml |
| 35 | 504152347 | Flange With Grease Fitting |
| 36 | 504152348 | Flange |
| 37 | 504152210 | Gear 63 Teeth |
| 38 | 504152184 | Drive Belt |
| 39 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 40 | 207602544 | Hex. Flange Screw M10 X 25 |
| 504152404 | Plaque | De Barbotin DR Ass. 504152404 |
| 504152404 | RH | Sprocket Plate Ass'y 504152404 |
