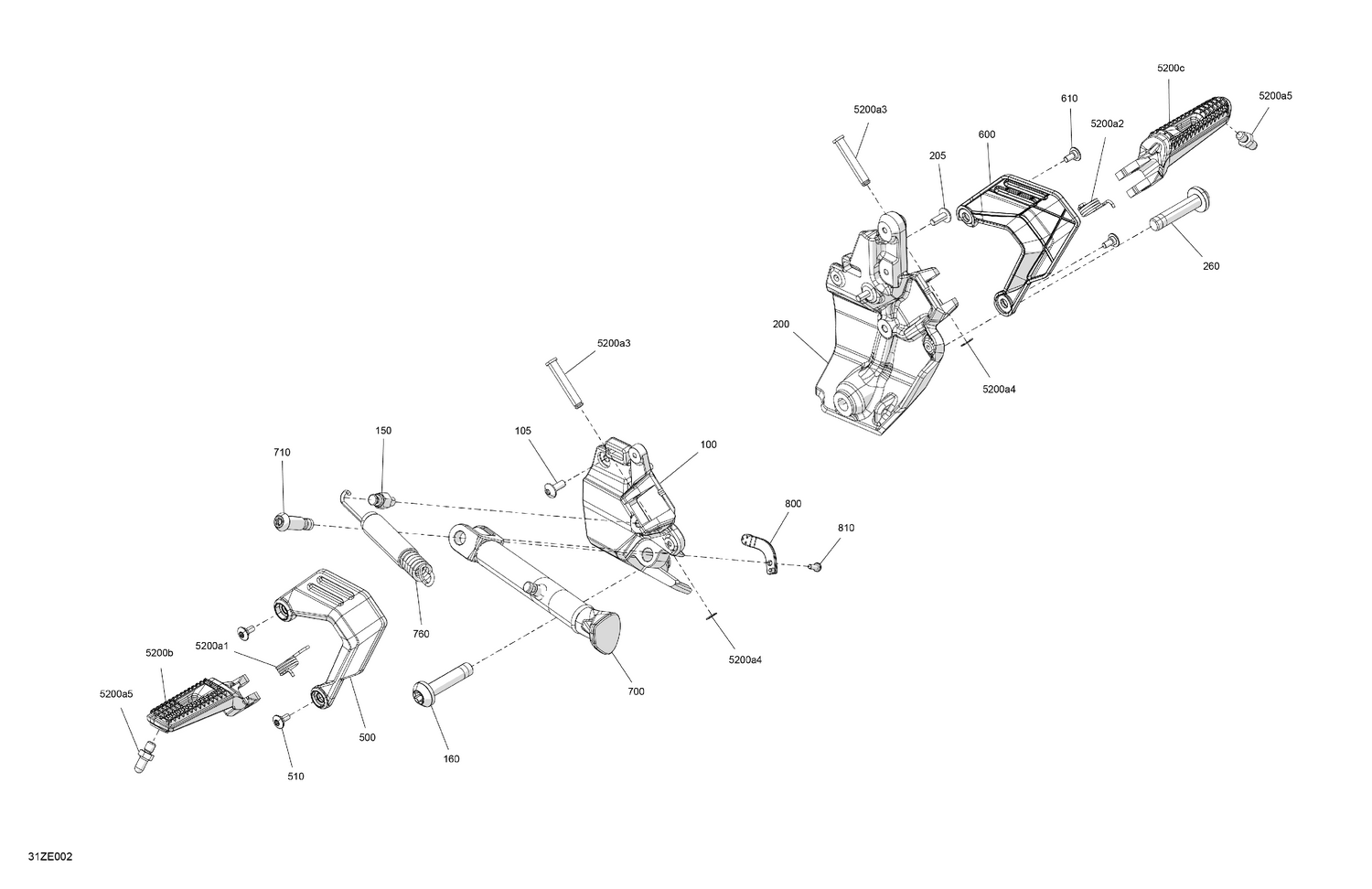

06- Frame - Footrest
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 105 | 250000534 | Tork Screw M6 X 16 |
| 150 | 705700081 | Machined Spring Anchorage |
| 160 | 250001313 | Torx Truss Screw Torx S.Grip M12 X |
| 205 | 250000534 | Tork Screw M6 X 16 |
| 260 | 250001313 | Torx Truss Screw Torx S.Grip M12 X |
| 500 | 705700103 | LH Guard This part replaces 705700046. |
| 510 | 250001308 | Torx Screw M5 X 12 |
| 600 | 705700104 | RH Guard This part replaces 705700047. |
| 610 | 250001308 | Torx Screw M5 X 12 |
| 710 | 705211205 | Pivot Stand |
| 5200a1 | 705001701 | Spring |
| 5200a2 | 705003362 | Spring |
| 5200a3 | 705001702 | Retainer Pin |
| 5200a4 | 705601030 | Circlip |
| 5200a5 | 705700008 | Footrest Stopper |
| 5200b | 705700069 | LH Front Footrest |
