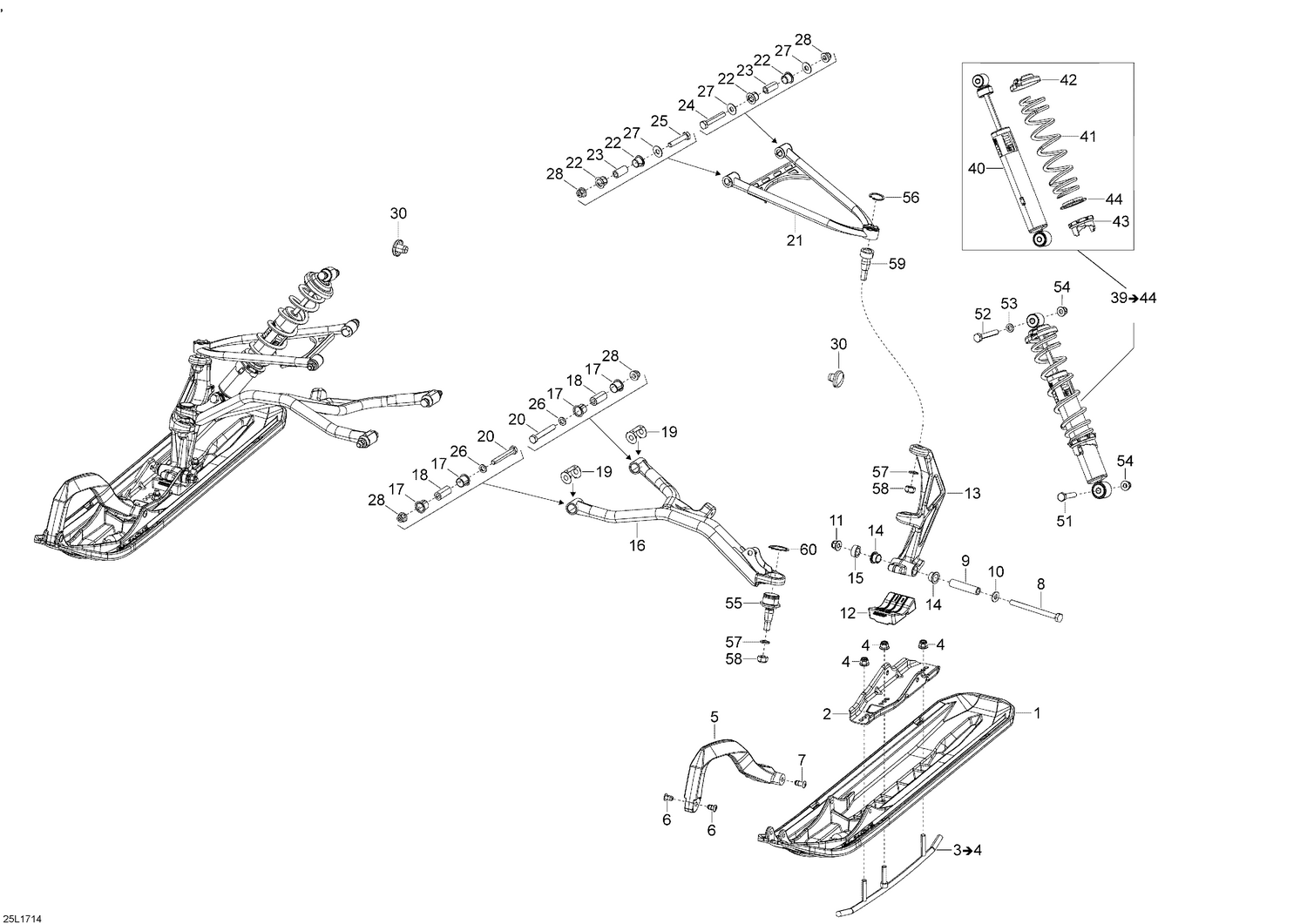

07- Front Suspension And Ski
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505073154 | Black Blade Ski |
| 2 | 505073240 | Ski Bridge |
| 4 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 5 | 505072976 | Black, Handle |
| 6 | 505071812 | Retainer 17mm long |
| 7 | 505072133 | Retainer 23mm Long |
| 8 | 231080044 | Socket HD Screw M10 x 100 |
| 9 | 506133300 | Ski Axle |
| 10 | 732900049 | Washer |
| 11 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 12 | 505073411 | Rubber Damper |
| 13 | 505073443 | LH Ski Leg |
| 13 | 505073444 | RH Ski Leg |
| 14 | 505072690 | Leg Bushing |
| 15 | 505072807 | Spacer |
| 16 | 505073924 | Black LH Lower Arm |
| 16 | 505073925 | Black RH Lower Arm |
| 17 | 505073330 | Bushing |
| 18 | 505072209 | Bushing |
| 19 | 505072634 | Wear Plate |
| 20 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 21 | 505073985 | Black LH Upper Arm |
| 21 | 505073986 | Black RH Upper Arm |
| 22 | 505073329 | Bushing |
| 23 | 505072143 | Bushing |
| 24 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 25 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 26 | 503189564 | Washer |
| 27 | 505072392 | Washer |
| 28 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 30 | 572091300 | Cap |
| 40 | 505073342 | Shock |
| 42 | 706200881 | Spring Stopper |
| 43 | 505073625 | Adjustment Cam |
| 44 | 503191872 | Spring Guide |
| 51 | 207005544 | Hex. Cap Screw M10 x 55 |
| 52 | 207006544 | Hex. Cap Screw M10 x 65 |
| 53 | 503189564 | Washer |
| 54 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 55 | 505073636 | Ball Joint |
| 56 | 293370070 | Circlip |
| 57 | 234021410 | Flat Washer |
| 58 | 250100089 | Nut M12 |
| 59 | 505072913 | Upper Ball Joint |
