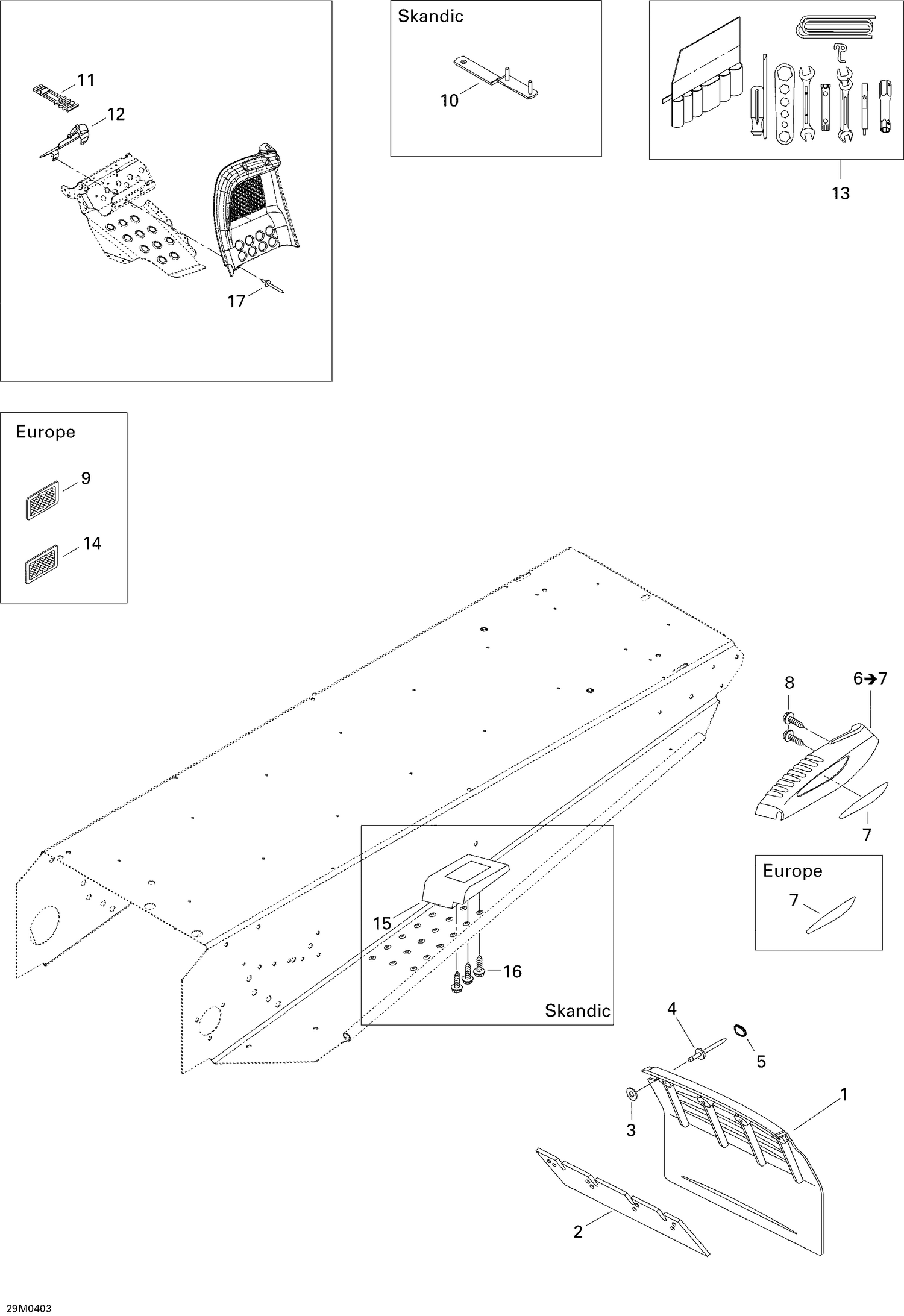

09- Utilities SKANDIC 550F
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000000 | Snow Guard |
| 2 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 3 | 517225900 | Flat Washer |
| 4 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 5 | 415073300 | Cap |
| 7 | 516000237 | RH Reflector, Red |
| 7 | 516000238 | LH Reflector, Red |
| 8 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 10 | 520000126 | Adjustment Wrench |
| 11 | 570069700 | LATCH - Call your local BRP dealership |
| 12 | 518321999 | Tool Kit Support |
| 13 | 529035881 | Tool Kit |
| 15 | 572088700 | RH Footrest |
| 16 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 572088800 | LH | Footrest 572088800 |
| 572088800 | Repose-Pieds | GA 572088800 |
