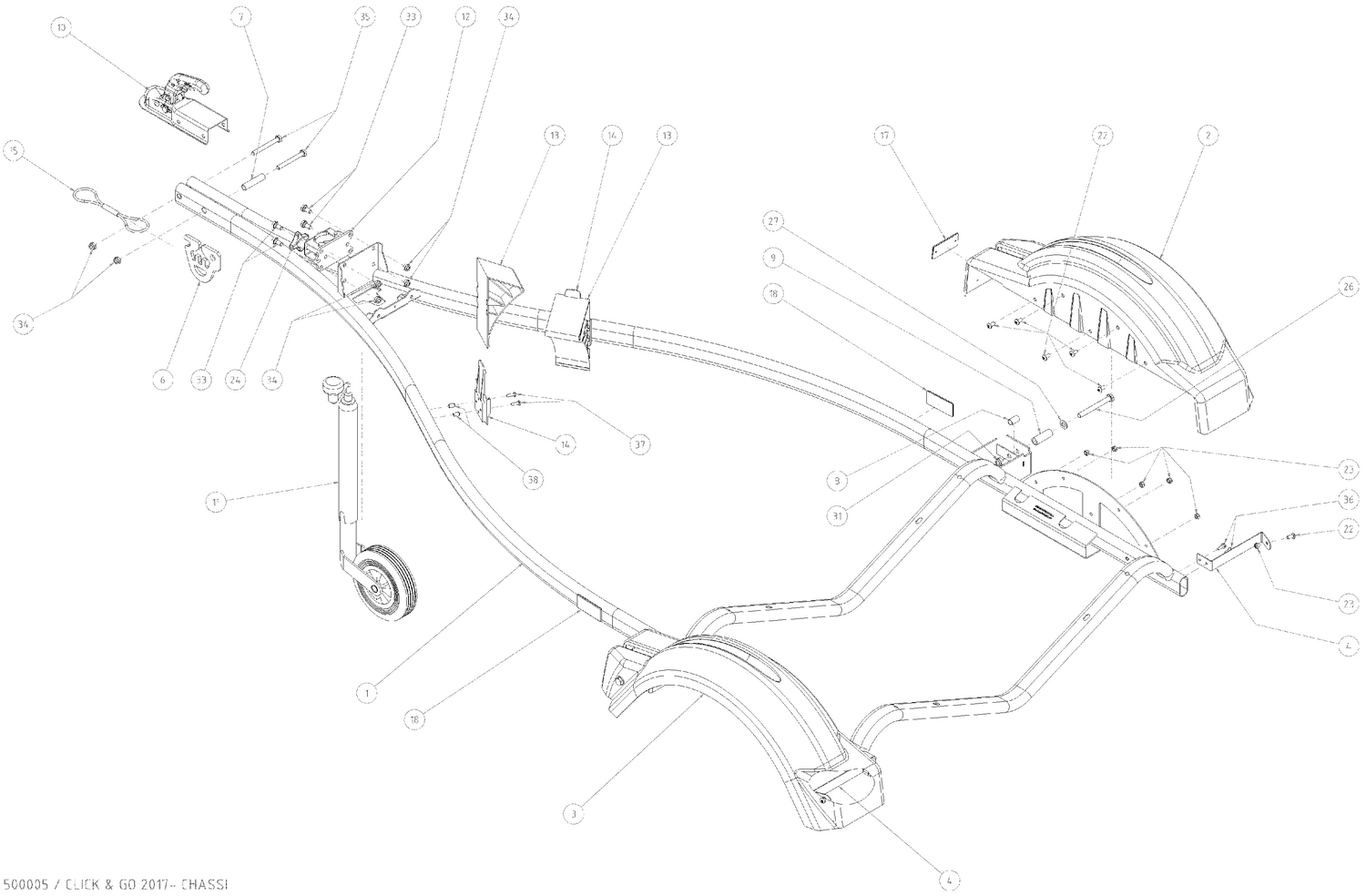

Chassis
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 619590434 | Frame |
| 2 | 619590473 | Mudguard C&G black right |
| 3 | 619590474 | Mudguard C&G black left |
| 4 | 619590464 | Mudguard Bracket - Call your local BRP dealership |
| 8 | 619590522 | Spacer |
| 9 | 619590522 | Spacer |
| 10 | 619590352 | Ball coupling |
| 26 | 619590492 | Hex. Cap Screw M12 x 110 |
| 27 | 619590505 | Washer Ø13,5 / 24 / 2 |
| 31 | 619590516 | Elastic Locking Nut M12 |
