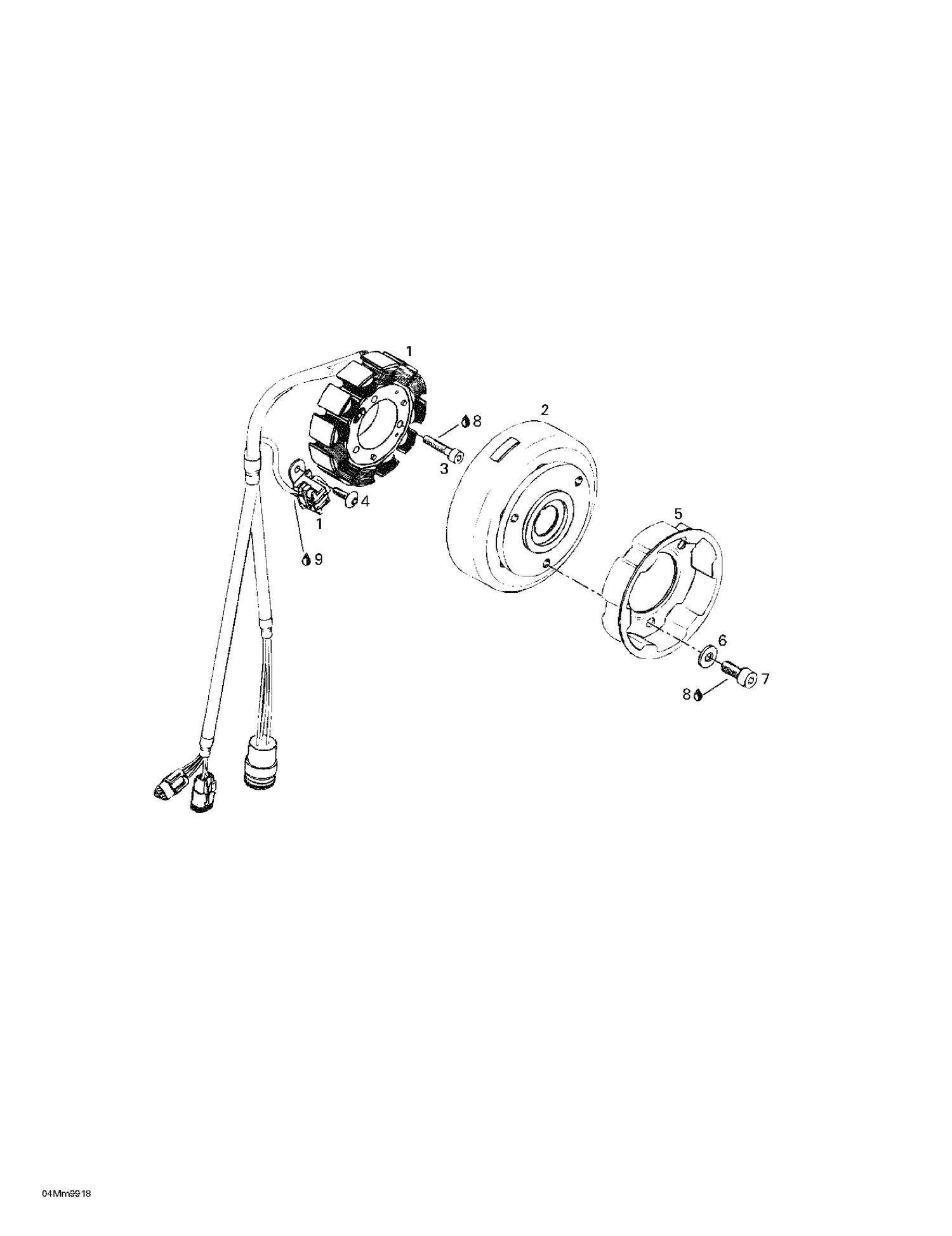

03- Magneto 12V 290W
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 410922915 | Stator Plate Ass'y |
| 2 | 410922921 | Flywheel |
| 3 | 205063044 | Socket Head Screw M6 X 30 This part replaces 222963065. |
| 4 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 5 | 420852590 | Starting Pulley This part replaces 420852419. |
| 6 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 7 | 420841520 | Socket Head Screw M8 X 12 |
| 8 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
