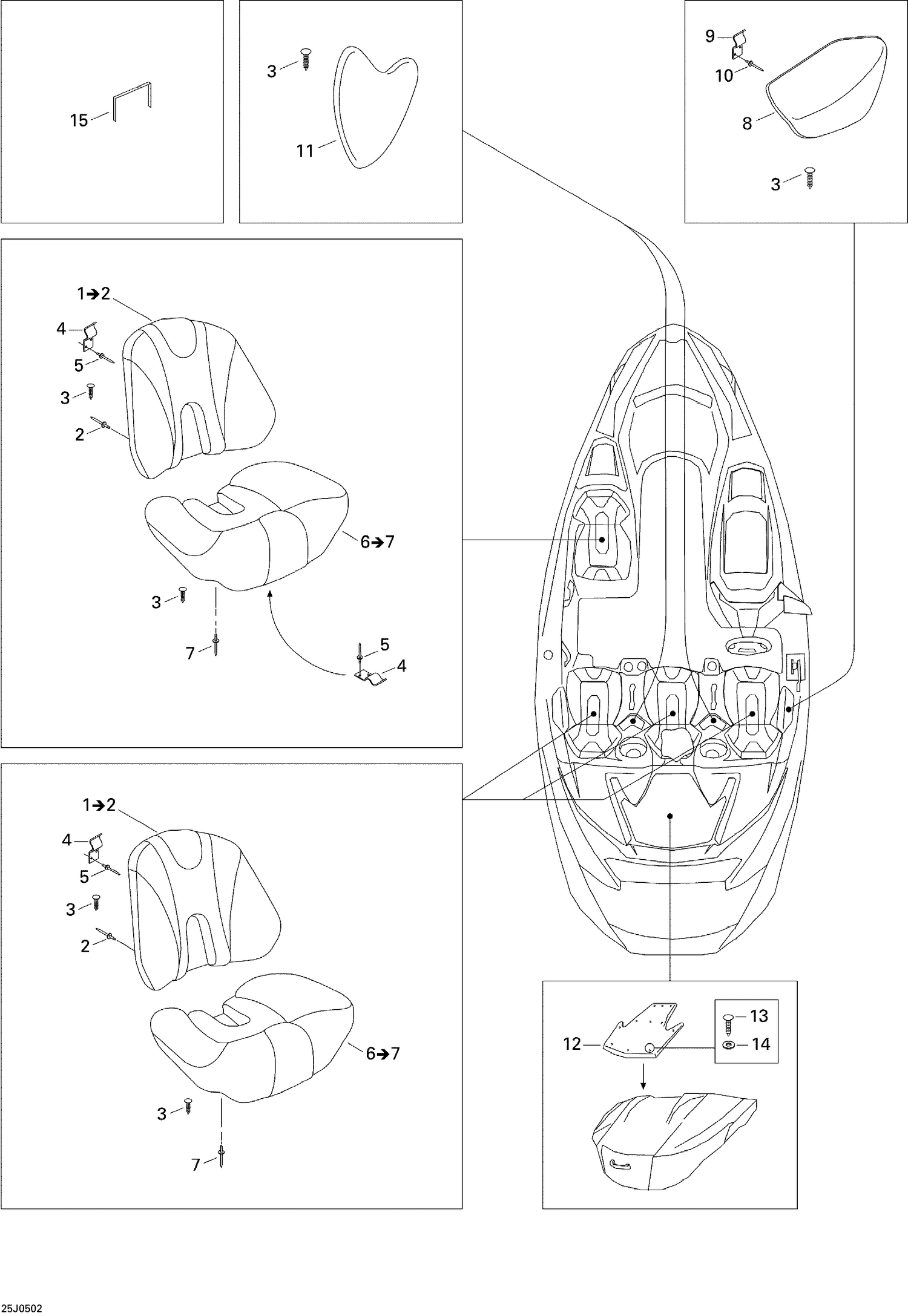

09- Seat
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293150005 | Pop Rivet 3/16" |
| 3 | 293730021 | Dart |
| 4 | 204613998 | SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 5 | 293150043 | Pop Rivet 3/16" |
| 7 | 293150005 | Pop Rivet 3/16" |
| 8 | 204613029 | LH Armrest Ass'y, Port Side |
| 8 | 204613031 | RH Armrest Ass'y, Starboard |
| 9 | 204613998 | SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 10 | 293150043 | Pop Rivet 3/16" |
| 11 | 204612878 | Elbowrest Ass'y |
| 13 | 293730014 | Black Dart |
| 14 | 234062600 | Flat Washer M6, Stainless |
