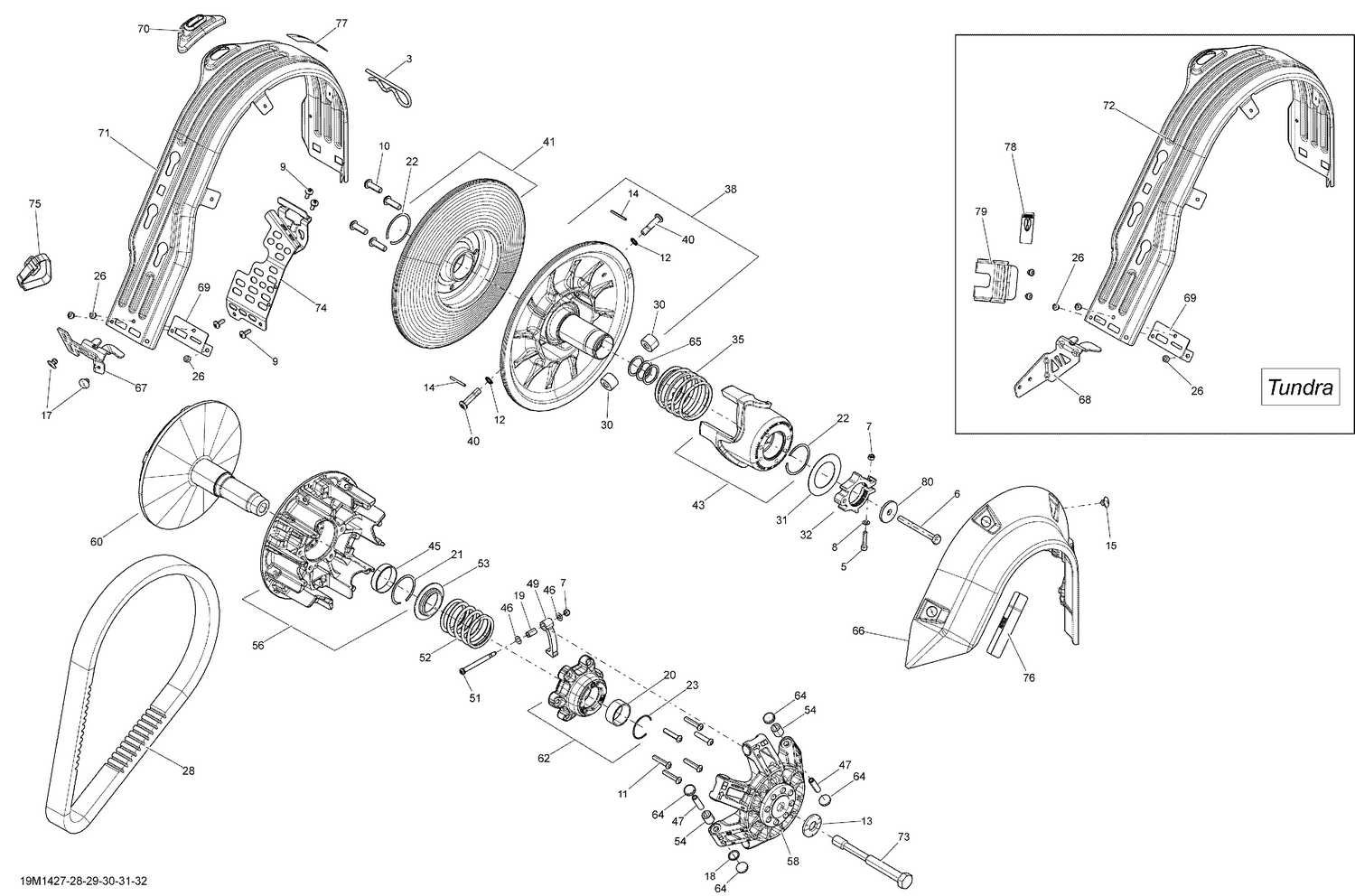

05- Pulley System
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 114045200 | Hair Pin |
| 5 | 205052544 | Socket Screw M5 X 25 |
| 6 | 207287544 | Hex. Cap Screw M8 X 75 |
| 7 | 232551414 | Elastic Stop Nut M5 |
| 8 | 234051410 | Flat Washer M5 |
| 9 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 10 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 11 | 250000580 | Torx Screw M6 X 30 |
| 12 | 250200009 | Lock Washer 8 mm |
| 13 | 250200144 | Conical Spring Washer M14 |
| 14 | 250400063 | Spring Pin M3 X 30 |
| 15 | 293150103 | Pop Rivet 3/16" |
| 17 | 293150104 | Pop Rivet 3/16" |
| 18 | 293300185 | O-Ring This part replaces 293300169. |
| 21 | 293370037 | Circlip |
| 22 | 293370049 | Circlip |
| 23 | 293370065 | Circlip |
| 26 | 390909200 | Avex Rivet |
| 28 | 417300585 | Drive Belt This part replaces 417300127. |
| 30 | 417127016 | Pulley Roller |
| 31 | 417127155 | Washer |
| 32 | 415129604 | Calibration Ass'y |
| 35 | 417127344 | Release Spring |
| 38 | 417127351 | Fixe Flange Ass'y |
| 40 | 417127294 | Pivot Stud |
| 41 | 417127366 | Slider Flange Ass'y |
| 43 | 417127391 | Cam Ass'y |
| 45 | 417222758 | Bushing |
| 46 | 417223255 | Thrust Washer |
| 47 | 417223257 | Roller Axle |
| 49 | 417223508 | Ramp 716 Ass'y |
| 51 | 417223694 | Ramp Axle |
| 52 | 417223747 | Clutch Spring |
| 53 | 417223752 | Seat Spring |
| 54 | 417223767 | Roller |
| 56 | 417224101 | Sliding Flange Ass'y This part replaces 417223855. |
| 58 | 417223865 | Governor Cup Ass'y |
| 60 | 417224091 | Fixed Flange Ass'y This part replaces 417223867. |
| 62 | 417223907 | Spring Cover Ass'y |
| 64 | 417223919 | Slider Shoe |
| 65 | 417300265 | Spacer |
| 66 | 417300356 | Side Protector |
| 67 | 417300360 | FRONT BELT GUARD BRACKET - Call your local BRP dealership |
| 68 | XXX | Not Available As Spare Parts |
| 69 | 417300380 | Reinforcement |
| 70 | 417300381 | Guide |
| 71 | 417300382 | Belt Guard |
| 72 | XXX | Not Available As Spare Parts |
| 73 | 417300432 | Pulley Drive Bolt |
| 74 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 75 | 508000599 | Velcro Strip |
| 76 | 516005503 | Decal English |
| 77 | 516005509 | Safety Belt Guard Decal |
| 78 | XXX | Not Available As Spare Parts |
| 79 | XXX | Not Available As Spare Parts |
