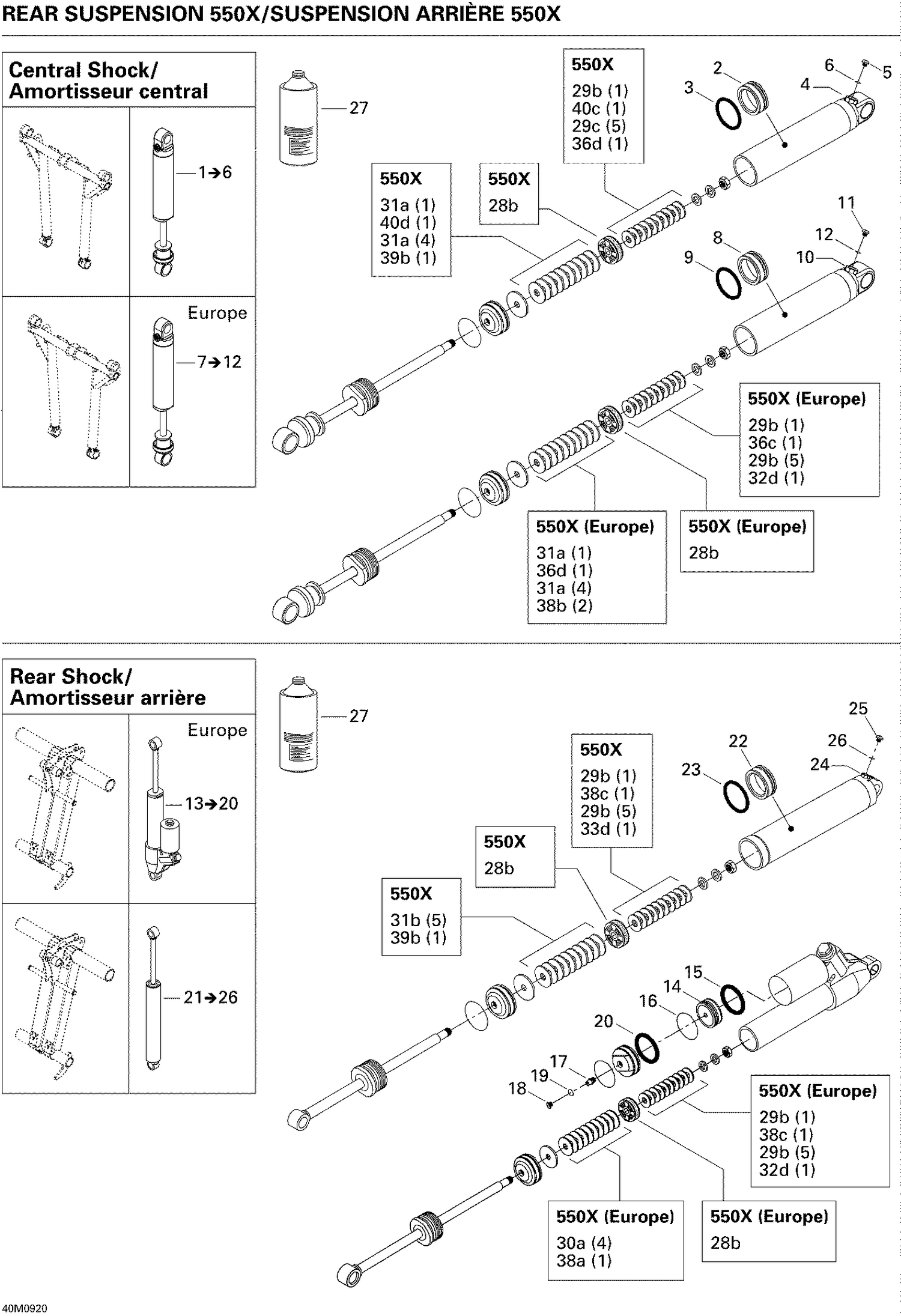

| Ref | Part Number | Description |
|---|
| 1 |
503190992 |
CENTER SHOCK - Call your local BRP dealership |
| 2 |
505070401 |
WASHER - Call your local BRP dealership |
| 3 |
415070100 |
SPRING - Call your local BRP dealership |
| 4 |
503193663 |
Protector This part replaces 503191126. |
| 5 |
503187500 |
Spring Guide |
| 6 |
706200881 |
Spring Stopper |
| 7 |
503189117 |
Urethane Bushing |
| 8 |
503189282 |
Bushing |
| 9 |
503189271 |
Bushing |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
XXX |
Not Available As Spare Parts |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
XXX |
Not Available As Spare Parts |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
XXX |
Not Available As Spare Parts |
| 24 |
XXX |
Not Available As Spare Parts |
| 25 |
XXX |
Not Available As Spare Parts |
| 26 |
503190991 |
REAR SHOCK - Call your local BRP dealership |
| 27 |
XXX |
Not Available As Spare Parts |
| 28a |
414888304 |
Piston (C36) |
| 28b |
Not |
Available As Spare Part - Piston (2 X 0.3-1) (C36) |
| 28c |
414888305 |
Piston (2 X 0.3-2) (C36) |
| 28d |
Not |
Available As Spare Part - Piston (2 x 0.3-3) (C36) |
| 28e |
414888306 |
Piston (2 X 0.3-4) (C36) |
| 28f |
Not |
Available As Spare Part - Piston (2 x 0.3-5) (C36) |
| 28g |
414888307 |
Piston (2 X 0.3-6) (C36) |
| 29a |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 29b |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 29c |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 29d |
Not |
Available As Spare Part - Leaf Valve Ø30 x 0.114 (C36) |
| 30a |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0.254 (C36) |
| 30b |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 30c |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 30d |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0.114 (C36) |
| 31a |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 31b |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 31c |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 31d |
Not |
Available As Spare Part - Leaf Valve Ø26 x 0.114 (C36) |
| 32a |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.254 (C36) |
| 32b |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.203 (C36) |
| 32c |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.152 (C36) |
| 32d |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.114 (C36) |
| 33a |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.254 (C36) |
| 33b |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 33c |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 33d |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.114 (C36) |
| 34a |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.254 (C36) |
| 34b |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.203 (C36) |
| 34c |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.152 (C36) |
| 34d |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 35a |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.254 (C36) |
| 35b |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 35c |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 35d |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 36a |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.254 (C36) |
| 36b |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.203 (C36) |
| 36c |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.152 (C36) |
| 36d |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.114 (C36) |
| 37a |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.254 (C36) |
| 37b |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 37c |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 37d |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.114 (C36) |
| 38a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.254 (C36) |
| 38b |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36) |
| 38c |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.152 (C36) |
| 38d |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.114 (C36) |
| 39a |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 39b |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 39c |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 39d |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 40a |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 40b |
414888335 |
Leaf Valve Ø15 X 0.203 (C36) |
| 40c |
414888336 |
Leaf Valve Ø15 X 0.152 (C36) |
| 40d |
414888337 |
Leaf Valve Ø15 X 0.114 (C36) |
| 41a |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.254 (C36) |
| 41b |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.203 (C36) |
| 41c |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.152 (C36) |
| 41d |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.114 (C36) |
| 42a |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.254 (C36) |
| 42b |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.203 (C36) |
| 42c |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.152 (C36) |
| 42d |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.114 (C36) |
| 43a |
503189538 |
Leaf Valve Ø12 X 0.254 (C36) |
| 43b |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 43c |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
