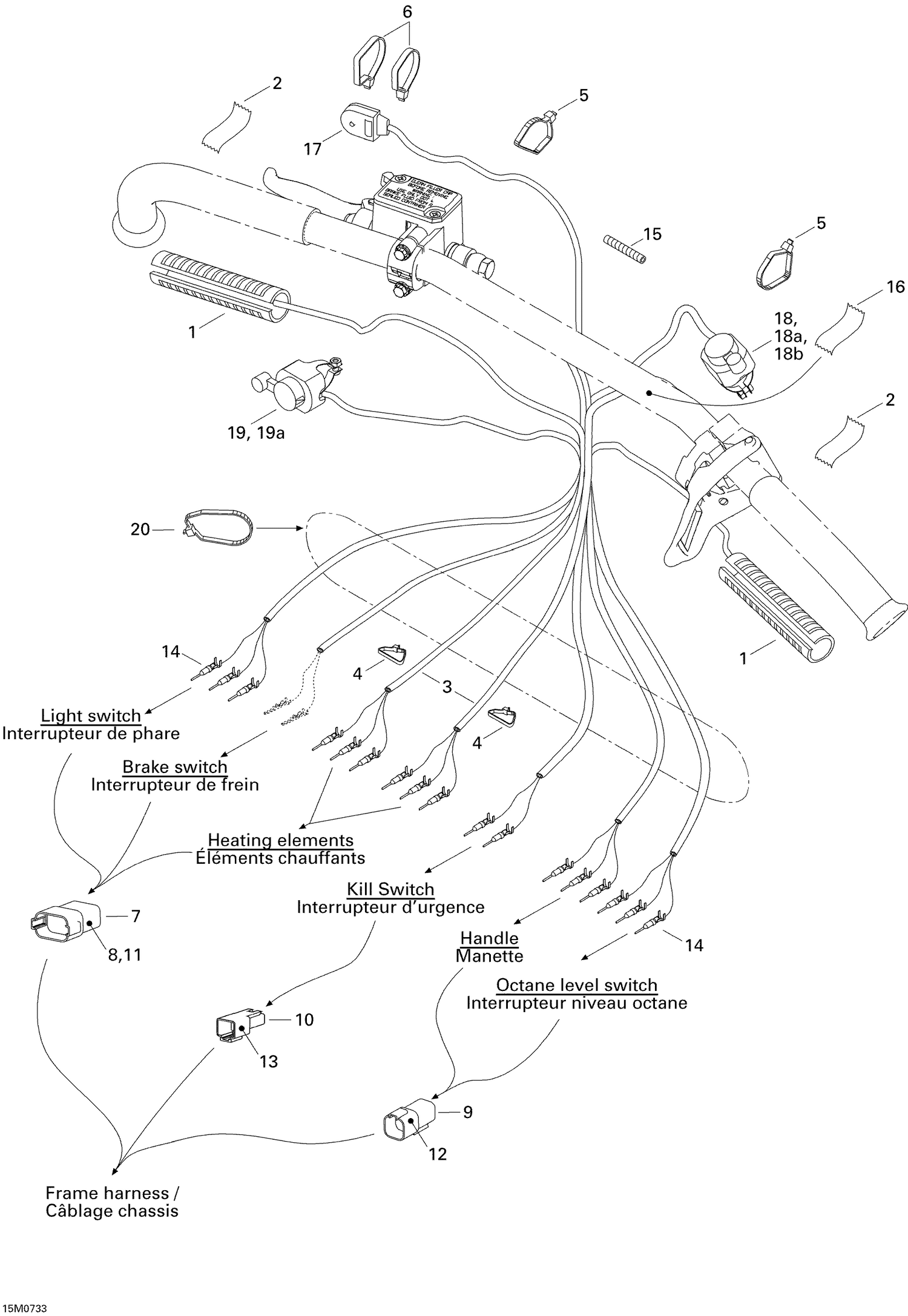

10- Steering Wiring Harness
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176139 | HEATER ELEMENT - Call your local BRP dealership |
| 2 | 293740005 | Tape |
| 3 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 4 | 293750002 | Tie Wrap 142 mm |
| 5 | 414115200 | Tie-Rap 180 mm |
| 6 | 293750002 | Tie Wrap 142 mm |
| 7 | 515175669 | MALE HOUSING - Call your local BRP dealership |
| 8 | 293000052 | Sealing Cap |
| 9 | 515175668 | Male Terminal Housing, 6 Circuits |
| 10 | 515175665 | Male Terminal Housing, 2 Circuits |
| 11 | 409015600 | MALE LOCK, 12 CIRCUITS - Call your local BRP dealership |
| 12 | 278000735 | Female Lock, 6 Circuits |
| 13 | 409207500 | Male Lock, 2 Circuits |
| 16 | 293740005 | Tape |
| 17 | 515176269 | Switch |
| 18a | 515177454 | KILL SWITCH - Call your local BRP dealership This part replaces 515175685. |
| 18b | 515175768 | MALE TERMINAL - Call your local BRP dealership |
| 19a | 515175768 | MALE TERMINAL - Call your local BRP dealership |
