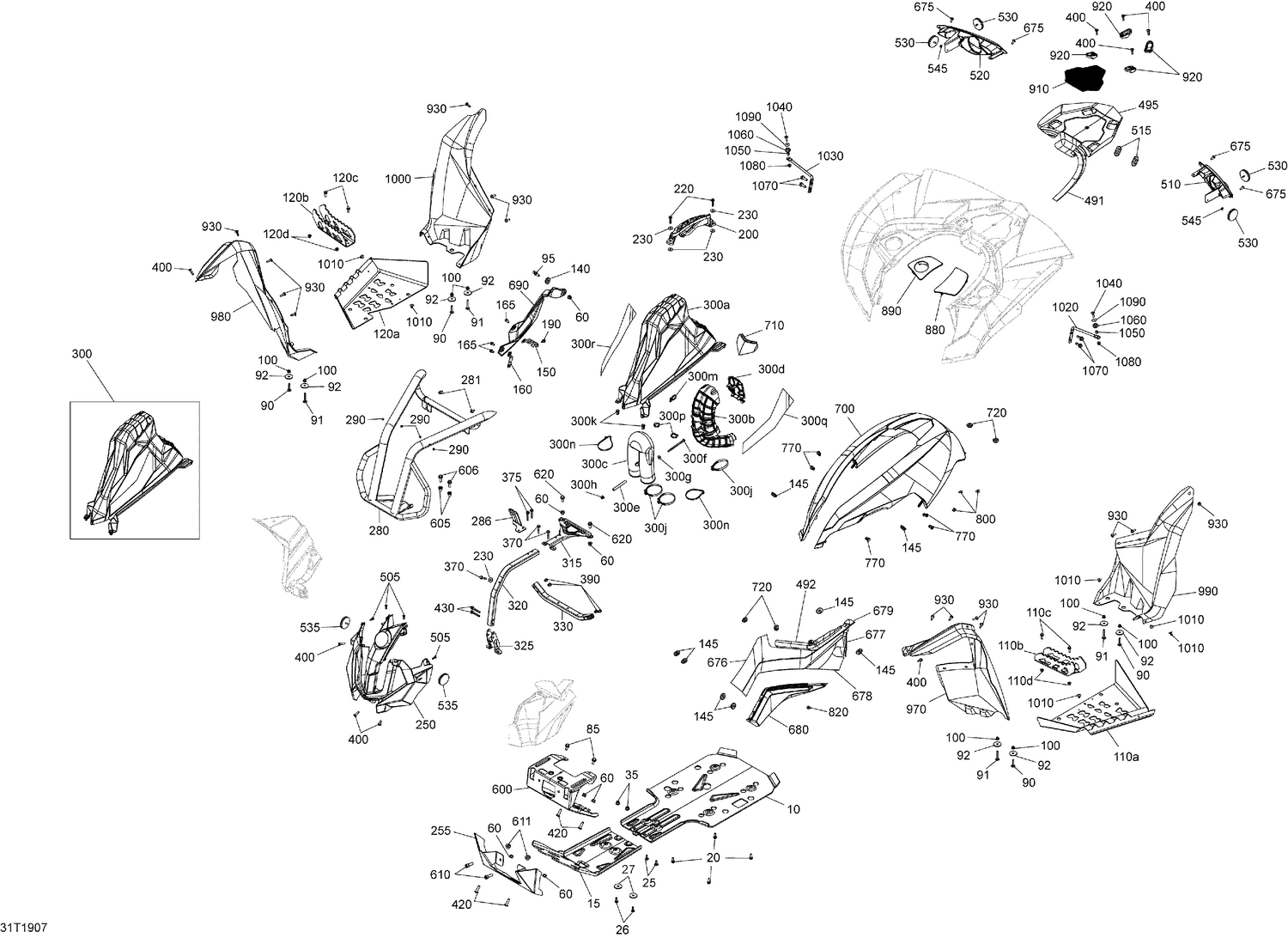

09- Body And Accessories - 1000R EFI - XMR
Parts (104)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705204031 | Central Skid Plate |
| 15 | 705205019 | Front Skid Plate |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 26 | 250000712 | Torx Screw M6 X 20 |
| 27 | 234062670 | Stainless Steel Flat Washer |
| 35 | 233281434 | Hex. Flange Elastic Nut M8 |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 85 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 91 | 207764550 | Carriage Bolt M6 X 45 |
| 92 | 250200158 | Flat Washer M8 |
| 95 | 250300039 | Ball Head Stud |
| 100 | 233261494 | Hex. Flange Elastic Nut M6 |
| 110a | 705016588 | Deep Black, LH Footrest This part replaces 705010490. |
| 110b | 705010493 | LH Foot Rest |
| 110c | 207662034 | Hex. Flange Screw M6 X 20 |
| 110d | 233261434 | Flange Elastic Nut M6 |
| 120a | 705017261 | Deep Black, RH Footrest -SB This part replaces 705010494. |
| 120b | 705010499 | RH Foot Rest |
| 120c | 207662034 | Hex. Flange Screw M6 X 20 |
| 120d | 233261434 | Flange Elastic Nut M6 |
| 140 | 709000582 | Grommet This part replaces 293720053. |
| 145 | 705000321 | Oval Washer |
| 150 | 705011461 | Engine Cover Support |
| 160 | 705003646 | Engine Cover Support |
| 165 | 210261250 | Hex. Flange Screw M6 X 12 |
| 190 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 200 | 705004416 | Lever Indicator |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 250 | 705010673 | Front Facia |
| 255 | 705009707 | Front Facia |
| 281 | 207682044 | Hex. Flange Screw M8 X 20 |
| 286 | 705009695 | Fuse Bracket |
| 290 | 293000121 | Plug |
| 300 | 705003556 | Dashboard |
| 300a | 705009685 | Hood XMR |
| 300b | 707001779 | Upper Air Inlet |
| 300c | 707001782 | Upper Air Outlet |
| 300e | 293900122 | Bushing |
| 300f | 230060060 | Hex. Screw M6 X 100 |
| 300g | 250200115 | Flat Washer M6 |
| 300h | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 300j | 293650091 | Norma Clamp |
| 300k | 293150230 | Tuflok Plastic Rivet |
| 300m | 710003168 | Dart Tie Rap 200MM |
| 300n | 293750008 | Tie Wrap 368 mm |
| 300p | 414115200 | Tie-Rap 180 mm |
| 315 | 705003599 | Bracket |
| 320 | 705016643 | Front Sectinal Bent Tube This part replaces 705003511. |
| 325 | 705009706 | Support |
| 330 | 705016093 | Bent Sectional Tube This part replaces 705003510. |
| 370 | 207663544 | Hex. Flange Screw M6 X 35 |
| 375 | 207664044 | Hex. Flange Screw M6 X 40 |
| 390 | 293450275 | Insert |
| 400 | 250000758 | Torx Screw M6 X 25 |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 430 | 207664544 | Hex. Flange Screw M6 X 45 |
| 491 | 705002475 | LH Lateral Panel, Camo |
| 492 | 705010559 | Heat Shield |
| 495 | 705005840 | Reflective Sheet |
| 505 | 250000720 | Torx Screw K50 X 16 |
| 510 | 705004731 | LH Rear Facia |
| 515 | 705003668 | Oblong Grommet |
| 520 | 705004732 | RH Rear Facia |
| 530 | 705011221 | Red Reflector |
| 535 | 705011222 | Amber Reflector |
| 545 | 517225900 | Flat Washer |
| 600 | 705009684 | Skid Plate |
| 605 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 606 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 610 | 205003044 | Socket Screw M10 x 30 |
| 611 | 233201434 | Hex. Flange Elastic Nut M10 |
| 620 | 207682044 | Hex. Flange Screw M8 X 20 |
| 675 | 250000755 | Torx Screw M6 X 16 |
| 676 | 705005620 | Reflective Sheet |
| 677 | 705010557 | Heat Shield |
| 678 | 705005622 | Reflective Sheet |
| 679 | 705010558 | Heat Shield |
| 680 | 705004988 | Panel Extension |
| 690 | 705004966 | Engine Cover |
| 710 | 705002353 | Cap |
| 720 | 705003264 | Grommet |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 800 | 414479100 | Clip |
| 820 | 293830005 | Rubber Bumper |
| 880 | 705017923 | LH Rear Body Panel Cap This part replaces 705001910. |
| 890 | 705017924 | RH Rear Body Panel Cap This part replaces 705002420. |
| 910 | 705002343 | Rear Carpet |
| 920 | 705017925 | Hook This part replaces 705002342. |
| 930 | 250000712 | Torx Screw M6 X 20 |
| 970 | 705009736 | Mudguard |
| 980 | 705009737 | RH Front Mudguard |
| 990 | 705009738 | Mudguard |
| 1000 | 705009739 | Mudguard |
| 1010 | 293150104 | Pop Rivet 3/16" |
| 1020 | 705010314 | LH Fender Support |
| 1030 | 705010315 | RH Fender Support |
| 1040 | 250000758 | Torx Screw M6 X 25 |
| 1050 | 293900105 | Bushing |
| 1060 | 709000582 | Grommet This part replaces 293720053. |
| 1070 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 1080 | 233261434 | Flange Elastic Nut M6 |
