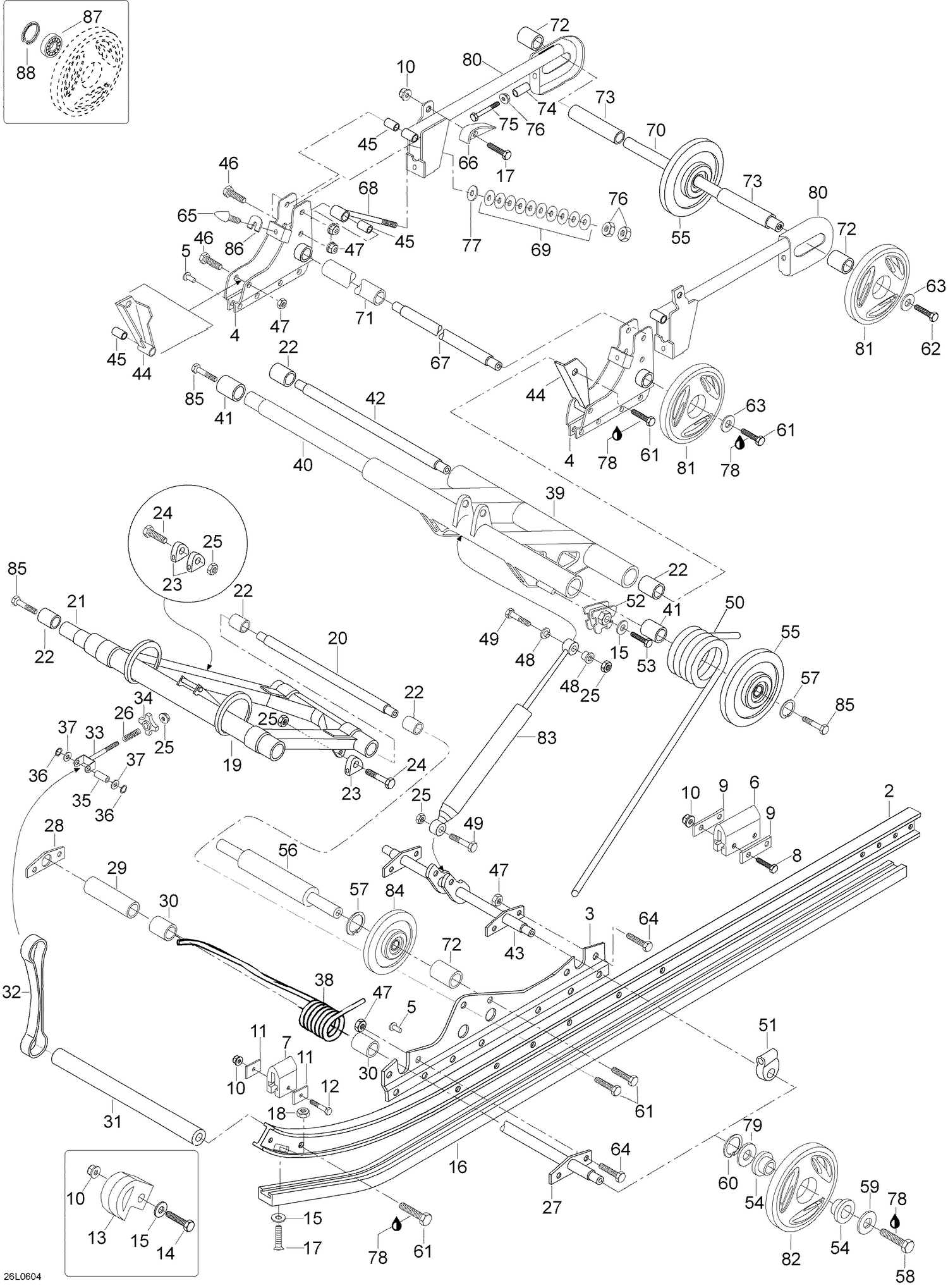

| Ref | Part Number | Description |
|---|
| 1 |
5142865 |
L.H. Runner ass'y |
| 2 |
5142864 |
RUNNER - Call your local BRP dealership |
| 3 |
5344810 |
L.H. Support |
| 3 |
5344811 |
R.H. Support |
| 4 |
539672 |
L.H. Support |
| 4 |
539673 |
R.H. Support |
| 5 |
544212 |
Rivet - Call your local BRP dealership |
| 6 |
570023100 |
Rubber stopper |
| 7 |
5442328 |
STOPPER-RUBBER - Call your local BRP dealership |
| 8 |
40002 |
Hex. screw M6 x 40 |
| 9 |
548387 |
Support plate - Call your local BRP dealership |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 11 |
548470 |
Plate |
| 12 |
40032 |
Hex. screw M6 x 30 |
| 13 |
605348954 |
Runner protector |
| 14 |
40031 |
Hex. screw M6 x 25 |
| 15 |
20003 |
Washer A6,4 |
| 16 |
549582 |
Shoe runner |
| 17 |
40030 |
Hex. screw M6 x 20 |
| 18 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 19 |
5245898 |
Front Arm Weld - Call your local BRP dealership |
| 20 |
549695 |
Axle |
| 21 |
542793 |
Axle |
| 22 |
542770 |
Sleeve |
| 23 |
548799 |
Spring support |
| 24 |
40014 |
Hex. screw M10 x 40 |
| 25 |
33012 |
Elastic stop nut M10 |
| 26 |
414460600 |
SPRING - Call your local BRP dealership |
| 27 |
539653 |
AXEL - Call your local BRP dealership |
| 28 |
548469 |
Support Plate - Call your local BRP dealership |
| 29 |
5440313 |
Spacer - Call your local BRP dealership |
| 30 |
548841 |
Support Spacer - Call your local BRP dealership |
| 31 |
549718 |
SHAFT-CROSS - Call your local BRP dealership |
| 32 |
5442604 |
STOPPER STRAP - Call your local BRP dealership |
| 33 |
5441643 |
Bracket weld - Call your local BRP dealership |
| 34 |
572034000 |
ADJUSTER KNOB - Call your local BRP dealership |
| 35 |
5441645 |
Pin |
| 36 |
41035 |
Circlip |
| 37 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 38 |
5241177 |
L.H. Spring |
| 38 |
5241178 |
R.H. Spring |
| 39 |
5343493 |
Reararm - Call your local BRP dealership |
| 40 |
5343492 |
Rear cross shaft |
| 41 |
31046 |
Slide Bearing |
| 42 |
549656 |
Swing shaft - Call your local BRP dealership |
| 43 |
539655 |
Shaft |
| 44 |
5440349 |
Lever, L.H. |
| 44 |
5440350 |
Lever, R.H. |
| 45 |
545758 |
Sleeve |
| 46 |
207084544 |
Hex. Screw M8 X 45 This part replaces 40008. |
| 47 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 48 |
544417 |
Shock Spacer - Call your local BRP dealership |
| 49 |
40017 |
Hex. screw M10 x 50 |
| 50 |
538805 |
L.H. Spring |
| 50 |
538806 |
R.H. Spring |
| 51 |
548804 |
Spring support |
| 52 |
572030800 |
LH ADJUST CAM - Call your local BRP dealership |
| 52 |
572030900 |
RH ADJUST CAM - Call your local BRP dealership |
| 53 |
40114 |
Hex. screw M6 x 10 |
| 54 |
503189534 |
Cushion |
| 55 |
503194127 |
Wheel 165mm This part replaces 503189568. |
| 56 |
549680 |
SHAFT SUPPORT - Call your local BRP dealership |
| 57 |
31001 |
Circlip |
| 58 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 59 |
503183100 |
Washer |
| 60 |
293370056 |
Circlip 20X1.75 DIN471 This part replaces 31007. |
| 61 |
40335 |
Hex. screw M10 x 30 |
| 62 |
40050 |
Hex. screw with cap M10 x 35 |
| 63 |
503183300 |
Washer, hardened |
| 64 |
40035 |
Hex. screw M8 x 16 |
| 65 |
535455 |
Rubber Stopper - Call your local BRP dealership |
| 66 |
548262 |
Protector |
| 67 |
541816 |
Shaft |
| 68 |
5440377 |
BOLT-EYE ADJUSTER - Call your local BRP dealership |
| 69 |
25004 |
Cup Spring |
| 70 |
5343284 |
SHAFT - Call your local BRP dealership |
| 71 |
541815 |
Sleeve - Call your local BRP dealership |
| 72 |
546577 |
SPACER - Call your local BRP dealership |
| 73 |
5443285 |
Bushing - Call your local BRP dealership |
| 74 |
605633002 |
Nut This part replaces 605452332. |
| 75 |
40239 |
Hex. screw M10 x 100 |
| 76 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 77 |
234002410 |
Flat Washer 10 mm This part replaces 20011. |
| 78 |
293800060 |
Loctite 243, 10ml blue |
| 79 |
31091 |
Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership |
| 80 |
605252504 |
EXTENSION WELDELD LH - Call your local BRP dealership |
| 80 |
605252505 |
EXTENSION WELDELD RH - Call your local BRP dealership |
| 81 |
503190856 |
Idler wheel 165mm/Full Moon |
| 82 |
503190797 |
Idler wheel 135mm/Full Moon |
| 83 |
23133 |
SHOCK - Call your local BRP dealership This part replaces 23016. |
| 84 |
503191029 |
Sisätukipyörä 135mm, musta |
| 85 |
40314 |
Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership |
| 86 |
5440645 |
Shim plate |
| 87 |
293350115 |
Ball Bearing This part replaces 503190795. |
