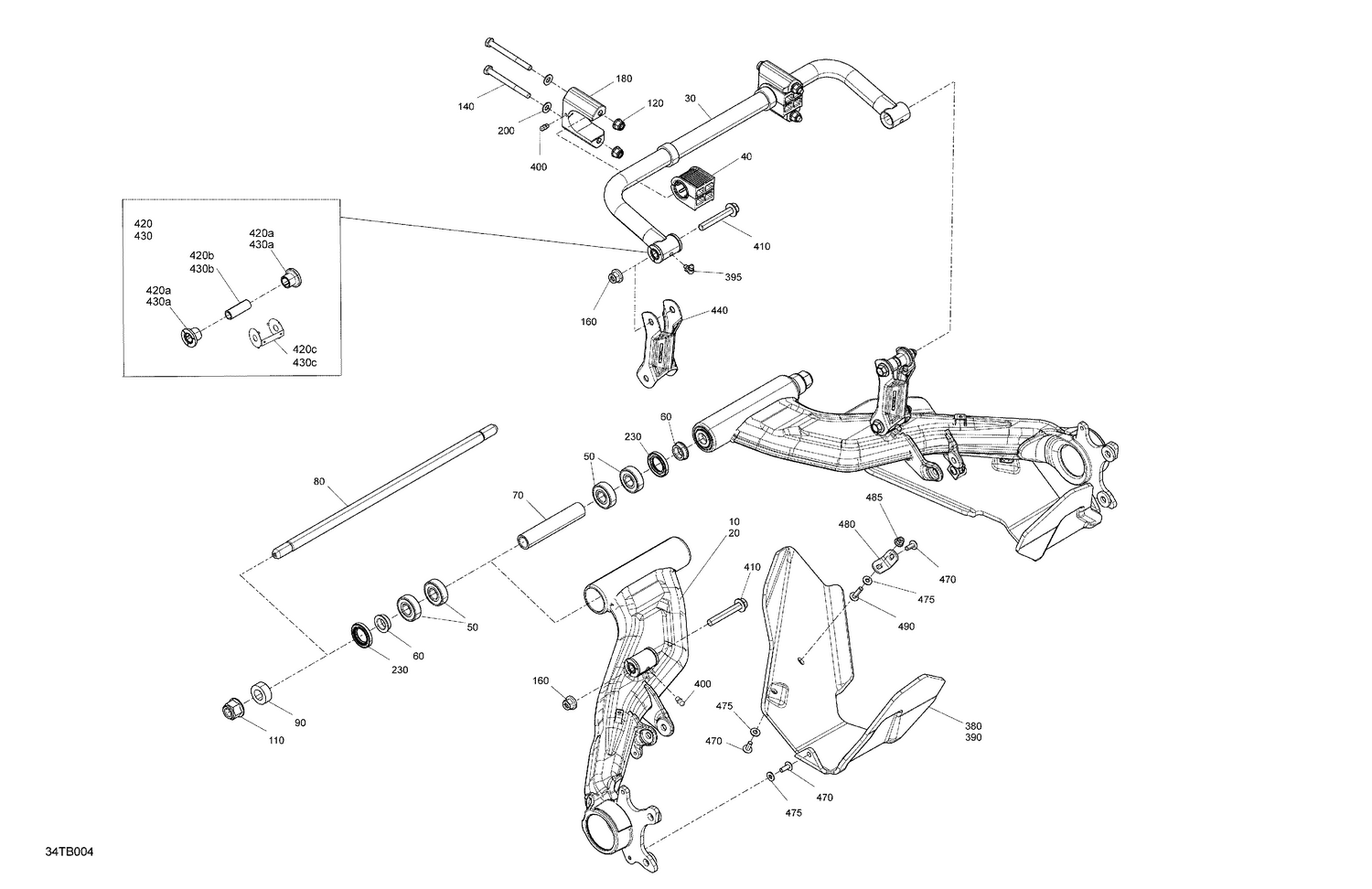

05- Suspension - Rear Components
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706003041 | LH Swing Arm |
| 20 | 706003042 | RH Swing Arm |
| 30 | 706003050 | Sway Bar |
| 40 | 706004641 | Stabilizer Bar Bushing |
| 50 | 293350145 | Ball Bearing |
| 60 | 706001282 | Spacer |
| 70 | 706002259 | Spacer |
| 80 | 706001664 | Axial Pivot M16 |
| 90 | 250200112 | Flat Washer M17 |
| 110 | 233211466 | Hex. Flange Elastic Nut M16 |
| 120 | 233281414 | Hex. Flange Elastic Nut M8 |
| 140 | 250001035 | Hex. Screw M8 X 85 |
| 160 | 233201436 | Hex. Flange Elastic Nut M10 |
| 180 | 706001099 | Bushing Holder |
| 200 | 234081410 | Flat Washer 8 mm |
| 230 | 293200144 | Seal |
| 390 | Not | Available As Spare Part - RH Arm Protector |
| 395 | 293550056 | Grease Fitting 90° |
| 400 | 250000315 | Grease Fitting |
| 410 | 207606536 | Hex. Flange Screw M10 X 65 |
| 420a | Not | Available As Spare Part - Cushion |
| 420b | Not | Available As Spare Part - Inner Bushing |
| 420c | Not | Available As Spare Part - Wear Plate |
| 430a | Not | Available As Spare Part - Cushion |
| 430b | Not | Available As Spare Part - Inner Bushing |
| 430c | Not | Available As Spare Part - Wear Plate |
| 440 | 706001020 | Sway Bar Linkage |
| 470 | 250000534 | Tork Screw M6 X 16 |
| 475 | 250200039 | Flat Washer |
| 480 | 705013284 | Bended Plate |
| 485 | 233261494 | Hex. Flange Elastic Nut M6 |
