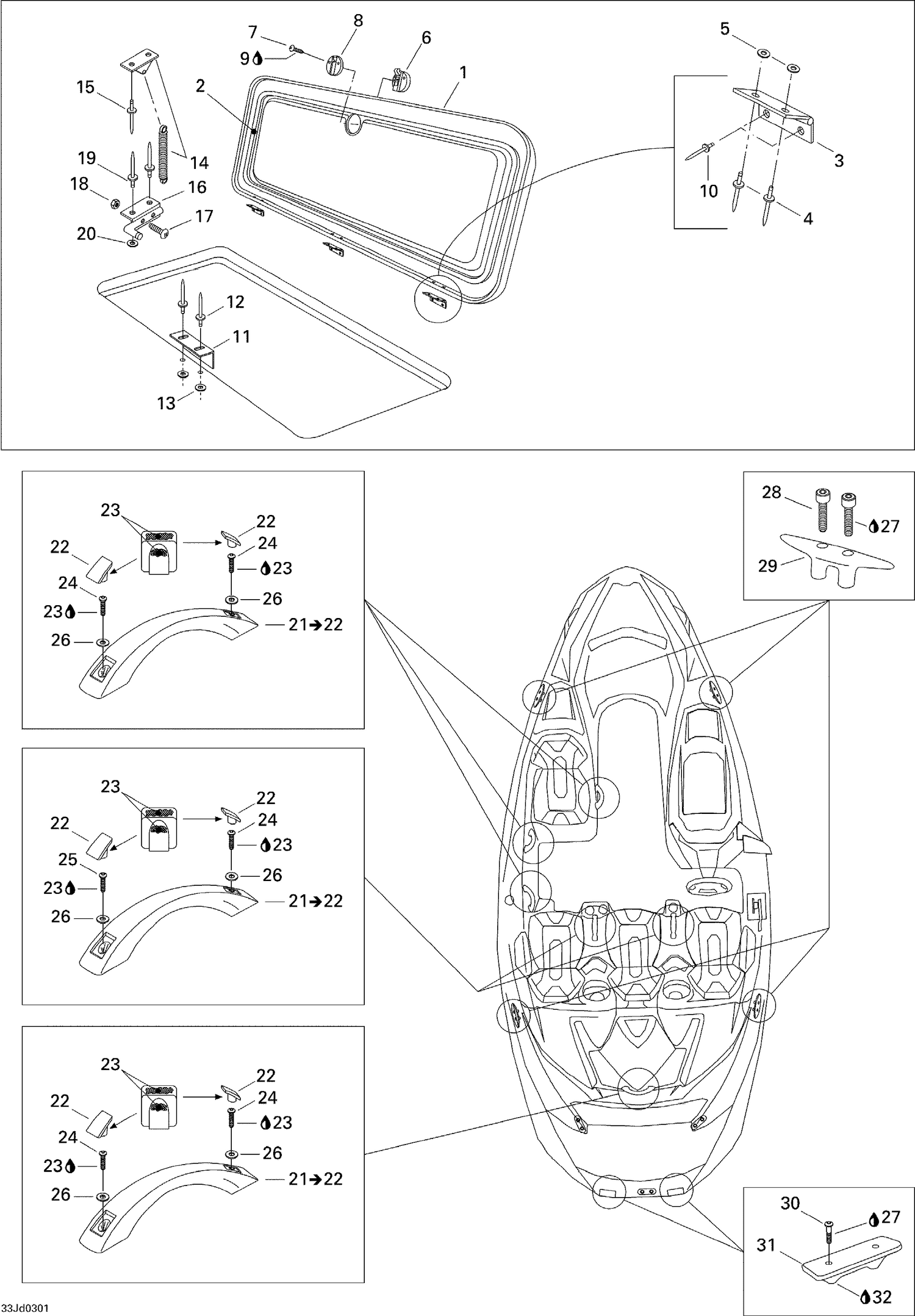

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Central Cover |
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
204072601 |
HINGE - Call your local BRP dealership This part replaces 291000538. |
| 4 |
293150088 |
Pop Rivet 3/16" |
| 5 |
234051600 |
Flat Washer M5, Stainless |
| 6 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 7 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 8 |
204070958 |
CUP BRACKET - Call your local BRP dealership |
| 9 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 10 |
293150088 |
Pop Rivet 3/16" |
| 11 |
204070060 |
KEEPER - Call your local BRP dealership |
| 12 |
293150088 |
Pop Rivet 3/16" |
| 13 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 14 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 15 |
293150055 |
RIVET_POP 3/16 - Call your local BRP dealership |
| 16 |
291000719 |
Spring Bracket |
| 17 |
Not |
Available As Spare Part - Phillips Screw |
| 18 |
Not |
Available As Spare Part - Hex. Nut |
| 19 |
293150043 |
Pop Rivet 3/16" |
| 20 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 22 |
204073190 |
GRIP HANDLE, BLACK - Call your local BRP dealership This part replaces 204070207. |
| 24 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 25 |
205464060 |
Socket Screw M6 X 40 |
| 26 |
234061600 |
Stainless Flat Washer M6 |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
204070592 |
CLEAT - Call your local BRP dealership |
| 29 |
205367060 |
Socket Head Screw M6 X 70 |
| 30 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 31 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
