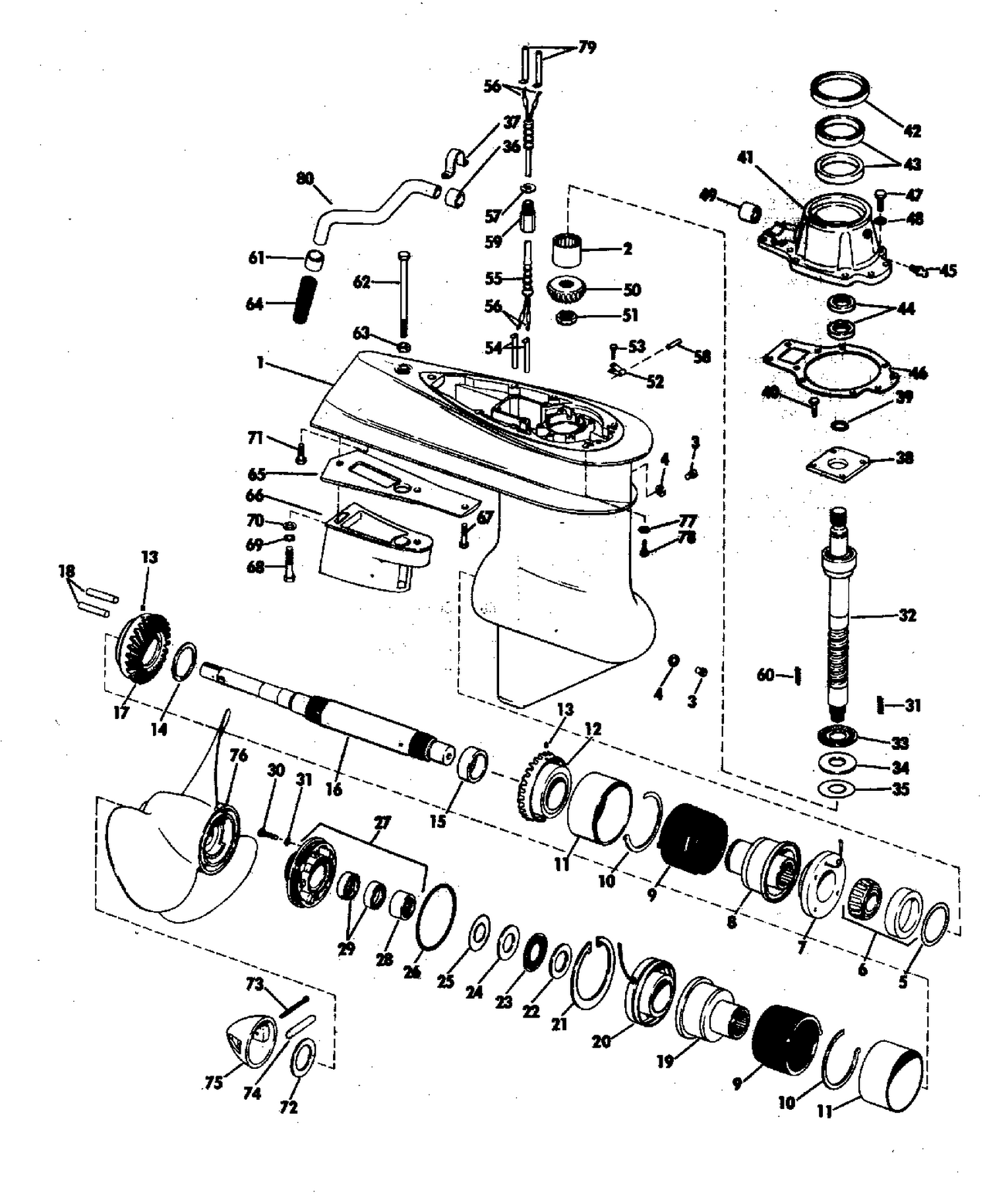

LOWER GEARCASE GROUP 120, 155, 210 HP

LOWER GEARCASE GROUP 120, 155, 210 HP

Parts (88)

RefPart NumberDescription
1 0382383 GEARCASE & BEARING ASSEMBLY
2 0380439 ROLLER BEARING, Drive shaft
5 0313292 SHIM, Bearing to gearcase, .002"
5 0313293 SHIM, Bearing to gearcase, .003"
5 0313294 SHIM, Bearing to gearcase, .004"
5 0313295 SHIM, Bearing to gearcase, .005"
5 0313296 SHIM, Bearing to gearcase, .006"
5 0313297 SHIM, Bearing to gearcase, .007"
6 0379503 BEARING ASSY, Prop shaft
7 0382366 COIL & LEAD, Front
8 0382334 CLUTCH HUB ADDY.,Forward
9 0313455 SPRING, Clutch hub
10 0310428 SPACER
11 0315034 SLEEVE, Spring
12 0382270 GEAR & BUSHING, Forward
13 0311944 SET SCREW
14 0312007 RETAINING RING
15 0313310 SPACER, Propeller shaft
16 0382337 PROPELLER SHAFT
17 0313311 GEAR, Reverse
18 0381025 NEEDLE BEARING SET
19 0382336 CLUTCH HUB & RETAINER, Reverse
20 0382367 COIL & LEAD, Rear
21 0310416 RETAINING RING
22 0310413 THRUST WASHER
23 0378262 BEARING, Thrust, pinion
24 0307836 THRUST WASHER
25 0313192 SHI,Thrust washer,.002"
25 0313193 SHIM BRG.TO PINION,.003"
25 0313194 PINION,.005"
25 0313195 SHIM, Bearing to pinion , .005"
25 0313196 SHIM, Bearing to pinion .006"
25 0313197 SHIM, Bearing to pinion 0.007 inch
25 0313198 SHIM, Bearing to pinion 0.008 inch
25 0313199 SHIM, Bearing to pinion 0.009 inch
25 0313200 SHIM, Bearing to pinion 0.010 inch
26 0310414 O-RING, Gearcase head
27 0381849 GEARCASE HEAD ASSY
30 0310412 SCREW, Gearcase head
31 0307853 O RING
32 0382285 DRIVESHAFT & BEARING ASSY. This part replaces 0382955.
33 0386719 THRUST BEARING, Rev gear This part replaces 0382257.
34 0313259 THRUST WASHER
35 0313192 SHI,Thrust washer,.002"
35 0313193 SHIM BRG.TO PINION,.003"
35 0313194 PINION,.005"
35 0313195 SHIM, Bearing to pinion , .005"
35 0313196 SHIM, Bearing to pinion .006"
35 0313197 SHIM, Bearing to pinion 0.007 inch
35 0313198 SHIM, Bearing to pinion 0.008 inch
35 0313199 SHIM, Bearing to pinion 0.009 inch
36 0310488 BISHING,Water tube
37 0313729 CLAMP, Bushing
38 0313309 PLATE, Bearing
40 0553556 SCREW, Housing to cylinder
41 0980014 SWIVEL BEARING ASSY This part replaces 0382409.
46 0313368 GASKET
47 0909533 SCREW, Pressure relief valve cover This part replaces 0309646.
49 0310597 GROMMET, Water intake tube
50 0313258 PINION GEAR
51 0907866 LOCKNUT This part replaces 0310422.
52 0510267 CLAMP, Coil lead to gearcase
55 0379628 CABLE, Shift
57 0310645 RETAINER, Cable
58 0313929 SLEEVE, Coil lead, forward
59 0310644 TUBE, Shift cable
61 0310597 GROMMET, Water intake tube
62 0310590 SCREW, Rudder pivot
63 0310677 WASHER, Pivot screw
64 0310474 SCREEN, Water intake
65 0312252 PLATE, Rubber to gearcase
66 0312253 RUDDER
67 0310477 SCREW, Plate
68 0552898 SCR,Grc to hsg,short This part replaces 0310596.
69 0307708 RONDELLE GROWER This part replaces 0302865.
72 0310594 THRUST WASHER
73 0310595 COTTER PIN
74 0310956 DRIVE PIN
75 0379798 PROPELLER NUT
76 0381185 PROPELLER, 14 x 14
76 0381186 PROPELLER, 14 x 16
76 0381187 PROPELLER, 14 x 18
76 0382017 PROPELLER, 14 x 12
76 0382676 P{ROPELLER, 14 x 11
76 0383287 PROPELLER, 14 x 20
78 0306503 SCREW, Short
0382285 0382285 DRIVESHAFT & BEARING ASSY.
0383228 0383228 GEARCASE ASSY., Complete
