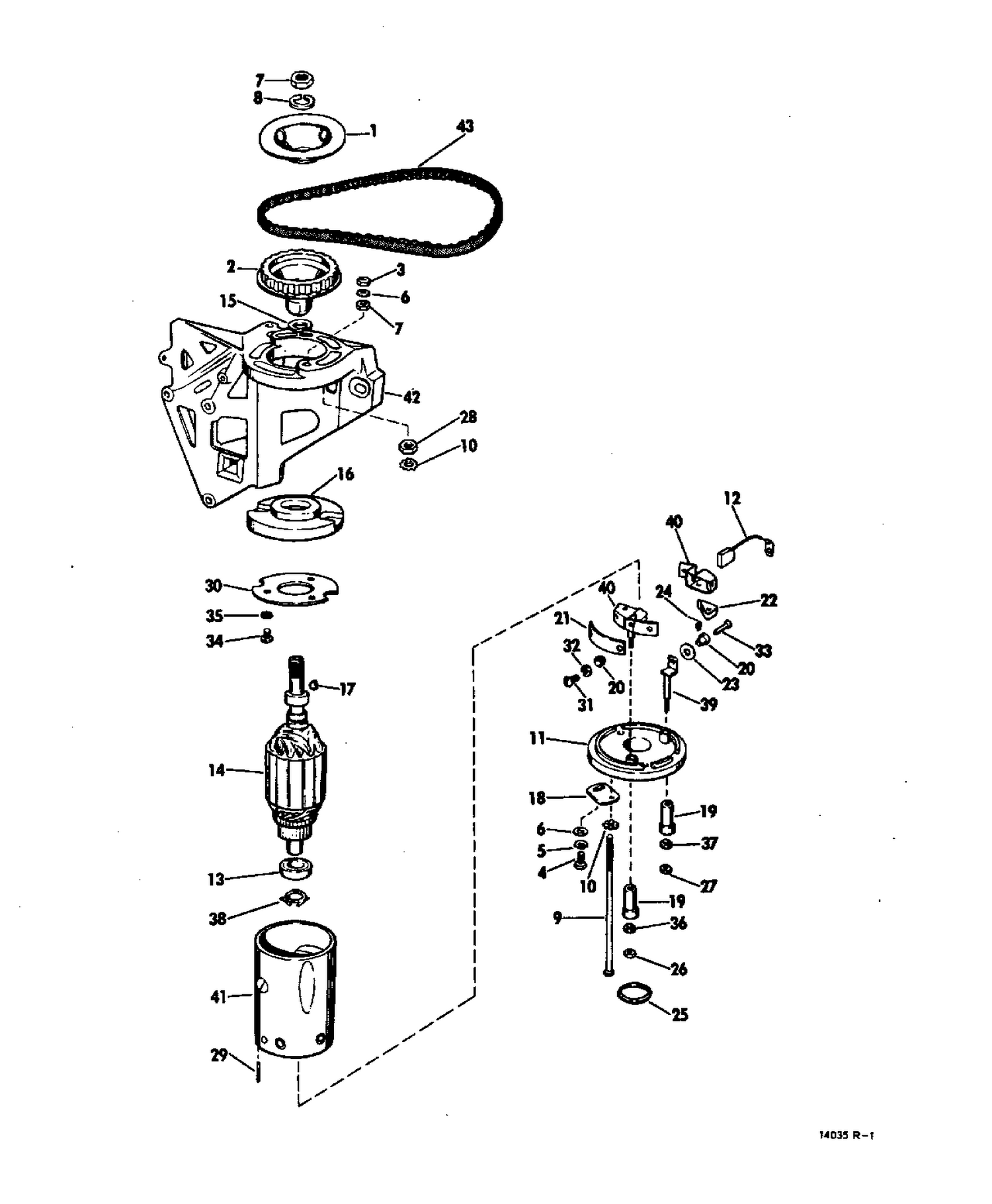

| Ref | Part Number | Description |
|---|
| 1 |
0305415 |
FLANGE, Generator pulley |
| 2 |
0305411 |
PULLEY, Generator |
| 4 |
0306419 |
SCREW |
| 6 |
0306407 |
LOCCKWASHER,Cover latch |
| 7 |
0130981 |
NUT |
| 8 |
0303807 |
LOCKWASHER |
| 9 |
0383402 |
SCREW, Package |
| 11 |
0378165 |
HEAD, Commutator end |
| 12 |
0277745 |
BRUSH SET |
| 13 |
0378162 |
BEARING, Communtator |
| 14 |
0381144 |
ARAMTURE AND SPACER ASSEMBLY |
| 16 |
0378163 |
DRIVE END HEAD ASSY |
| 17 |
0306399 |
KEY |
| 18 |
0204130 |
STRAP, Bracket |
| 19 |
0308127 |
BRUSHING, Terminal stud, insulated |
| 20 |
0308128 |
BUSHING, Insulated |
| 21 |
0379786 |
BRUSH HOLDER REPAIR KIT, Insulated |
| 22 |
0308147 |
ARM, Brush |
| 23 |
0308148 |
WASHER, Insulating |
| 24 |
0308150 |
SPRING, Brush |
| 25 |
0308151 |
COVER, Bearing |
| 26 |
0308153 |
NUT |
| 27 |
0308154 |
NUT, Field terminal stud |
| 28 |
0308155 |
NUT, Field terminal stud |
| 29 |
0308156 |
DOWEL PIN, Frame |
| 30 |
0308157 |
RETAINER, Bearing |
| 31 |
0302105 |
SCREW, Brush lead |
| 32 |
0306506 |
LOCKWASHER |
| 33 |
0308159 |
RIVET, Field terminal |
| 34 |
0308161 |
SCREW, Retainer |
| 36 |
0308162 |
WASHER, Armature terminal |
| 37 |
0308163 |
WASHER, Field terminal |
| 38 |
0308164 |
WASHER, Spring |
| 39 |
0378470 |
STUD, Field terminal |
| 40 |
0379787 |
BRUSH HOLDER REPAIR KIT, Ground |
| 41 |
0379626 |
FRAME & FIELD COIL |
| 42 |
0305679 |
BRACKET, Generator mounting |
| 0378160 |
0378160 |
GENERATOR ASSEMBLY |
