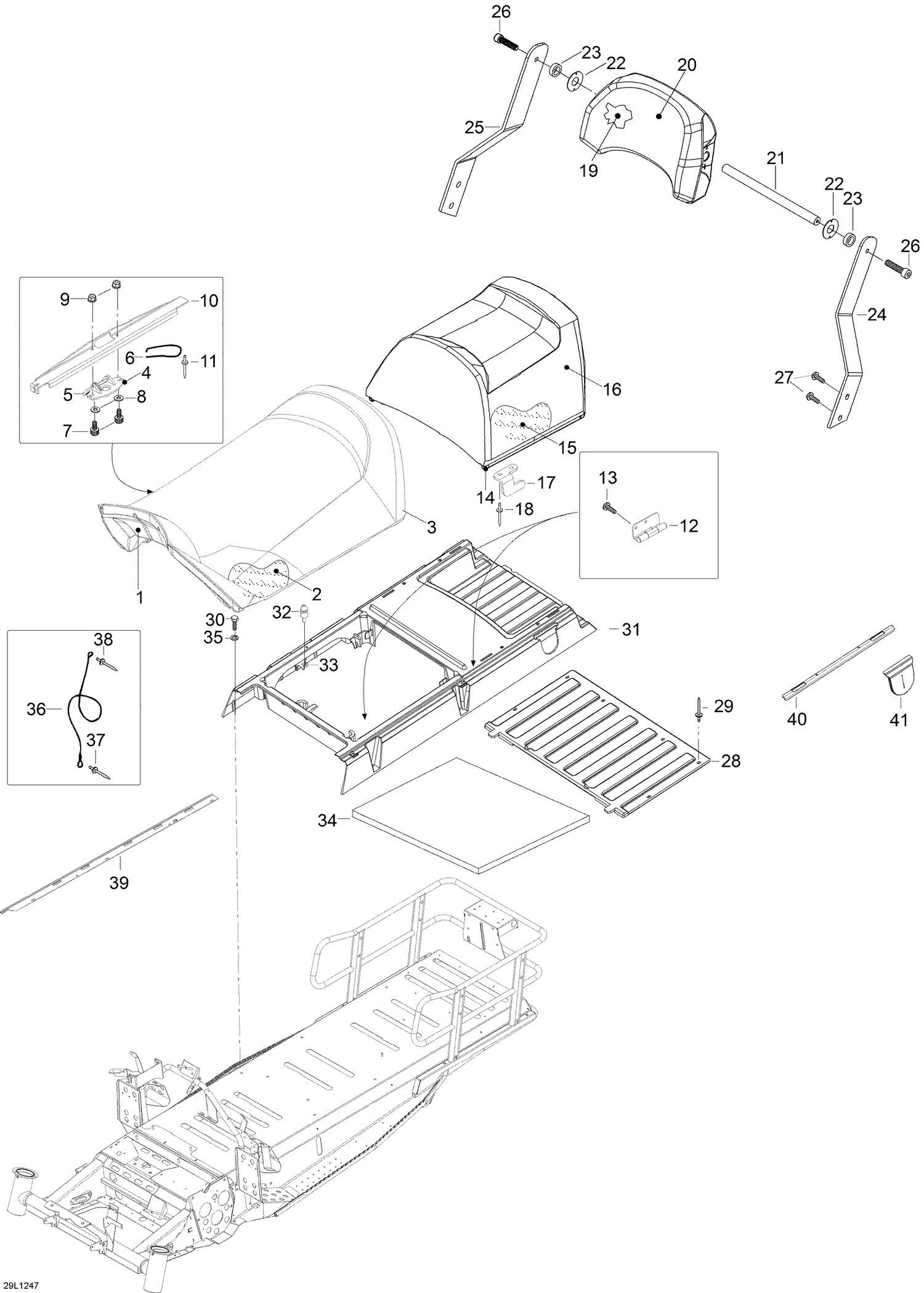

| Ref | Part Number | Description |
|---|
| 1 |
605251388 |
SEAT BASE, FRONT - Call your local BRP dealership |
| 2 |
605255689 |
Seat Foam |
| 3 |
605255152 |
Seat Cover, front |
| 4 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 5 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 6 |
269700017 |
Latch Spring |
| 7 |
40276 |
Socket head screw M6 x 25 |
| 8 |
20003 |
Washer A6,4 |
| 9 |
232561414 |
Elastic Stop Nut M6 |
| 10 |
605352483 |
SUPPORT PLATE - Call your local BRP dealership |
| 11 |
36088 |
Rivet Avibulb 4.8x8.8 Zn(1=25pcs) - Call your local BRP dealership |
| 12 |
605351798 |
Hinge |
| 13 |
40890 |
Wronic-screw 4,2 x 16 |
| 14 |
605251390 |
SEAT BASE, REAR - Call your local BRP dealership |
| 15 |
605255691 |
REAR SEAT FOAM - Call your local BRP dealership |
| 16 |
605255154 |
Seat Cover, rear |
| 17 |
605351808 |
LH HOOK - Call your local BRP dealership |
| 17 |
605352007 |
RH HOOK - Call your local BRP dealership |
| 18 |
36087 |
Rivet |
| 19 |
605356199 |
Backrest Foam |
| 20 |
605255157 |
Backrest Cover |
| 21 |
605355357 |
BACKREST AXLE - Call your local BRP dealership |
| 22 |
605355358 |
WASHER - Call your local BRP dealership |
| 23 |
510004378 |
Rubber Shim |
| 24 |
605355165 |
L.H. Side Support |
| 25 |
605355166 |
R.H. Side Support |
| 26 |
605640010 |
SCREW M10X20 - Call your local BRP dealership |
| 27 |
40316 |
Hex Sc. M8 x 20 BN73 m(1=10pcs) - Call your local BRP dealership |
| 28 |
605154593 |
TUNNEL COVER - Call your local BRP dealership |
| 29 |
36036 |
Rivet |
| 30 |
40029 |
Hex. screw M6 x 16 |
| 31 |
605255167 |
Seat box |
| 32 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 34 |
605352460 |
FOAM - Call your local BRP dealership |
| 35 |
20052 |
Lock washer |
| 36 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 37 |
36037 |
Rivet |
| 38 |
36009 |
Rivet |
| 39 |
605255762 |
RH SEAT BRACKET - Call your local BRP dealership |
| 40 |
605355816 |
REAR SEAT SUPPORT - Call your local BRP dealership |
