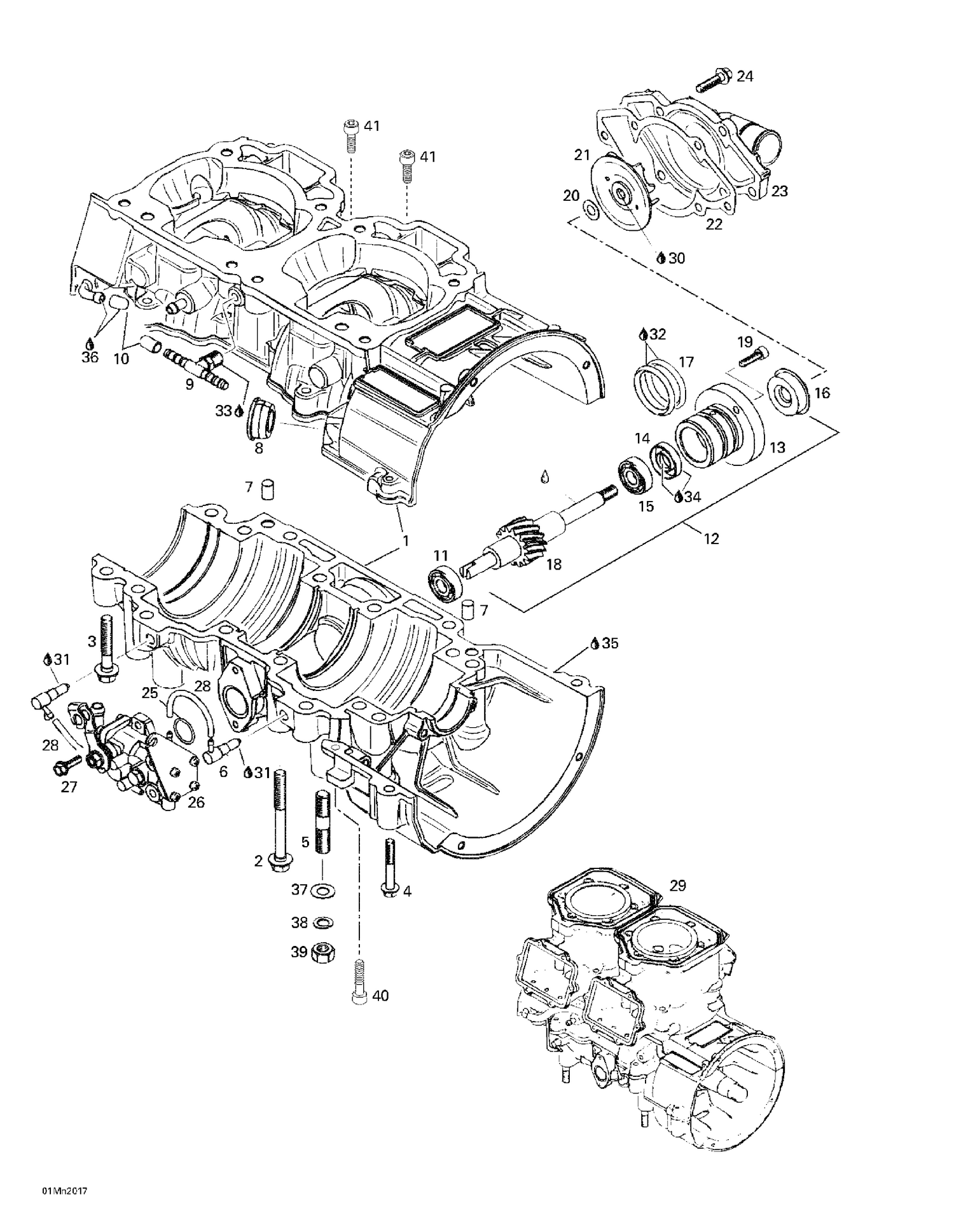

| Ref | Part Number | Description |
|---|
| 4 |
420640312 |
Allen Screw M6 x 45 This part replaces 420640311. |
| 5 |
420941644 |
Stud M10 X 23 |
| 6 |
420956511 |
Check Valve This part replaces 420956510. |
| 7 |
420632010 |
Center Pin 8 X 12 |
| 8 |
420860965 |
Cable Grommet |
| 9 |
420874360 |
T-Fitting |
| 10 |
420960770 |
Cap |
| 11 |
420232100 |
Ball Bearing |
| 13 |
Not |
Available As Spare Part - Step Collar |
| 14 |
420230195 |
Oil Seal |
| 15 |
420232100 |
Ball Bearing |
| 16 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 17 |
420950890 |
O-Ring |
| 18 |
Not |
Available As Spare Part - Water Pump/Oil Pump Shaft |
| 19 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 20 |
420227945 |
Thrust Washer |
| 21 |
420222505 |
Water Impeller |
| 22 |
420931811 |
Gasket This part replaces 420931810. |
| 23 |
420922630 |
Water Pump Housing |
| 24 |
420240034 |
Hex. Screw M6 X 25 This part replaces 420240031. |
| 25 |
293300041 |
O-Ring This part replaces 420230400. |
| 26 |
420888265 |
Oil Pump Ass'y |
| 27 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 28 |
219704404 |
Oil Hose 1500Mm Long |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 32 |
413707000 |
Dow Corning 111, 150 g |
| 33 |
Not |
Available As Spare Part - Sikaflex 255, 310 ml |
| 34 |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 35 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297905. |
| 36 |
293550021 |
Isoflex Grease, TOPAS NB52, 50 g |
| 37 |
234001410 |
Flat Washer 10 mm |
| 38 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 39 |
232006414 |
Hex. Nut M10 X 1.5 |
