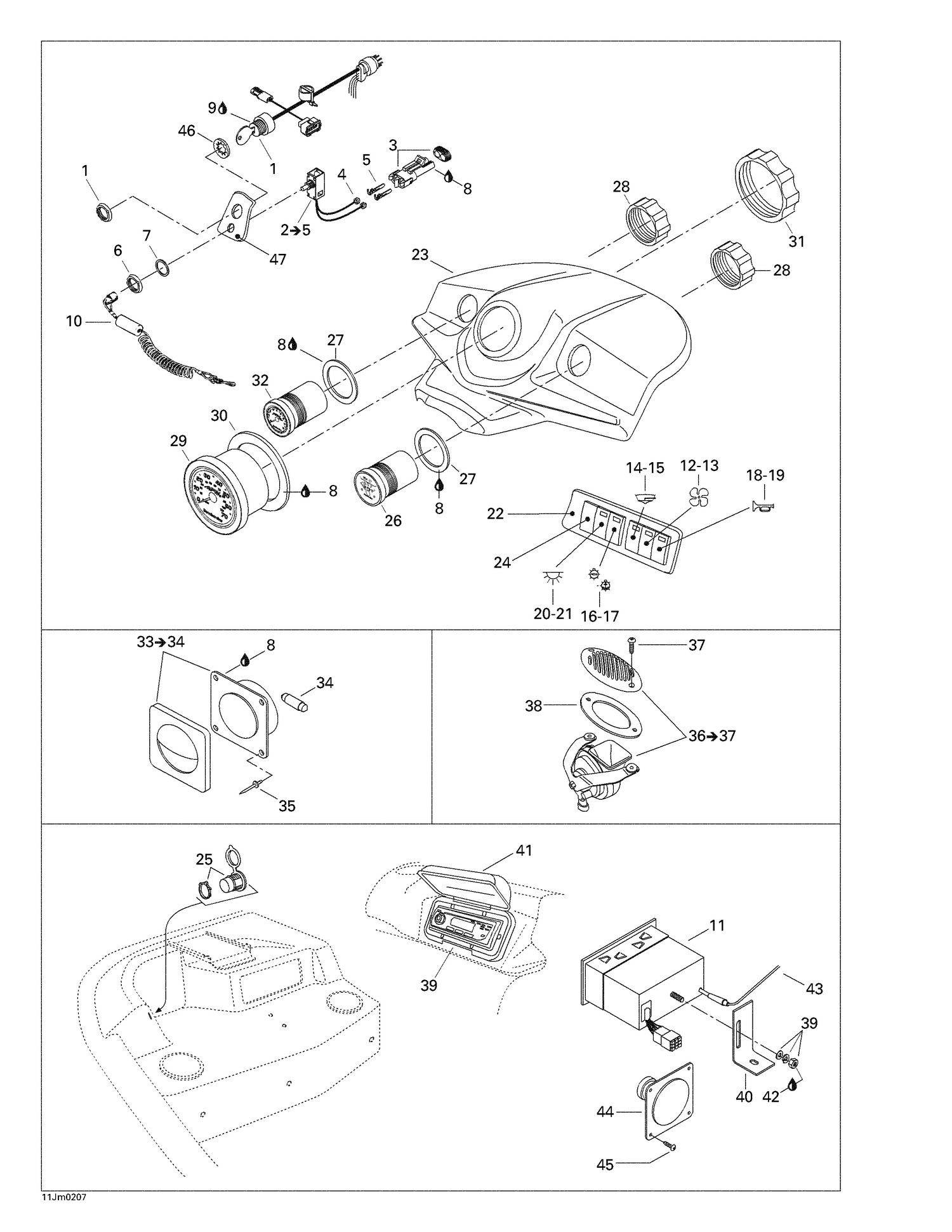

10- Electrical Accessories 1
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204470630 | Instrumentation Harness |
| 3 | 278000220 | Male Connector, 2 Circuits |
| 4 | 278000218 | Wire Seal |
| 5 | 278000223 | Female Terminal |
| 6 | 278000099 | Safety Switch Nut |
| 7 | 204100027 | FLAT WASHER - Call your local BRP dealership |
| 8 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 9 | 219704457 | ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 10 | 278001431 | Safety Lanyard This part replaces 204470464. |
| 11 | 204470647 | Radio Trim |
| 13 | 204470132 | Gasket |
| 15 | 204470132 | Gasket |
| 17 | 204470132 | Gasket |
| 19 | 204470132 | Gasket |
| 21 | 204470132 | Gasket |
| 22 | 204470623 | Switch Plate (Starboard) |
| 23 | 204470608 | Dashboard |
| 24 | 204470596 | SWITCH PLUG - Call your local BRP dealership |
| 25 | 710001248 | DC Outlet This part replaces 204470716. |
| 26 | 204470604 | Oil/Fuel Gauge 52 mm |
| 27 | 204470308 | Gasket |
| 28 | 204470146 | Gauge Nut |
| 29 | 204470605 | Speedometer Gauge 85 mm |
| 30 | 204470309 | Gasket |
| 31 | 204470171 | Gauge Nut |
| 32 | 204470606 | TACHOMETER - Call your local BRP dealership |
| 34 | 204470081 | BULB - Call your local BRP dealership |
| 35 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 37 | 211000100 | SCREW-RD.HD.PH. - Call your local BRP dealership |
| 38 | 293250108 | Horn Gasket |
| 39 | 204470682 | Compact Disc Radio |
| 40 | 204470683 | Radio Support |
| 41 | 204470535 | Radio Cover |
| 42 | 293800060 | Loctite 243, 10 ml |
| 43 | 204470380 | Antenna |
| 44 | 204470378 | Speaker |
| 45 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 46 | 204100085 | Internal Tooth Lock Washer 1" |
