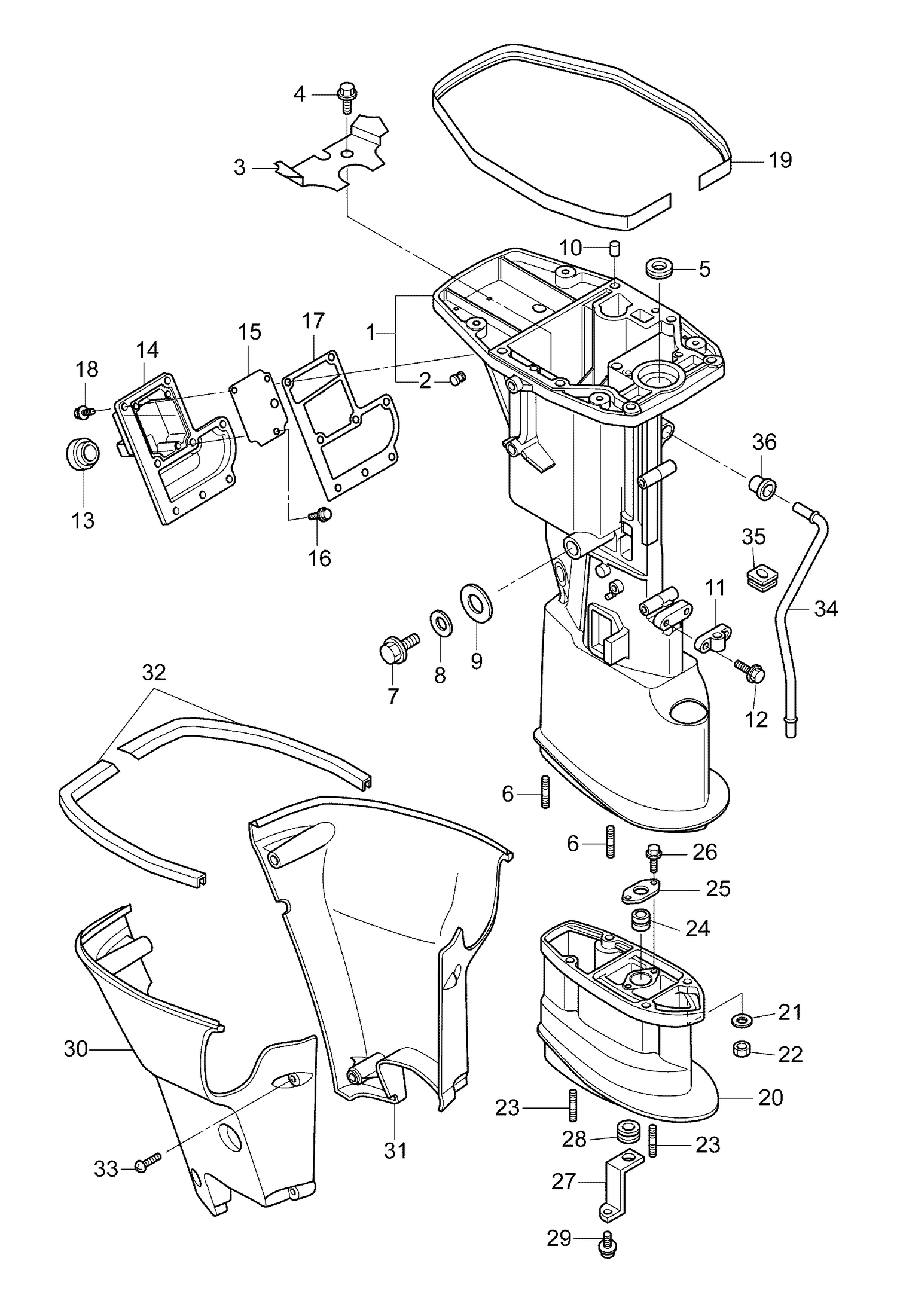

16-0_DRIVESHAFT HOUSING
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 5041465 | GUIDE PLATE |
| 4 | 5041557 | BOULON This part replaces 5041530. |
| 5 | 5040089 | OIL SEAL 12.8-25-7 |
| 6 | 5040670 | STUD |
| 7 | 5041202 | DRAIN BOLT |
| 8 | 5041203 | WASHER |
| 9 | 5041229 | Grommet Oil Drain |
| 11 | 5041463 | CAM ROD HOLDER |
| 13 | 5040671 | IDLE EXHAUST PORT GROMMET |
| 14 | 5041855 | IDLE EXHAUST PORT COVER |
| 15 | 5040676 | Plate Idle Exhaust Port |
| 16 | 5041545 | BOLT |
| 17 | 5040672 | IDLE EXHAUST PORT GASKET |
| 18 | 5041572 | BOLT |
| 19 | 5041230 | ENGINE BASEMENT SEAL |
| 32 | 5041208 | Seal Rubber Apron |
| 33 | 5041145 | TAPPING SCREW 6-60 |
| 35 | 5041219 | WATER PIPE AUXILIARY MOUNT |
