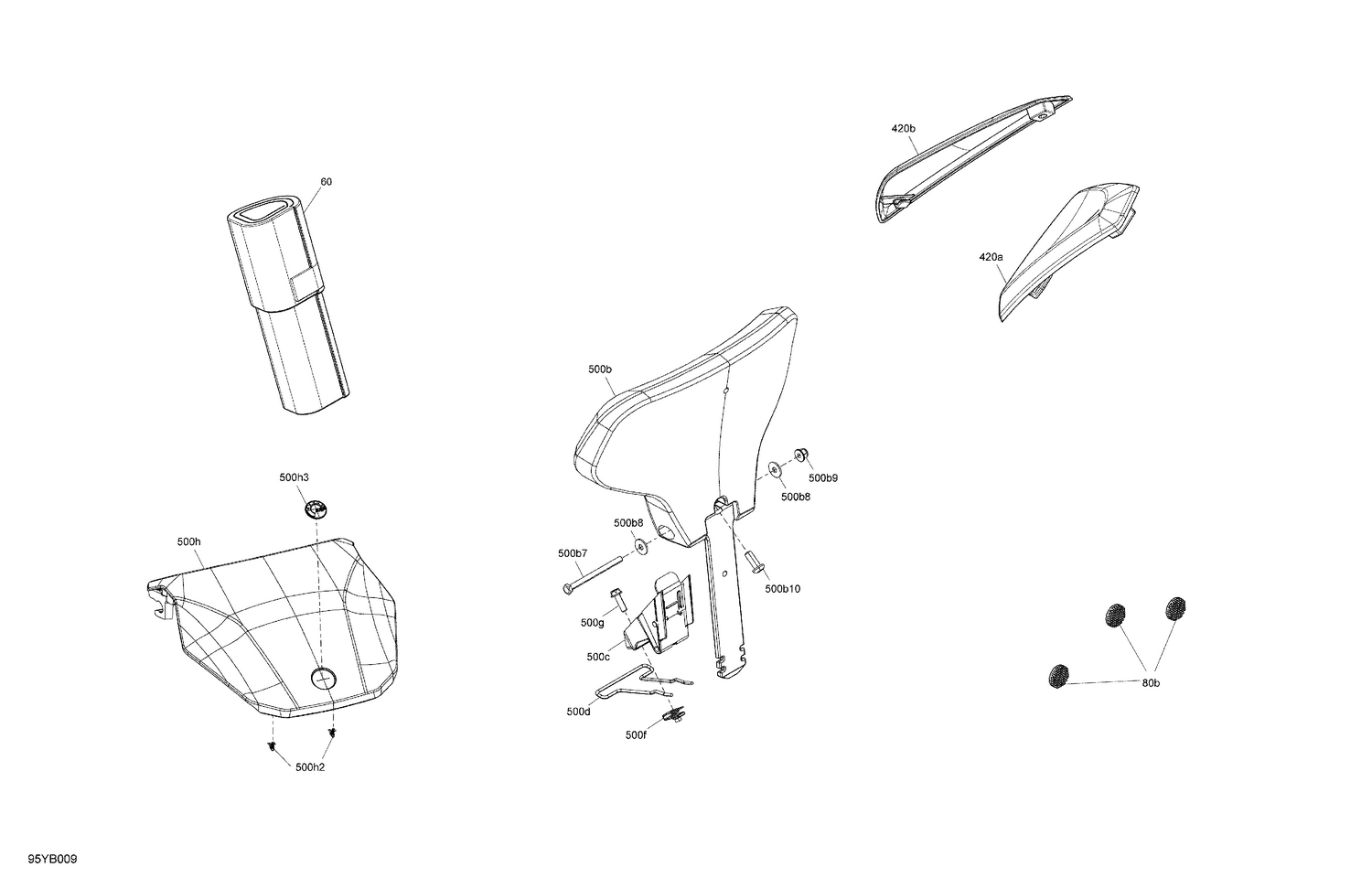

09- Miscellaneous - Utilities
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 704700178 | Tool Kit |
| 80b | 293740028 | Dual Lock Velcro Washer 3/4" |
| 420a | 705007411 | Black Deep, LH Windshield Cap |
| 420b | 705007412 | Black Deep, RH Windshield Cap |
| 500b10 | 250000885 | Head Screw M8 x 20 |
| 500b7 | 207068060 | Hex. Screw M6 x 80 |
| 500b8 | 234062600 | Flat Washer M6, Stainless |
| 500b9 | 233261494 | Hex. Flange Elastic Nut M6 |
| 500c | 708001678 | Backrest Slider |
| 500d | 708003188 | Latch Rod |
| 500f | 250100198 | Panel Nut M6 X 1.0 |
| 500g | 210262050 | Hexagonal Head Screw |
| 500h2 | 517302785 | Edge Clip |
