Home / BRP / Can-Am ATV / 2011 / Outlander / Outlander 800R EFI, 2011 0002HBD00 0002HBE00 0002JBA00 0002JBB00 0002JBC00 0002JBD00 0005EBA00 0005EBB00 0005EBC00 0005EBD00 / 01- Gear Box And Components

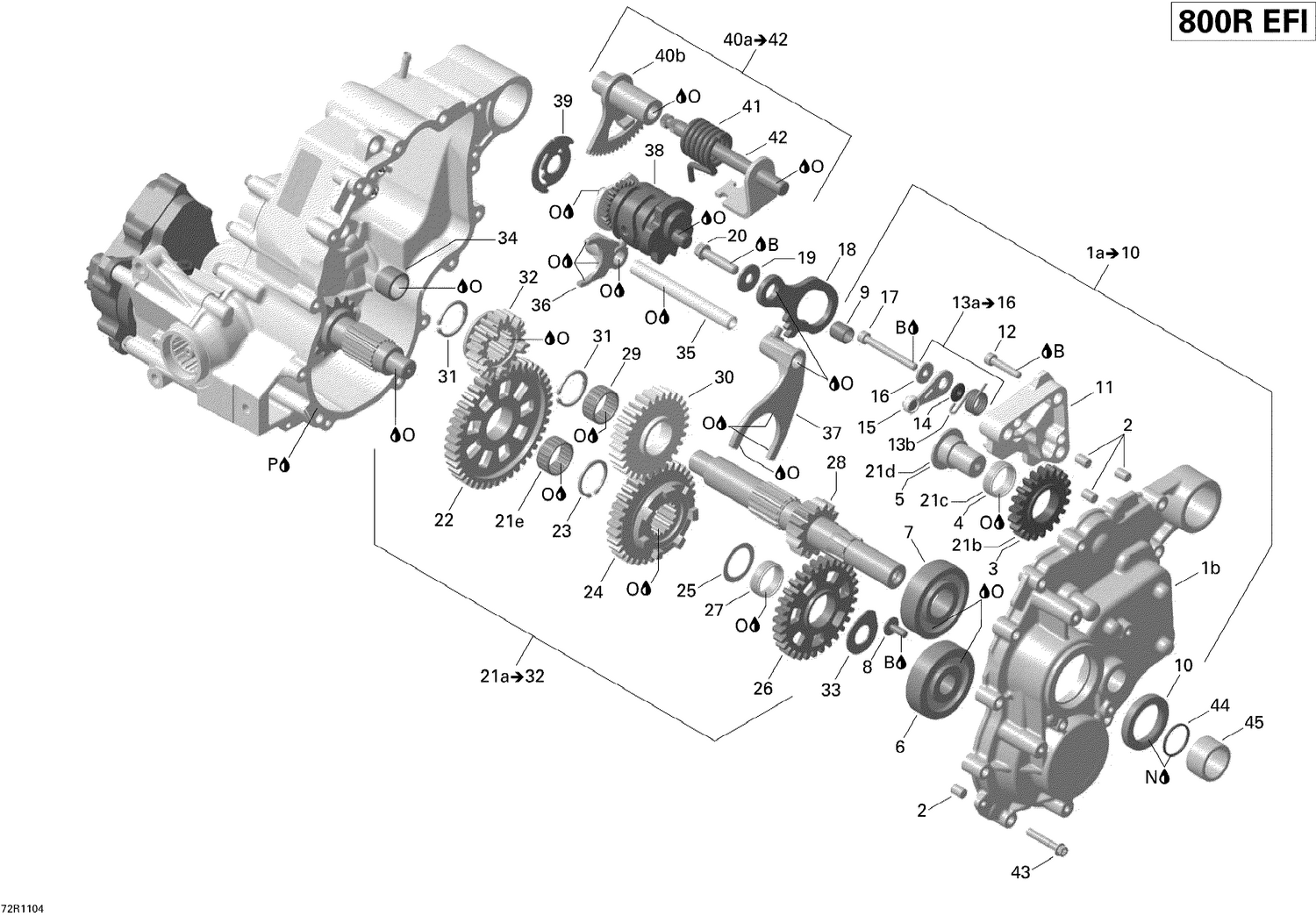

01- Gear Box And Components

01- Gear Box And Components

Parts (51)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
N 293550030 Grease, Super Lube
O XXX Not Available As Spare Parts
1b XXX Not Available As Spare Parts
2 420632010 Center Pin 8 X 12
3 XXX Not Available As Spare Parts
4 420232654 Needle Bearing This part replaces 420232652.
5 XXX Not Available As Spare Parts
6 420632295 Ball Bearing This part replaces 420632290.
7 420932822 Ball Bearing This part replaces 420932825.
8 420241522 Torx Screw M6 X 16 This part replaces 420241529.
9 XXX Not Available As Spare Parts
10 420950089 Oil Seal This part replaces 420950087.
11 420611451 Support This part replaces 420611450.
12 205063044 Socket Head Screw M6 X 30
13b XXX Not Available As Spare Parts
14 XXX Not Available As Spare Parts
15 XXX Not Available As Spare Parts
16 XXX Not Available As Spare Parts
17 420240332 Allen Screw M6 X 55 This part replaces 420240331.
18 703501128 Kit Parking Lock Lever Assembly This part replaces 420257652.
19 420227937 Plain Washer
20 420641188 Torx Flange Screw M8 X 35
21b XXX Not Available As Spare Parts
21c 420232654 Needle Bearing This part replaces 420232652.
21d XXX Not Available As Spare Parts
21e 420632070 Needle Bearing
22 XXX Not Available As Spare Parts
23 420845772 Retaining Ring This part replaces 420845771.
24 XXX Not Available As Spare Parts
25 420427011 Thrust Washer This part replaces 420944479.
26 XXX Not Available As Spare Parts
27 420232654 Needle Bearing This part replaces 420232652.
28 XXX Not Available As Spare Parts
29 420632070 Needle Bearing
30 XXX Not Available As Spare Parts
31 420845772 Retaining Ring This part replaces 420845771.
32 XXX Not Available As Spare Parts
33 420281302 Thrust Washer Set, CVT Side This part replaces 420281308.
34 420832240 Needle Bushing
35 420258383 Fork Spindle
36 420657311 Shifting Fork This part replaces 420257611.
37 420657321 Shifting Fork This part replaces 420257621.
38 703501128 Kit Parking Lock Lever Assembly This part replaces 420257578.
39 420626092 Isolating Washer This part replaces 420626091.
40b XXX Not Available As Spare Parts
41 XXX Not Available As Spare Parts
42 XXX Not Available As Spare Parts
43 420641258 Torx Flange Screw M6 X 35
44 420631612 O-Ring This part replaces 420631610.
45 420247118 Distance Ring This part replaces 420247117.
