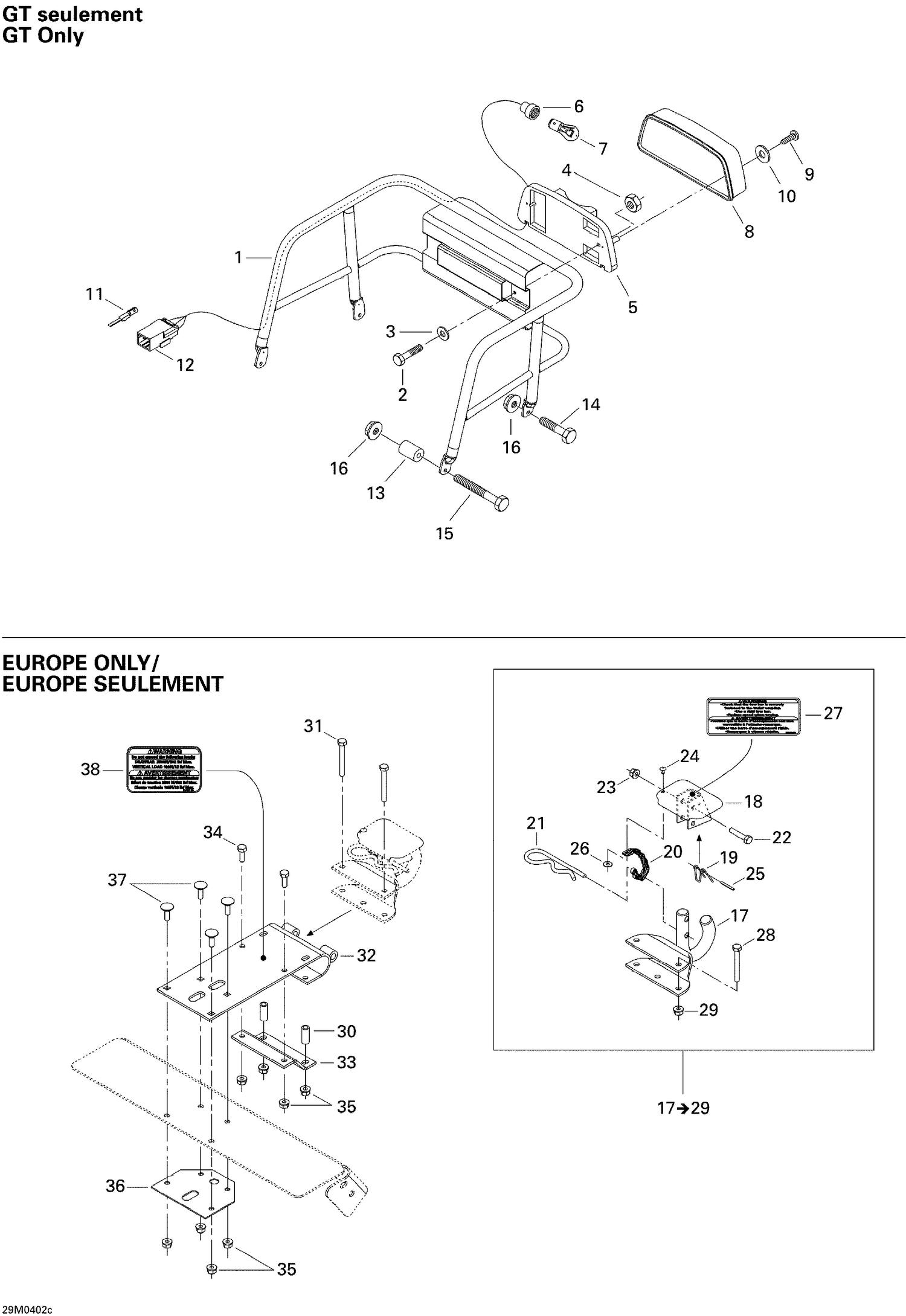

| Ref | Part Number | Description |
|---|
| 17 |
517199300 |
Hitch |
| 18 |
517152700 |
Hitch Protector |
| 19 |
517152800 |
SPRING - Call your local BRP dealership |
| 20 |
Not |
Available As Spare Part - Chain |
| 21 |
114045200 |
Hair Pin |
| 22 |
207063044 |
Hex. Screw M6 X 30 |
| 23 |
232561414 |
Elastic Stop Nut M6 |
| 24 |
390409400 |
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 25 |
732804000 |
SPRING PIN M3 X 24 - Call your local BRP dealership |
| 26 |
Not |
Available As Spare Part - Flat Washer |
| 27 |
516001243 |
Security Label, Hitch |
| 28 |
207065044 |
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
517191700 |
SPACER - Call your local BRP dealership |
| 31 |
207065044 |
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership |
| 32 |
511000019 |
Support |
| 33 |
511000022 |
REINFORCEMENT - Call your local BRP dealership |
| 34 |
207161844 |
Hex. Screw M6 X 18 |
| 35 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 36 |
517256100 |
Inner Plate |
| 37 |
207762044 |
Carriage Bolt M6 X 20 |
