Home / BRP / Can-Am ATV / 2024 / 003 - ATV - North America - Outlander Series / 003 - Outlander 850 EFI 4X4 - North America, 2024 / North America - Outlander 850 EFI 4X4 - 4KRA - X MR Package - Legion Red, 2024 0004KRA00 / 07- Body - Mudguard

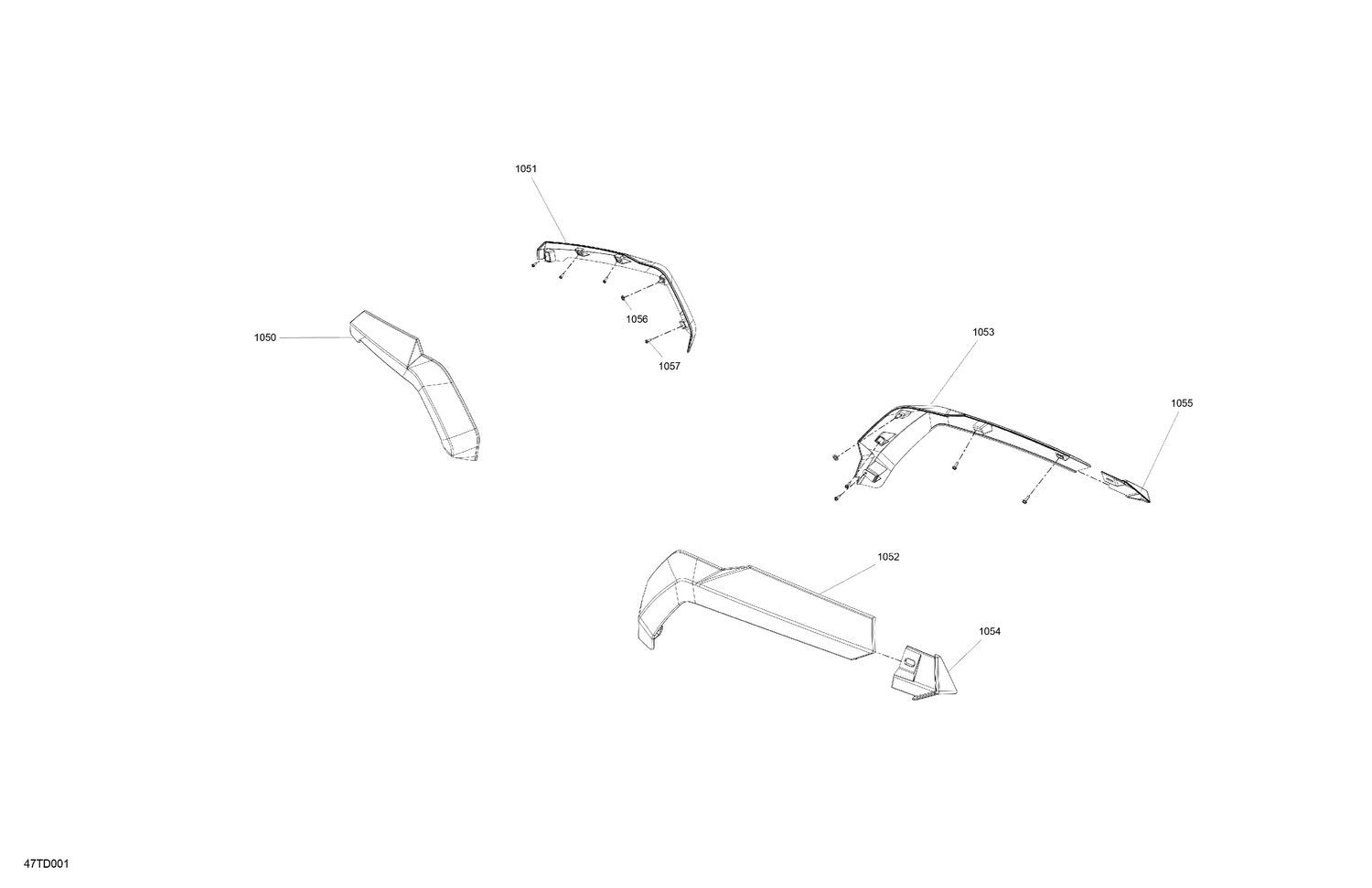

07- Body - Mudguard

07- Body - Mudguard

Parts (7)

RefPart NumberDescription
1050 705006988 LH Mud Guard
1051 705006989 RH Mud Guard
1052 705003918 LH Rear Mudguard
1053 705003920 RH Rear Mudguard
1054 705004888 LH Mudgard Cap
1055 705004889 RH Mudgard Cap
1056 732610072 Push Nut
