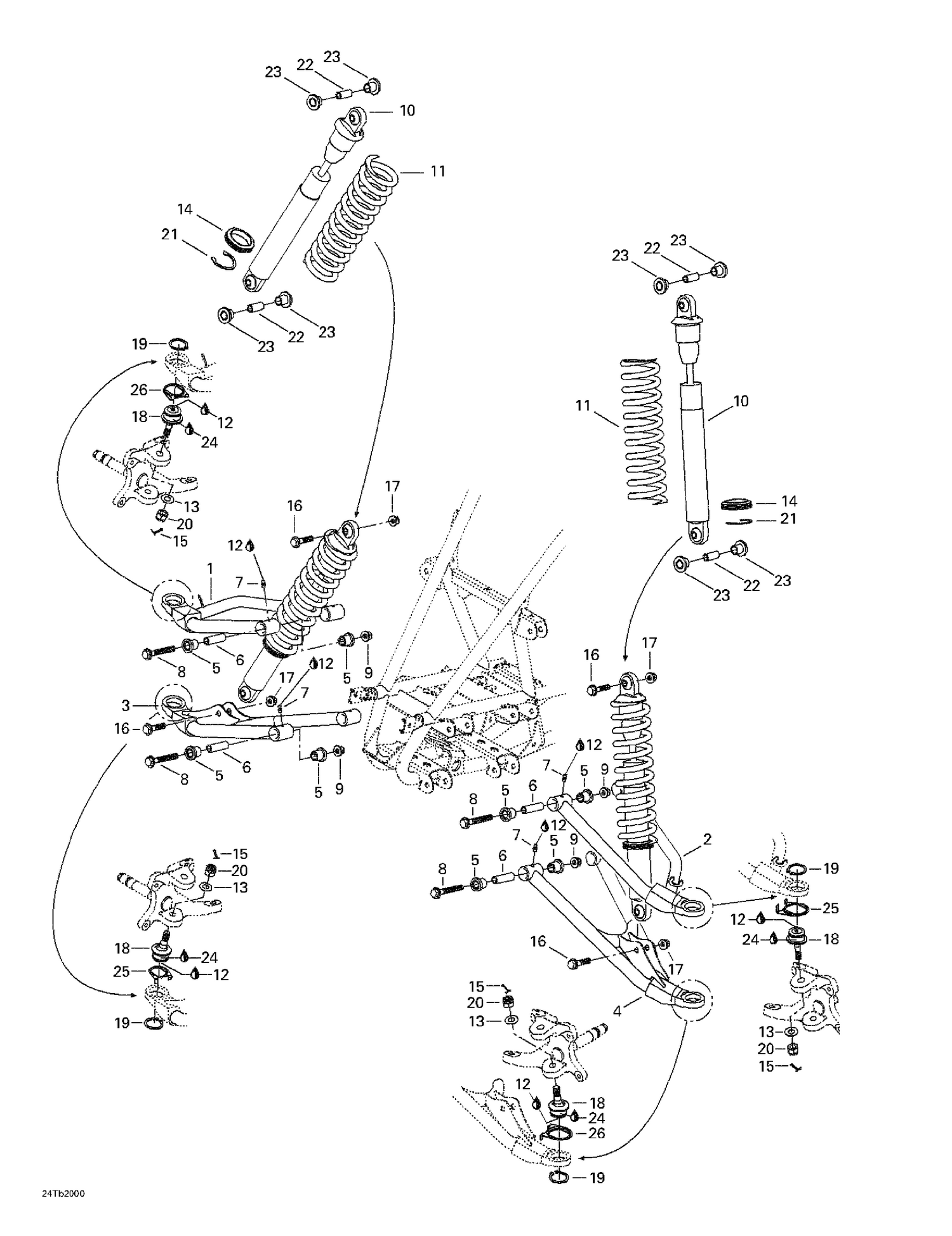

07- Front Suspension
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706200121 | RH Upper Arm |
| 2 | 706200122 | LH Upper Arm |
| 3 | 706200123 | RH Lower Arm |
| 4 | 706200124 | LH Lower Arm |
| 5 | 706200063 | Cushion |
| 6 | 706200061 | Internal Bushing |
| 7 | 408200700 | Grease Fitting |
| 8 | 207607546 | Hex. Flange Screw M10 X 75 |
| 9 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 10 | 706200081 | FRONT SHOCK - Call your local BRP dealership |
| 11 | 706200082 | Front Spring |
| 12 | 293550010 | Synthetic Grease, 400 G |
| 13 | 503175400 | Hardened Washer |
| 14 | 706200085 | Spring Seat |
| 15 | 211400017 | Cotter Pin |
| 16 | 207605044 | Hex. Flange Screw M10 X 50 |
| 17 | 233201414 | Hex. Flange Elastic Nut M10 |
| 18 | 703500082 | Ball Joint |
| 19 | 293370017 | Circlip |
| 20 | 232221414 | Hex. Castellated Nut M12 |
| 21 | 706200138 | RING HOLDER - Call your local BRP dealership |
| 22 | 706200097 | Bushing |
| 23 | 706200099 | CUSHION - Call your local BRP dealership |
| 24 | 413703100 | Loctite 609, 10 ml |
| 25 | 706200142 | Tab Lock (Lower RH/Upper LH) |
