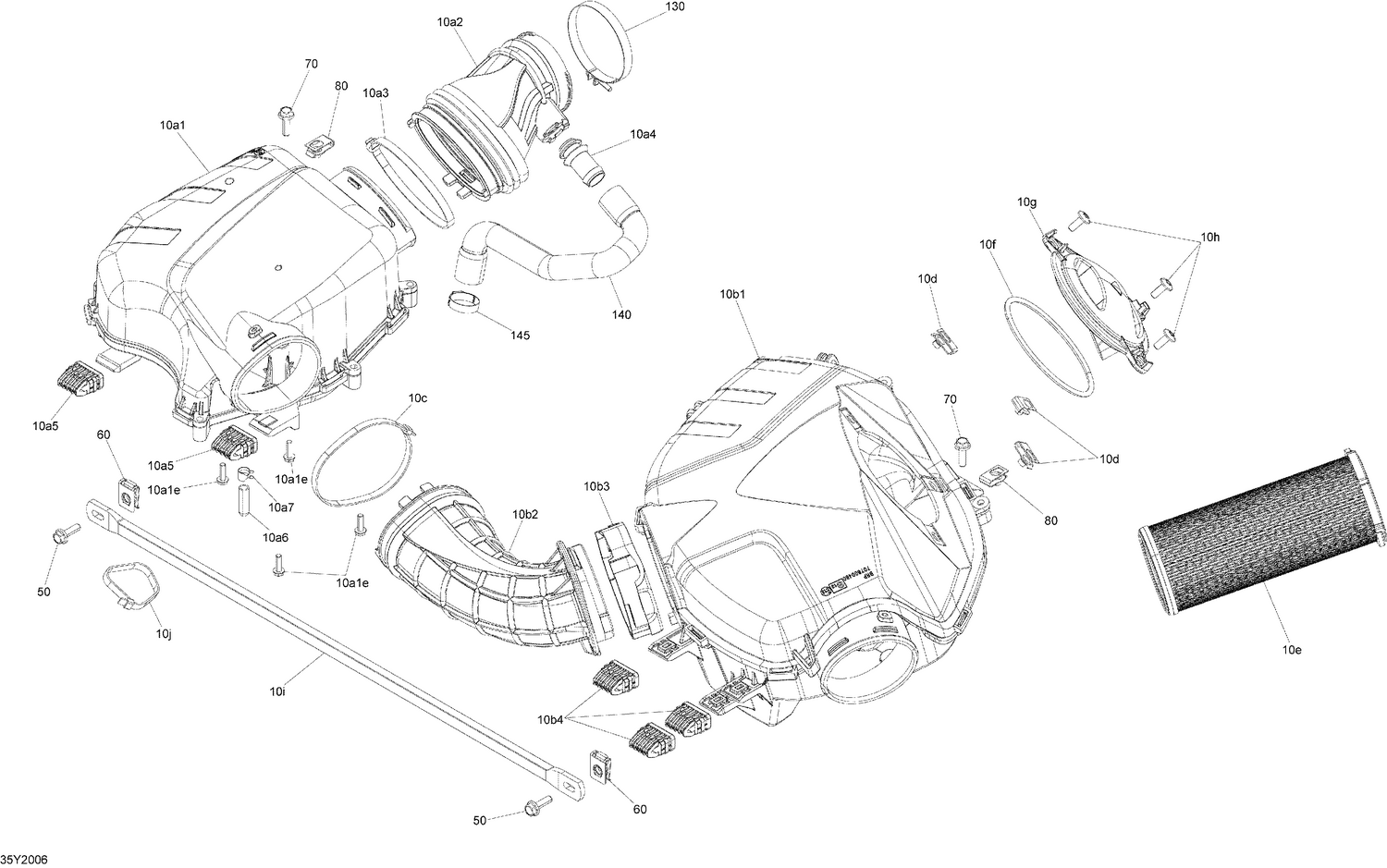

02- Air Intake
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 707800488 | RH Air Intake Silencer |
| 10a1e | 243141680 | Hex. Screw M4.8 X 1.8 |
| 10a2 | 707800388 | Air Intake Adaptor |
| 10a3 | 509000165 | Tie Rap |
| 10a4 | 273000234 | Breather Valve |
| 10a5 | 707800452 | Rubber Stopper |
| 10a6 | 293000105 | Cap Plug |
| 10a7 | 414554800 | Spring Clamp |
| 10b1 | 707800489 | LH Air Intake Silencer |
| 10b2 | 707800485 | Intake Adaptor |
| 10b3 | 707800525 | Ring |
| 10b4 | 707800452 | Rubber Stopper |
| 10c | 509000165 | Tie Rap |
| 10d | 250100198 | Panel Nut M6 X 1.0 |
| 10e | 707800483 | Air Filter |
| 10f | 707800455 | O-ring This part replaces 707800831. |
| 10g | 707800484 | Cap |
| 10h | 250000348 | Torx Truss Screw M6 X 16 |
| 10i | 707800432 | Link Rod |
| 10j | 509000165 | Tie Rap |
| 50 | 207662044 | Hex. Flange Screw M6 X 20 |
| 60 | 250100208 | Panel Nut M6 X 1.0 |
| 70 | 207662044 | Hex. Flange Screw M6 X 20 |
| 80 | 250100198 | Panel Nut M6 X 1.0 |
| 130 | 508000346 | Gemi Clamp |
| 140 | 707800824 | Formed Hose |
