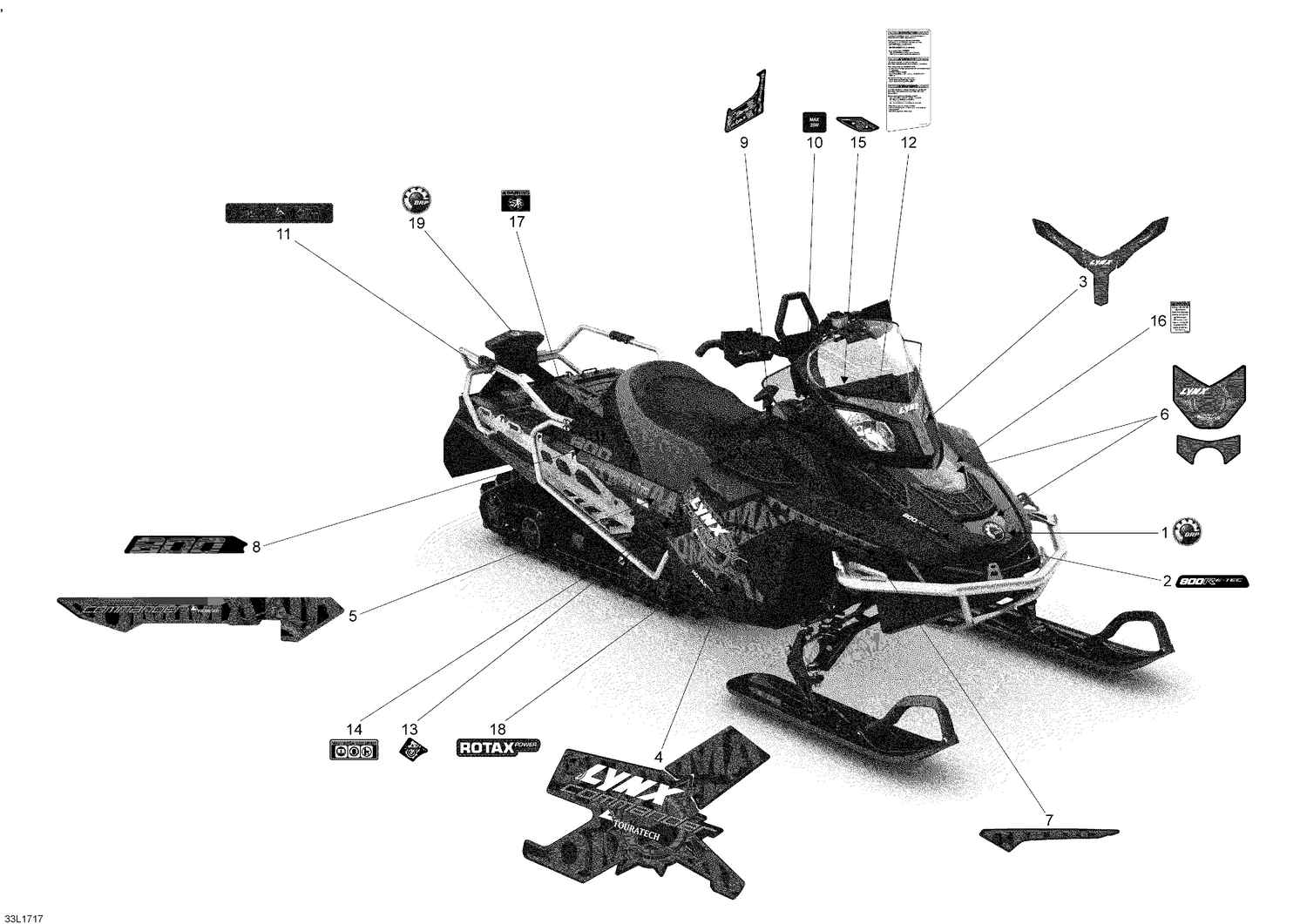

09- Decals 800 ETEC
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516007157 | Rotax 800R E-TEC Hood Decal |
| 3 | 516007432 | Front Light Cover Decal |
| 4 | 516007401 | LH Side Panel Decal |
| 4 | 516007402 | RH Side Panel Decal |
| 5 | 516007403 | LH Frame Decal |
| 5 | 516007404 | RH Frame Decal |
| 6 | 516007414 | Hood Decal |
| 7 | 516007399 | LH Bottom Pan Decal |
| 7 | 516007400 | RH Bottom Pan Decal |
| 8 | 516007140 | LH Storage Box Decal |
| 8 | 516007141 | RH Storage Box Decal |
| 9 | 516004294 | Instruction Decal |
| 10 | 516003918 | Power Outlet Decal (25W) |
| 11 | 516003886 | WARNING DECAL, TOWING - Call your local BRP dealership |
| 12 | 516006403 | Instruction/Warning Decal, FI/SWE/EN |
| 13 | 516003925 | Checking Label, Transmission |
| 14 | 516002703 | Decal, Europe |
| 16 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 17 | 516007584 | Warning Decal |
| 18 | 516006331 | Rotax Power Decal |
| 19 | 516008738 | Logo 48mm "BRP" This part replaces 516006887. |
