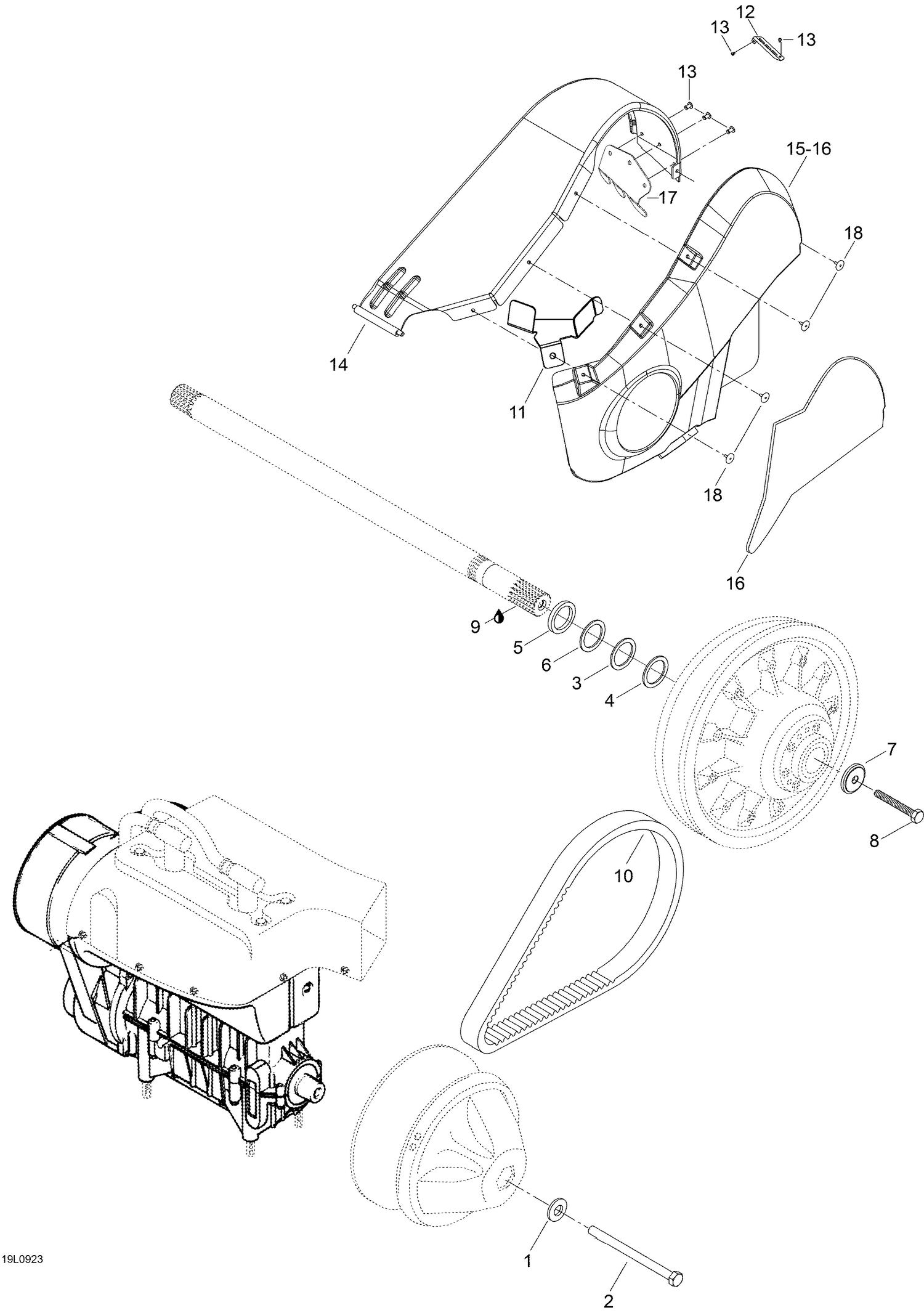

05- Pulley System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20090 | Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 2 | 417113800 | BOLT - Call your local BRP dealership |
| 3 | 417300252 | Spacer |
| 4 | 417300265 | Spacer |
| 5 | 504149100 | Spacer |
| 6 | 504112000 | Shim |
| 7 | 517302322 | Washer |
| 8 | 40089 | M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 9 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 10 | 415060600 | Drive belt |
| 11 | 605353789 | Support, air intake silencer |
| 12 | 518323105 | PLATE, BLACK - Call your local BRP dealership |
| 13 | 36108 | Rivet |
| 14 | 417300269 | BELT GUARD - Call your local BRP dealership |
| 16 | 417300246 | Foam |
| 17 | 605453799 | Bracket |
