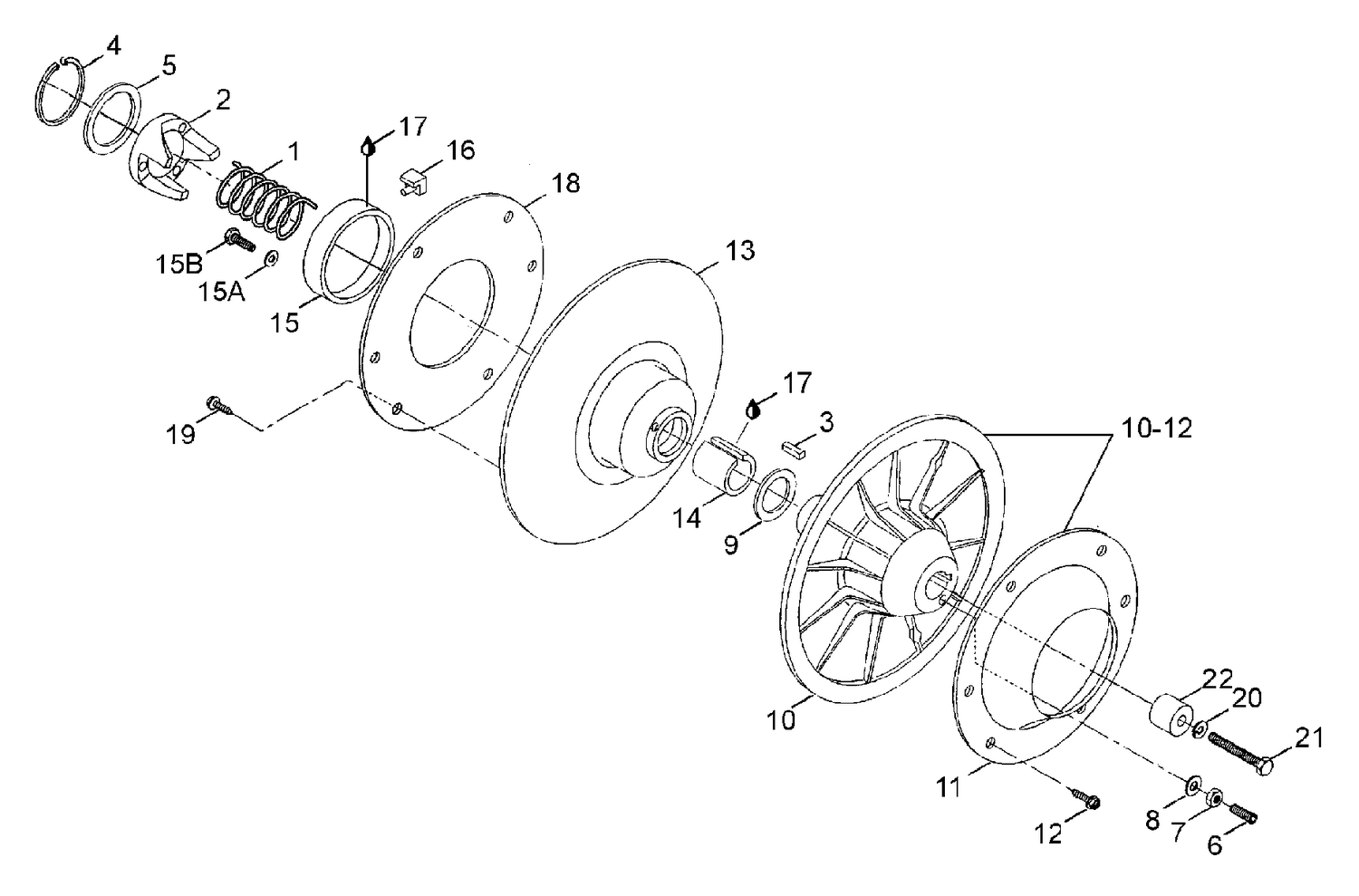

05- Driven Pulley
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414558900 | RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 2 | 417126343 | Cam 50 degr. |
| 3 | 414820800 | Key |
| 4 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 5 | 504141800 | Washer |
| 6 | 206263044 | Screw |
| 7 | 232061414 | Nut |
| 8 | 420245370 | WASHER - Call your local BRP dealership |
| 9 | 504141900 | Thrust washer |
| 10 | 504141600 | Fixed half pulley |
| 11 | 504142000 | CUP - Call your local BRP dealership |
| 12 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 14 | 415011200 | BUSHING - Call your local BRP dealership |
| 15 | 414876600 | GARLOCK BUSHING - Call your local BRP dealership |
| 15A | 399910000 | Washer |
| 15B | 732600022 | SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership |
| 16 | 414918000 | CAM SLIDER SHOE - Call your local BRP dealership |
| 17 | 413703100 | Loctite 609 10cc |
| 18 | 504142100 | Ring |
| 19 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 20 | 20014 | Washer |
| 21 | 40009 | Screw M8x50 |
