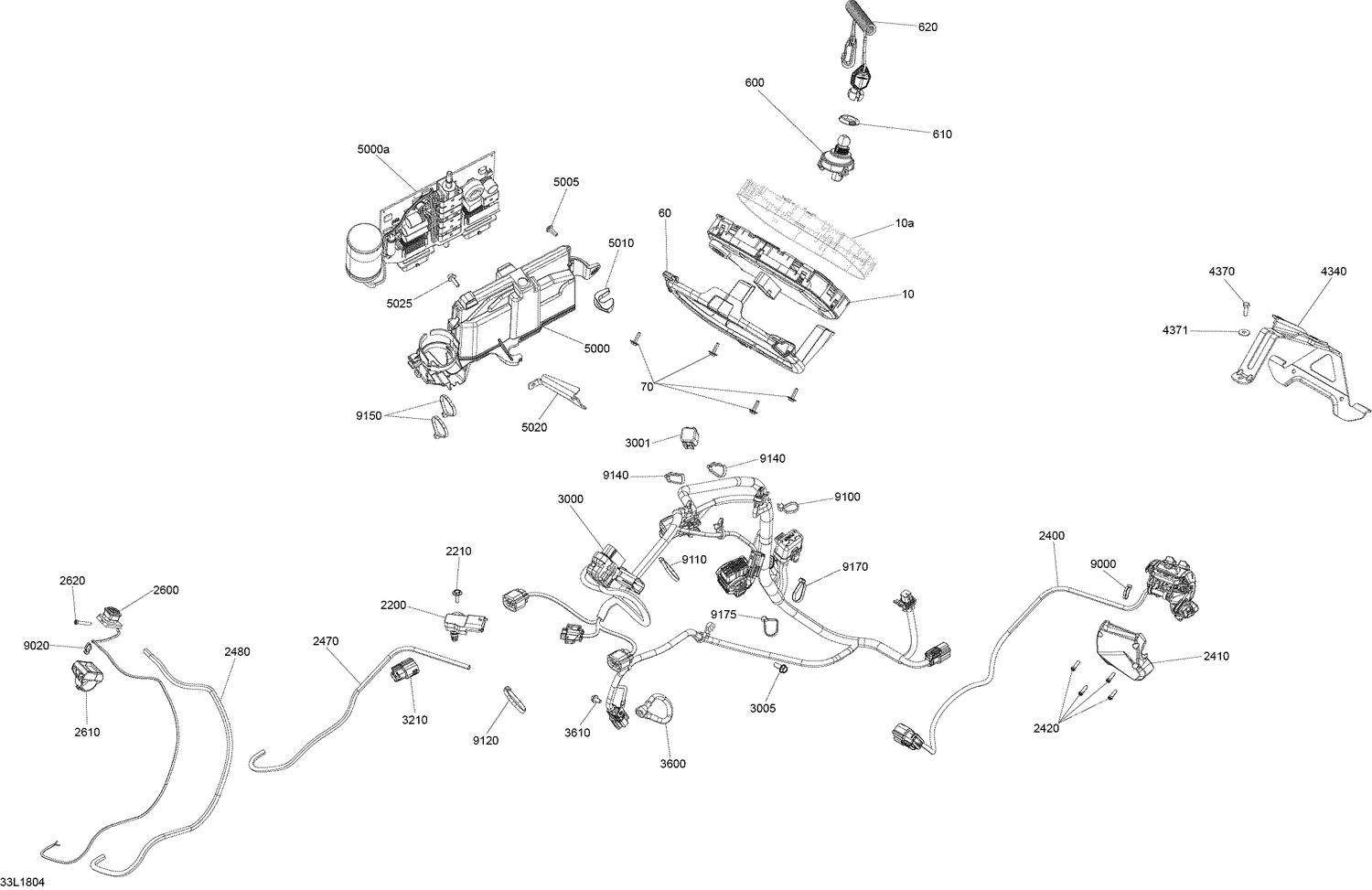

10- Electrical System Rave - 850 E-TEC Manual Starter
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 415129349 | Class och tätning |
| 60 | 515177866 | Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2400 | 515178196 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3000 | 515178368 | WIRING HARNESS - Call your local BRP dealership |
| 3001 | 515178435 | Diagnostic Cap |
| 3005 | 250000936 | Hex. Flanged Screw M6 X 16 |
| 3600 | 515178248 | Ground Wire |
| 3610 | 207551044 | Hex. Flange Screw M5 X 10 |
| 4340 | 515177870 | Battery Strip |
| 4370 | 207151644 | Hex. Screw M5 X 16 |
| 4371 | 391301600 | Washer |
| 5000a | 515177272 | Capacitor |
| 5005 | 250000742 | Torx Screw M5 X 14 |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178159 | Module Support |
| 5025 | 207651646 | Hex. Flange Screw M5 X 16 |
| 9000 | 293750002 | Tie-Rap 142 mm |
| 9020 | 293750002 | Tie-Rap 142 mm |
| 9100 | 414115200 | Tie-Rap 180 mm |
| 9110 | 414115200 | Tie-Rap 180 mm |
| 9120 | 414115200 | Tie-Rap 180 mm |
| 9140 | 414115200 | Tie-Rap 180 mm |
| 9150 | 293750008 | Tie-Rap 368 mm |
| 9170 | 414115200 | Tie-Rap 180 mm |
